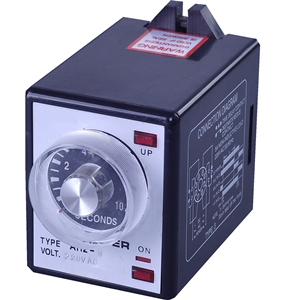

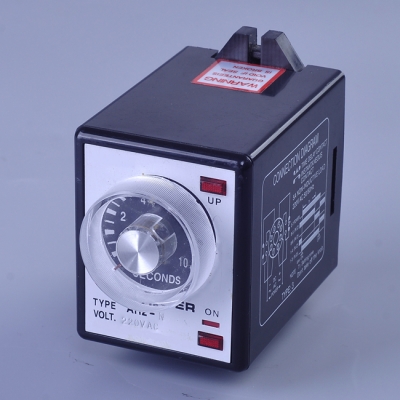

Weekly Timer Time Relay
Item : AH2-N
Weekly Timer Time Relay
Details :Timer switch, time relay,timer relay,timing switch,weekly timer,electric timer,din rail mounting timer,timer relay switch,automatically off switch
| CLASSIFICATION | TIMER | |||
| MODEL | AH2-N | |||
| DIMENSIONS | 61H×49W×70D | |||
| MOUNTING& SOCKET | SURFACE(-N) | PF083A(E)PS-08 | ||
| FLUSH(-Y) | ||||
| FULL TIMING RANGE | SEC:1,3,6,10,12,30,60 MIN:3,6,12,30,60 HR:3,6,12,24 | |||
| RATED VOLTAGE | DC(V):12,24 AC(V):12,24,110,220,240,50/60Hz | |||
| INDICATOR OPERATING | ON-UP Two indicator Lamp | |||
| O/P CONTACT | MODEL | AH2-N1/AH2-Y1 | AH2-N2/AH2-Y2 | AH2-N/AH2-Y |
| TIME LIMIT 1C | 5A | 5A | ||
| TIME LIMIT 2C | 5A | |||
| INSTANTENOUS 1C | 5A | |||
| LIFE | MECHANICAL | 5×106 times | ||
| ELECTRICAL | 105 times | |||
| ACCURACY | REPEA TERROR | ±1﹪max | ||
| SETTING ERROR | ±10﹪max | |||
| VOLTAGE ERROR | ±1﹪max | |||
| TEMP ERROR | ±2﹪max | |||
| RESET TIME | 0.1sec max | |||
| CONSUMED POWER | 3VA | |||
| AMBIENT TEMPERATURE | ﹣10℃～﹢55℃ | |||
| AMBIENT HUMINITY | 48～85﹪RH | |||
| WEIGHT | 220g | |||

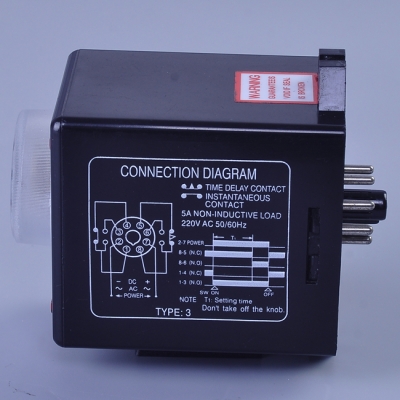

| CONNECTION DIAGRAMS & TIMING CHART | 33D | 33E | 33F | |
