Item: VD4

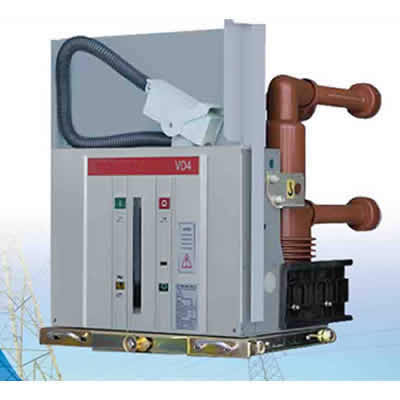

Medium voltage 24kv 4000a Vacuum circuit breaker drawable
     VD4 medium-voltage indoor vacuum circuit breaker is applicableforthree-phase  AC power system of rated voltage upto 7.2kV~24kV andfrequency 50/60HZ,widely used in manyfields such as power plant, transformer substation, petrol chemical industry , metallurgy , manufacturing industry , airport, residential area, etc., to control and protectthe electric equipment, especially , It is usedforthe occasionthat needs infrequent operation at rated current or multi-breaking short circuit current, may be mounted inthe indoor air insulating switchgear like type KYN28 or KYN96,  ABB type ZS series, etc. This circuit breaker is standards asGB1984-2003  AC high voltage circuit breaker ,JB3855 3.6-40.5Kv indoor  AC High voltage circuit breaker ,DL/T403 Specification of 12-40.5Kv indoor High voltage vacuum circuit breakerfor order as well as IEC60694. This circuit breaker is made with mature  APG technology . The application of VD4terminal buffer guaranteesthe indoorterminal is ever more reliable in nay operation environment. VD4 canfully meet the requirement of GB, DL, IEC, DIN, VDE as well as standards of other advanced industrial countries.

  •  Airtemperature: Maximumtemperature: +40℃; Minimumtemperature:-25℃
  •  Humidity: Monthly average humidity 95%; Daily average humidity 90%.
  •  Altitude above sea level: Maximum installation altitude: 2500m
  •  Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
  •  Nofrequent violent shake
        Main technical specifications:

 No

  Item

   Unit

   Parameter

 1

   Rated voltage

   kV

24

 2

 Rated f requency

   Hz

  50/60

   3

  Rated current

 A

 630, … 4000A

 4

 1min Power f requency withstand voltage

 kV

65

  5

 Lightning impulse withstand voltage

 kV

125/150

  6

 Rated short circuit breaking current (peak)

 kA

 50/63/80/100

  7

 Rated short breaking current

   kA

 20, …40

 8

 Rated short circuit making current (peak)

 kA

 50/63/80/100

  9

 Rated cable(line) charging breaking current

  A

 50 and 10

  10

   Rated single capacitor bank switching current

 A

 400

  11

 Rated withstand current (peak)

 kA

 50/63/80/100

  12

  Short time withstand current (4s)

 kA

  20, …40

 13

 Mechanism life

 times

      10000

 Note: For short circuit breaking current & rated currentis optionalby clients.
