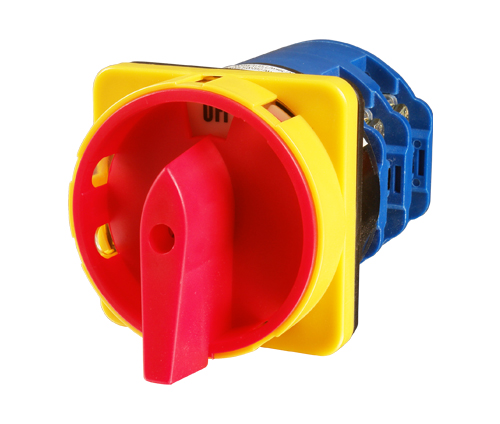

LW28GS Red Handle Universal Changeover Switch

Item : LW28GS

Details :

LW28GS series padlock type power switch is derived products of LW28 series universal changeovers witch.

Universal Changeover Switch

Application

Item : LW28GS

Details :

LW28GS series padlock type power switch is derived products of LW28 series universal changeovers witch.
Mainly used on machine tool for requirements can be padlocked power cut-off switch,in the off position
(that is “0” or “OFF”) and the on position (that is “1” or “ON”)can be padlocked,in order to prevent misuse
and to control the operation of non-authorized personnel.

Conform to the standards IEC60947-3

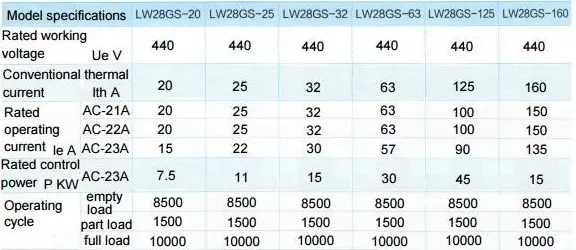

Specification of padlock type switch are divided into four current levels :20A,25A,32A and 63A.

The first type of switch 20A have big and small two panels,others are big panels,big panel switch
can while using three padlocks,small panel switch can while using two padlocks.
The second type of switch is big panel,can while using three padlocks.

Use of padlock type switch are divided into general type and emergency type.

General type(LW28GS-\03) is black panel,black handle.

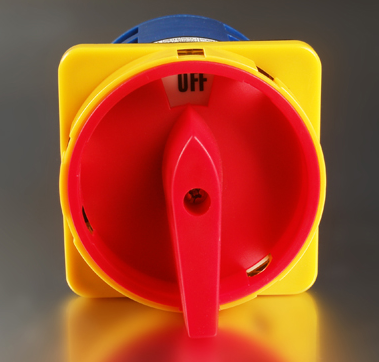

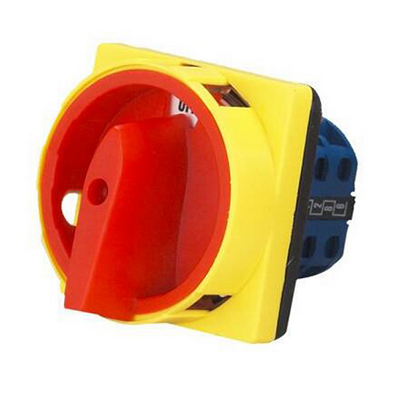

Emergency type(LW28GS-\04) is emergency signs,that is yellow panel,red handle.

Specification

By Uses pm main circuit switch with a switch Switch.Motor control using direct conversion Switch and master control and measurement conversion Switch.Have an operationLocation By Mode of 5.2.Since REPLICA and positioning Since REPLICA.Contact System by 5.3 hours, a 1-3 Switch Location conversion FestivalSwitch direct control of the main electrical switch using a 1-3 FestivalSwitch direct control of the main electrical switch using a 1-6 festival.5.4 hours at 30 ° angles by four 5,60 ° ° and 90 °.Face Shape Square Face by 5.5 score.Rectangular face and Round Face (20A has only).Knob Types down by 5.6 R-, I-, F-, B-, S-, L-and P-type and K-type, a total of eight.5.7 Operating Position By Mode of operation and see if the composition shown in Table.
