Ⅰ. Product Description

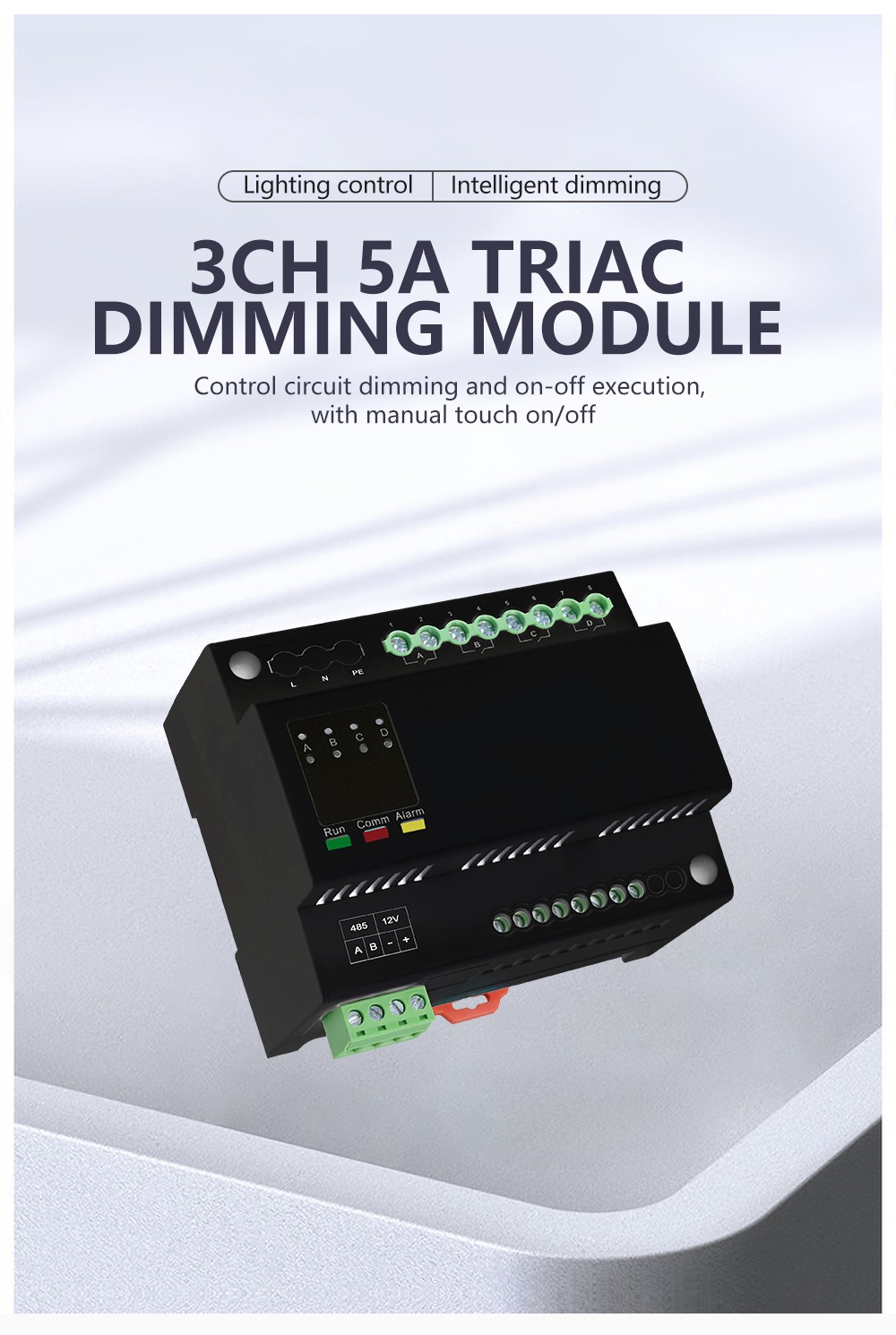

Ezitown 3CH 5A Triac Dimming Module it can achieve dimming by changing the voltage of 0-220VAC to controls the output current of the power supply. Dimming switch can “fade in and fade out”. Built-in relay has features such as soft start and true shutdown technology . It has been widely in modbus light control system, to realize building automation, smart home control and smart hotel etc.

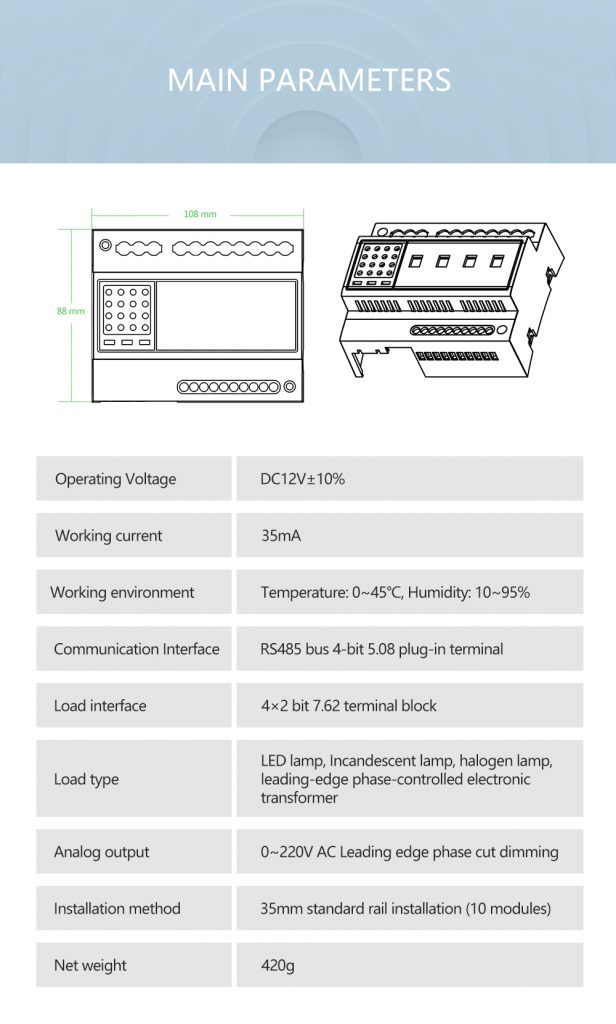

| Working Voltage | DC12V±10%；35mA |
| Analog Output | 0~220VAC leading edge phase cut dimming |
| Load Interface | 4×2bit 7.62 terminals |

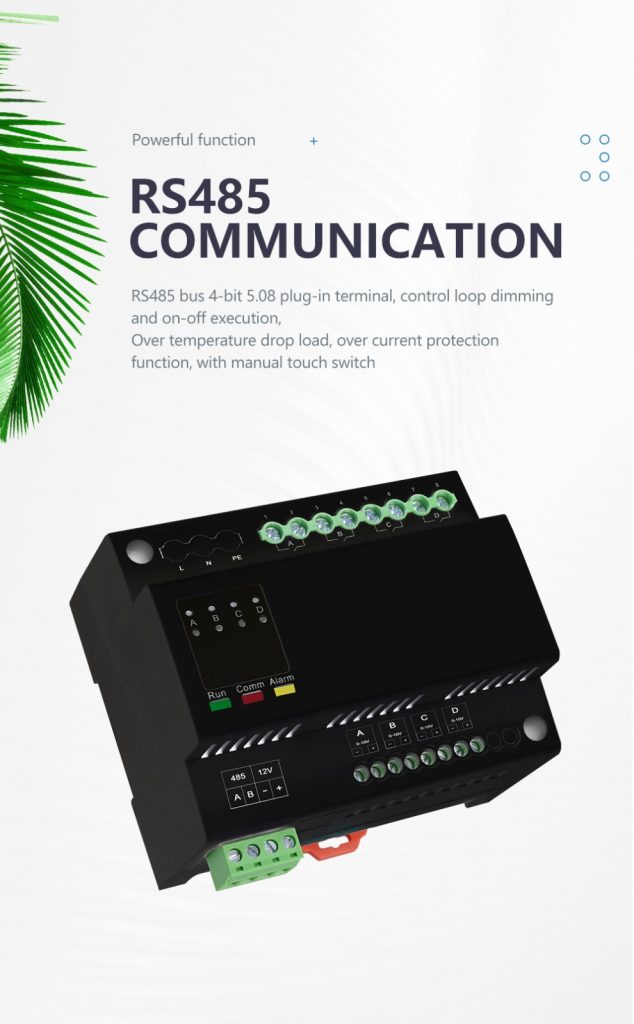

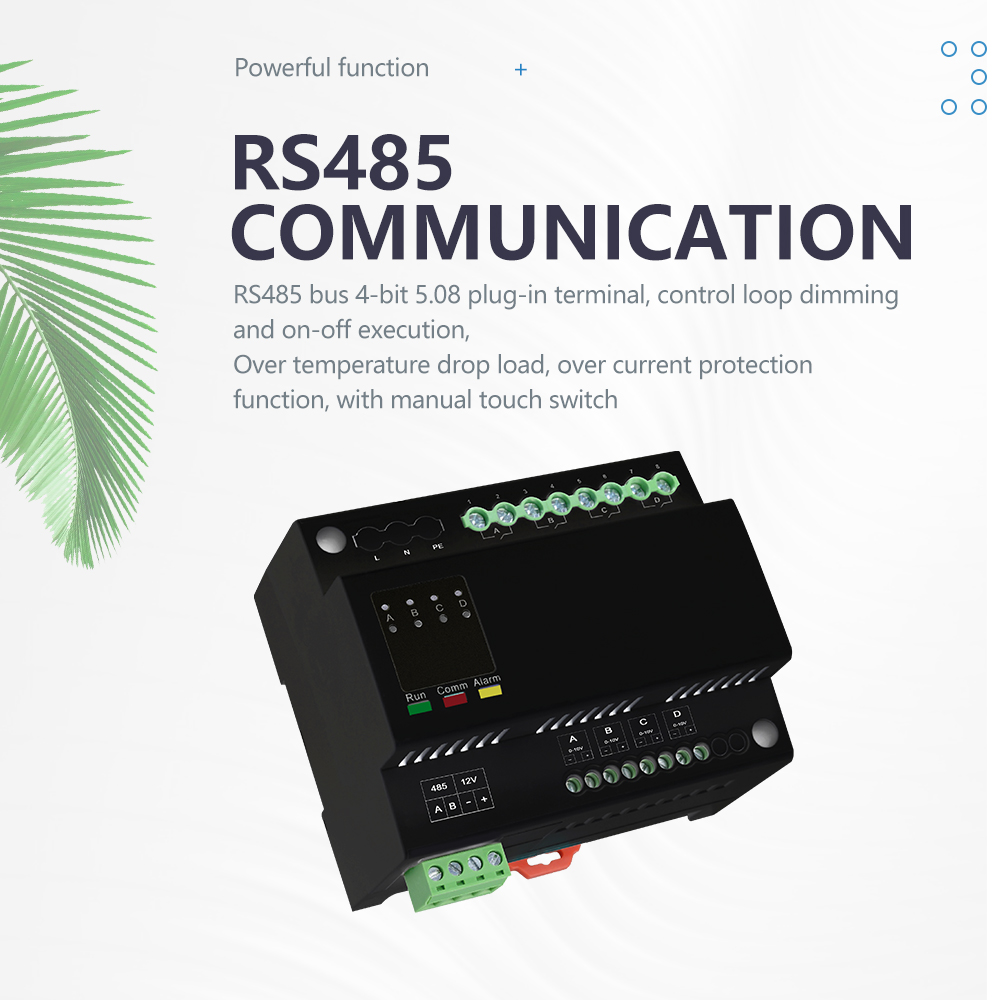

| Communication Interface | RS485 bus 4bit 5.08 plug-in terminal |
| Size | 108×88×66mm |
| installation method | 35mm standard rail installation(10 modules) |
| Load type | LED lamp,incandescent lamp,halogen lamp,leading-edge phase-controller electronic transformer |
| Net weight | 420g |
Ⅱ. Product Features – 4CH 0-10V Dimming Module
- Over temperature drop load
- Overcurrent protection function
- With manual touch switch

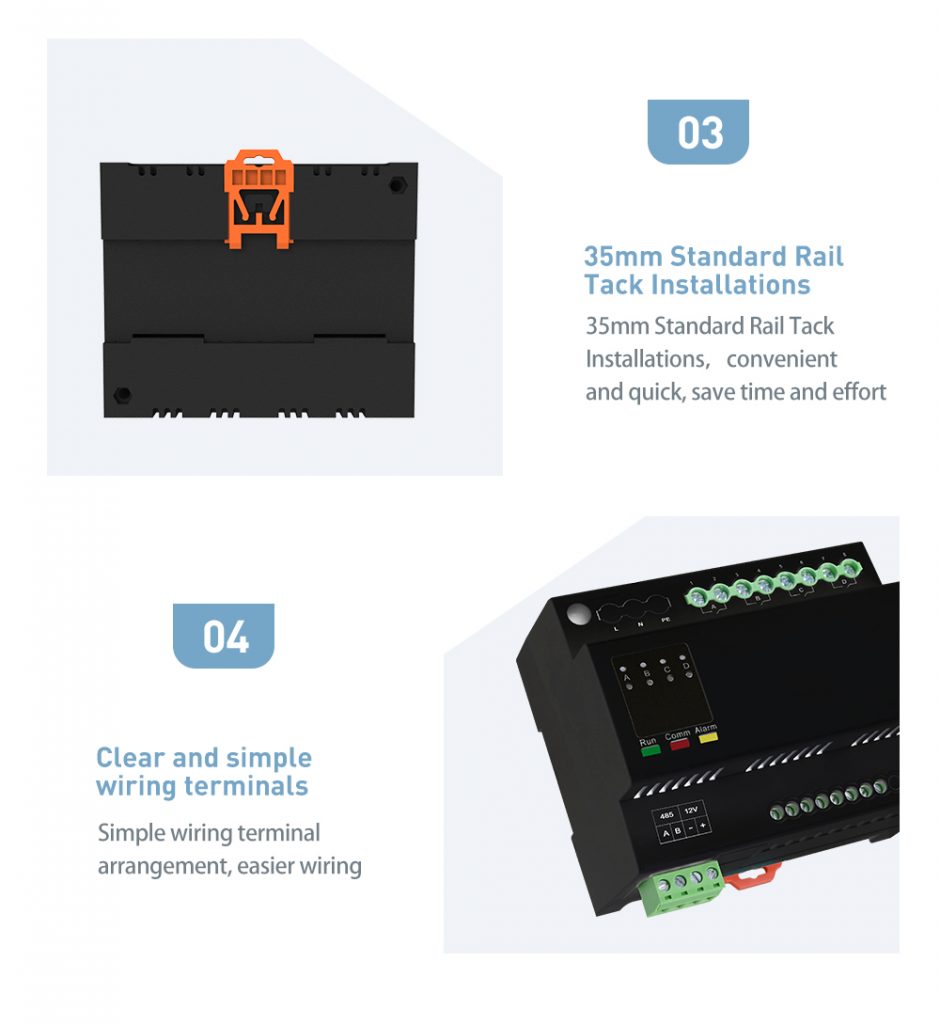

- 35mm standard rail installation（10 Modulus）
Ⅲ. Application- 4CH 0-10V Dimming Module

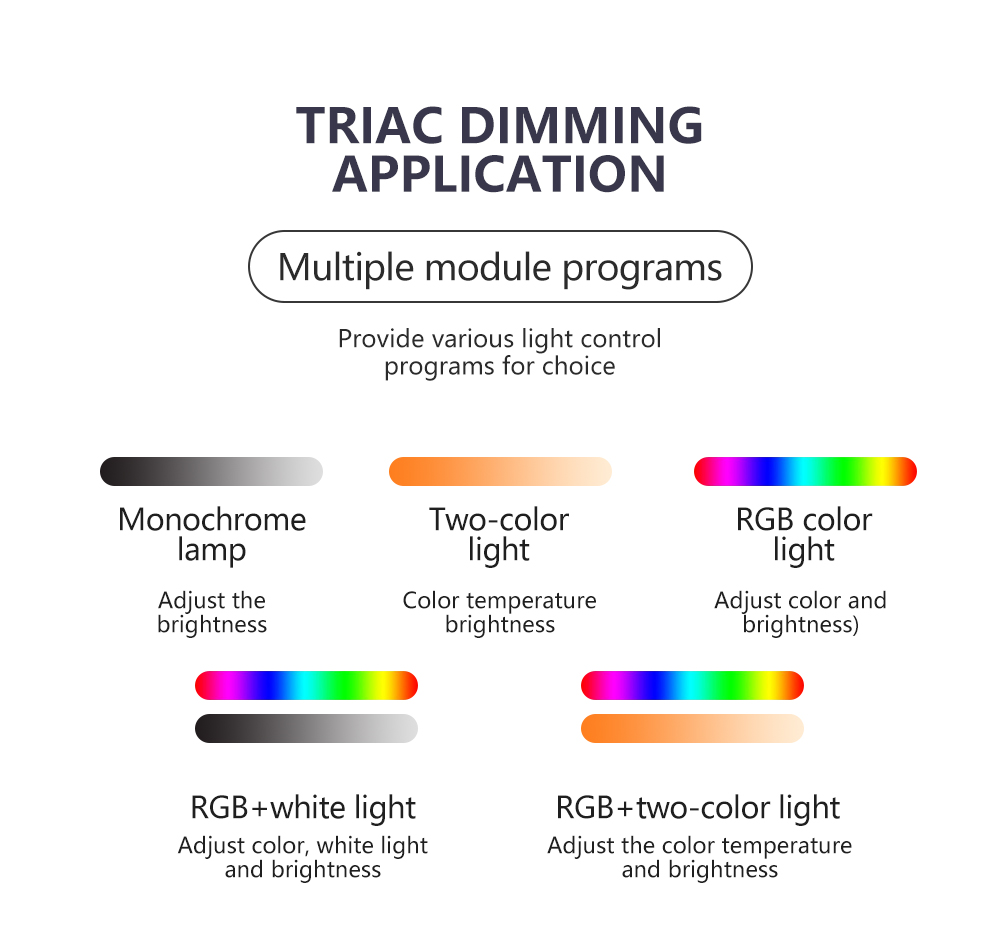

- Dimming Method: monochrome lamp, dual-color lights, tri-colors lights, RGBW light etc
- Applications: street lighting, building lighting, engineering lighting, scenic lighting, local lighting, home lighting
Ⅳ. Available Dimmer Lamps
Downlight, Spotlight, Industrial lights, ball lamp, led strip, grid light, panel light
V. Scene and Time Control for RCU Dimming Module

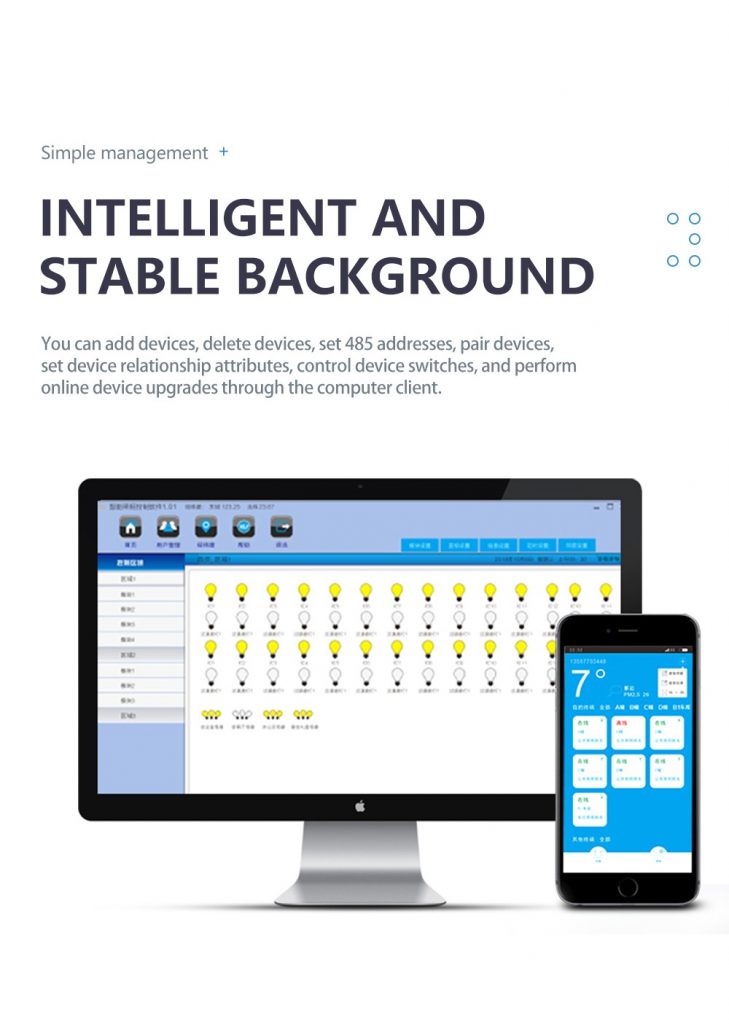

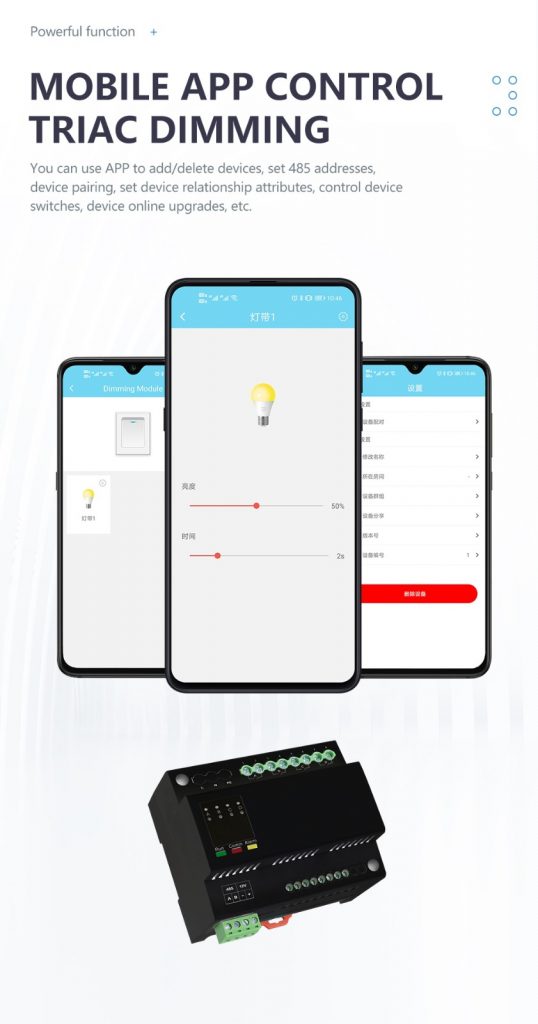

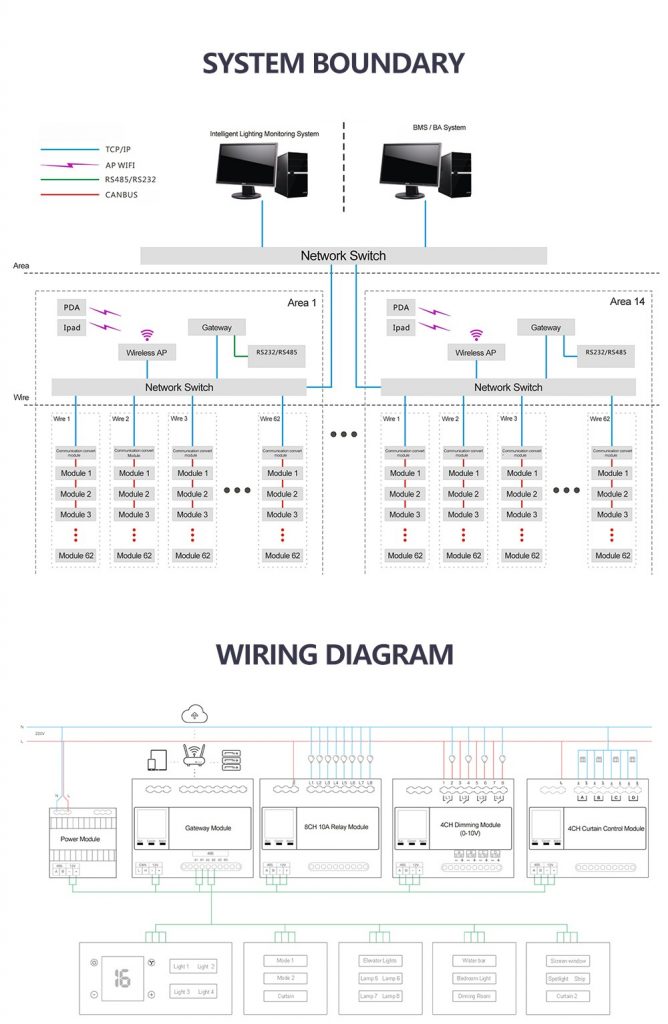

VI. APP and Backend System for Light Control

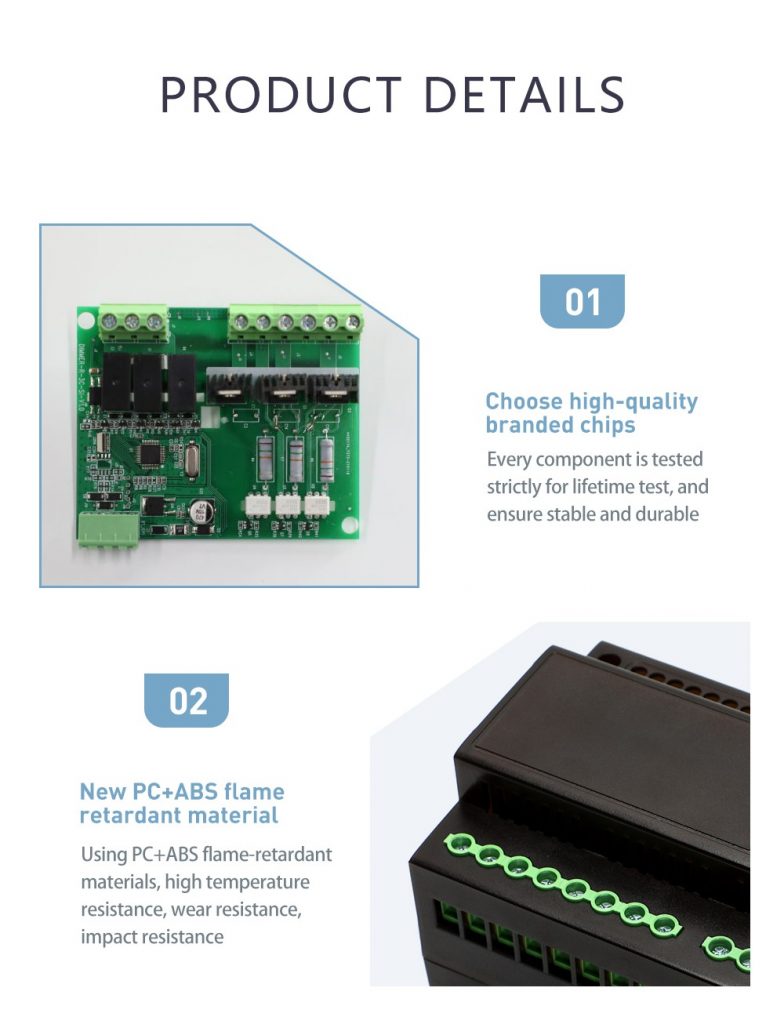

Ⅶ. Traic Dimming Module Structure
