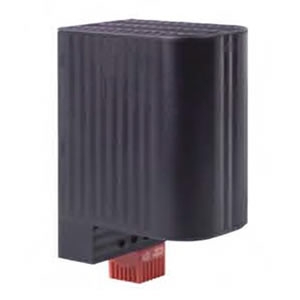

Small size Heater
Item : CSF 060
▋ Low surface temperature
▋ Integrated thermostat
▋ Quick mounting due to clip fixing
▋ Double insulated (plastic)
▋ Wide voltage range
▋ Small size
Touch-safe heater for the use in enclosures with electrical/electronical components. The design of the heater supports the natural convection which results in a high air-current of warm air. The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design. This model with plug-in thermostat does not require additional wiring. The heaters are designed for permanent operation. This heater is also available in a version without thermostat (CS 060).
Technical Data
| Operating voltage | 120-240V AC* (min. 110V, max. 265V) |
| Heating capacity | see table |
| Heating element | PTC resistor – temperature limiting |
| Surface temperature | ＜80℃(176°F), except upper protective grille |

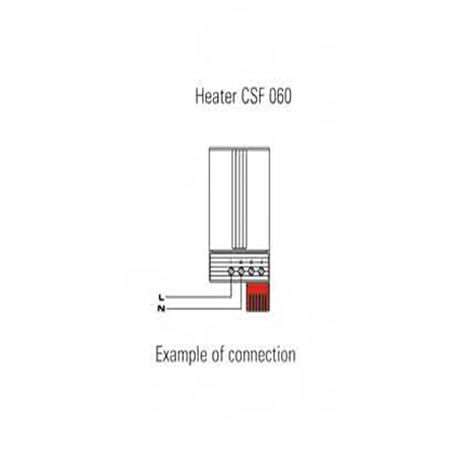

| Connection | 4-pole terminal 2.5mm2, torque 0.8Nm max. |
| Casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 50022 |
| Fitting position | vertical |
| Operating / Storage temperature | -20 to +70℃ (-4 to +158°F) / -45 to +70℃ (-49 to +158°F) |
| Protection type / Protection class | IP30 / Ⅱ(double insulated) |
| Note | other voltages on request |
*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

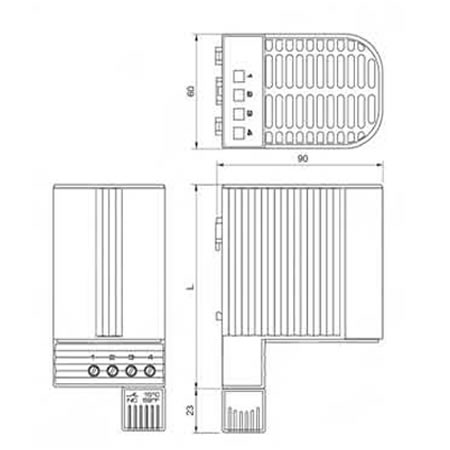

| Art.No. | Heating capacity1) | Inrush current max. | Air outlet temperature2) | Switch-off temperature3) | Starting temperature3) | Dimensions | Weight (approx.) |
| 06001.0-00 | 50W | 2.5A | +86℃(186.8°F) | +15℃ (59°F) | +5℃ (41°F) | 110×60×90mm | 0.30kg |
| 06002.0-00 | 50W | 2.5A | +86℃(186.8°F) | +25℃ (77°F) | +15℃ (59°F) | 110×60×90mm | 0.30kg |
| 06011.0-00 | 100W | 4.5A | +120℃ (248°F) | +15℃ (59°F) | +5℃ (41°F) | 110×60×90mm | 0.30kg |
| 06012.0-00 | 100W | 4.5A | +120℃ (248°F) | +25℃ (77°F) | +15℃ (59°F) | 110×60×90mm | 0.30kg |
| 06021.0-00 | 150W | 8A | +145℃ (293°F) | +15℃ (59°F) | +5℃ (41°F) | 150×60×90mm | 0.50kg |
| 06022.0-00 | 150W | 8A | +145℃ (293°F) | +25℃ (77°F) | +15℃ (59°F) | 150×60×90mm | 0.50kg |

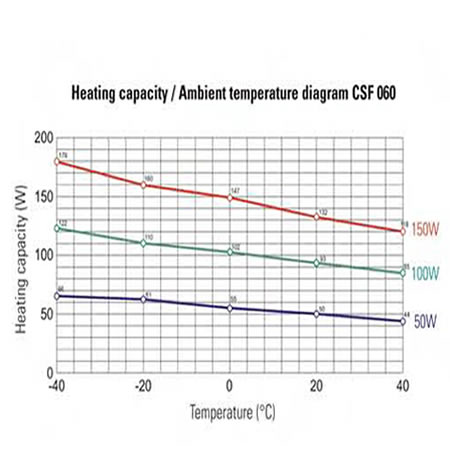

1) ambient temperature – see Heating capacity/Ambient temperature diagram; 2) measured 50mm above protective grille; 3) tolerance of ± 5k;
