S1-AGQ-E metal switch

Item : S1-AGQ-E

metal switch

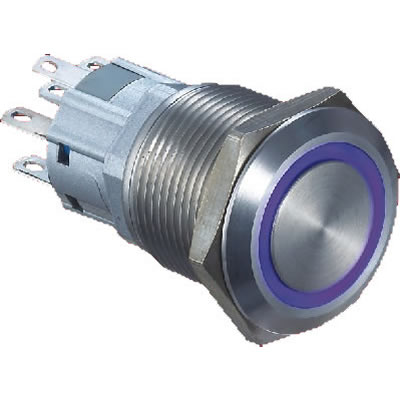

S1-AGQ-E momentary 1NO1NC or 2NO2NC metal switch
ROHS compliant

3 years Quality Guarantee

Usage:Bank,food factory,slaughter,bakery,washing factory,chemistry factory,mine mill
We produce our own brand metal switch, and also agent of eao switch

s1-agq-e-push-button-switch-specification

General Data:
Fix Hole diameter: 19mm
Illuminated type:  Ring
Terminal size:   2.8×0.5mm
button shape: flat/Ball
Operation Type: Momentary(remove your finger, the button will back to original position)
 latching(remove your finger,the button will keep the position of push down,unless you push again,it will back to original position)
Electric parameter :
Contact work type:1NO1NC/2NO2NC
Max.switch rating:  5A 250V AC
Switch type:Ith:5A Ui:250V AC
Contact work type:single dot silver point quick action
Contact resistance: <50M ohm
Insulation resistance: >1000M ohm
Dielectric strength:  2000V AC
Operation Temp: -20 C ~ +55 C
Mechanical Life:1,000,000 Cycles
Electrical Life:50,000 cycles
Thicknes of pannel:1 – 10mm
Operate limit:3.1mm apprx
Material:
Contact Material: Silver alloy
Torque of fix screw nut: 5 ~ 14 Nm
Operation Pressure: 3 ~ 5 N
Pretection Degree: / IP67 / IK09
Button material:Stainless steel mirror surface or hairline surface
Body material:Stainless steel mirror surface or hairline surface
LED cover material:PC
Base material:PBT
Illumination:
Color option:Red/Green/Orange/blue/White
Illumination type:LED
LED bulb advantage:AC/DC both using;no differentiate+-terminal,inside resistance protect the circuit
Voltage:6V/12V/24V/36V/110V/220V
Life of LED:Approx 50,000 Hours
Rated Current:15MA

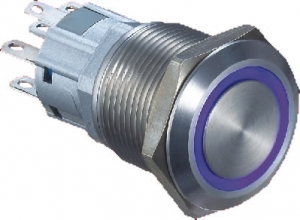

s1-agq-e-push-button-switch
