Ⅰ. Product Description
0-10V dimming is also called 0-10V signal dimming, which is an analog dimming method. It can achieve dimming by changing the voltage of 0-10V to controls the output current of the power supply. Dimming switch can “fade in and fade out”. Built-in relay has features such as soft start and true shutdown technology . It has been widely in modbus light control system, to realize building automation, smart home control and smart hotel etc.

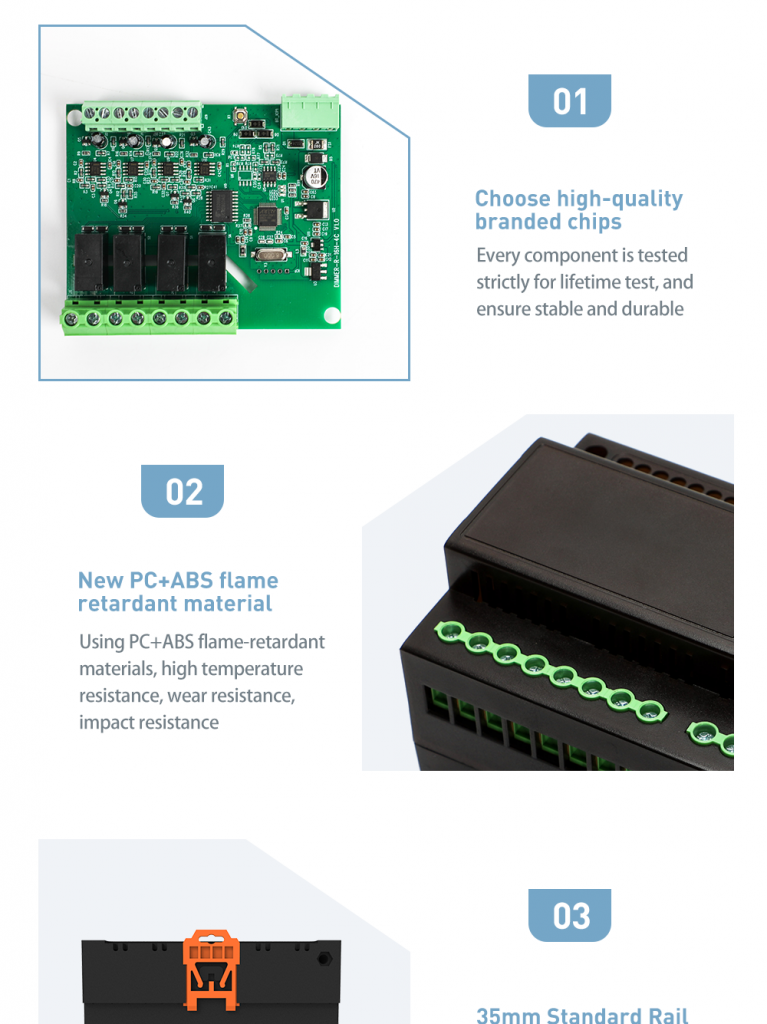

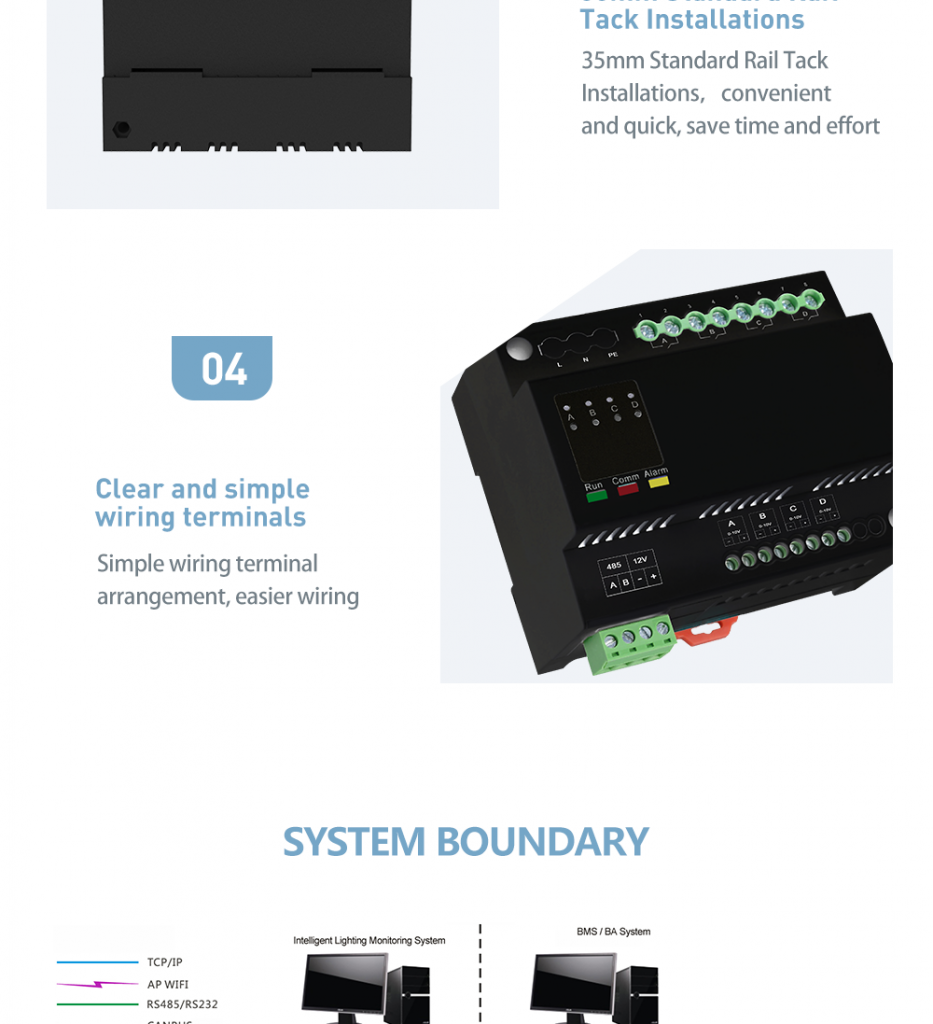

Ⅱ. Product Features – 4CH 0-10V Dimming Module

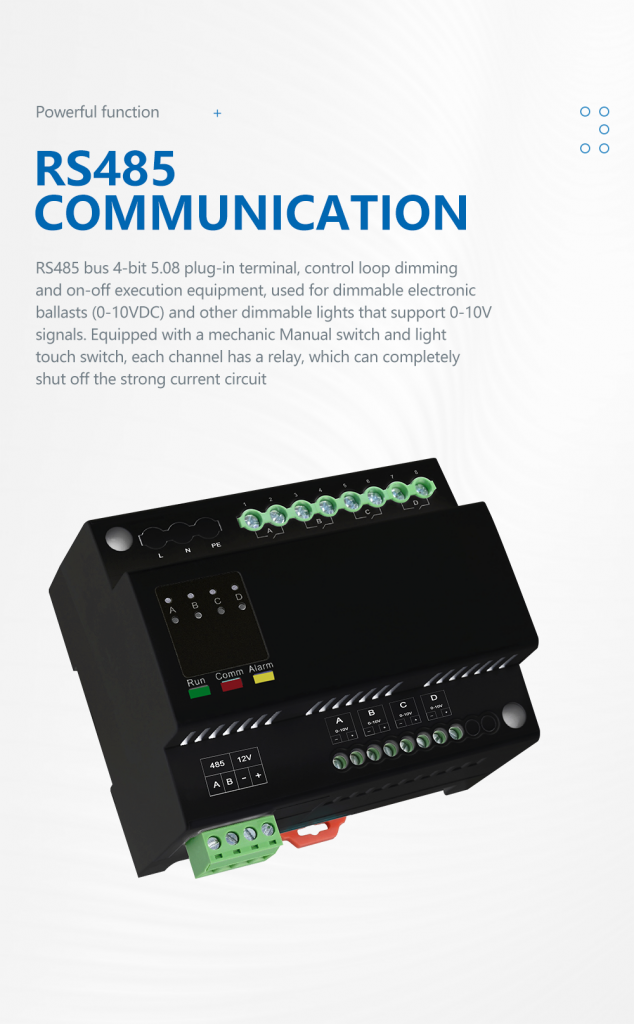

● Dimming and on/off;
● Equipped with mechanic manual switch and touch switch;
● Each channel has a relay, which can completely shut off the strong current circuit

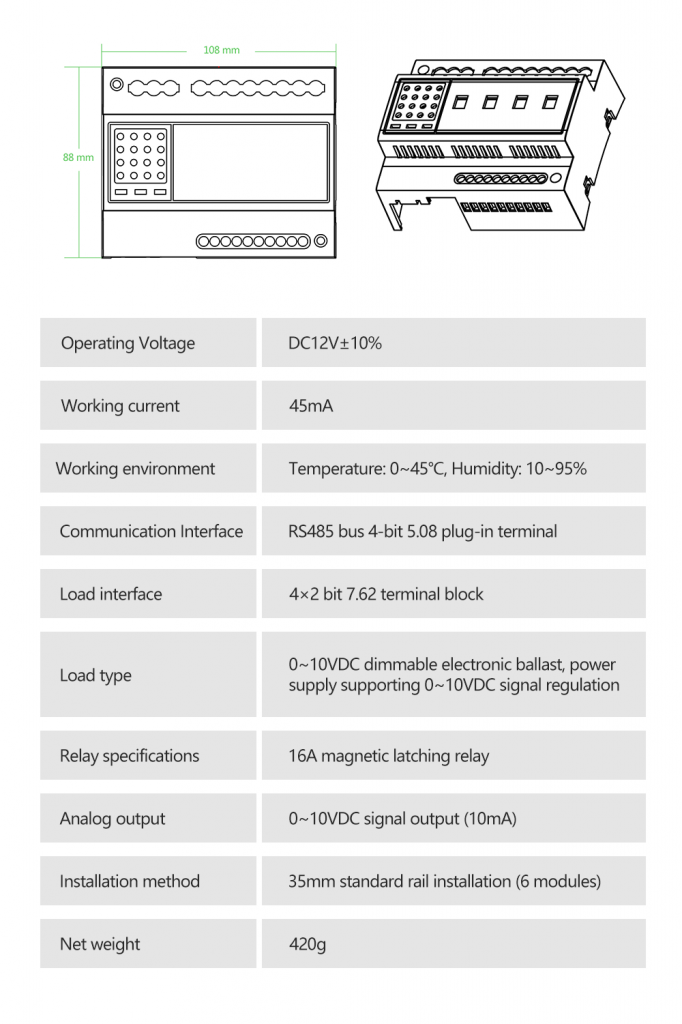

| Working Voltage | DC12V±10%；45mA |
| Analog Output | 0~10VDC signal output（10mA) |
| Load Interface | 4×2bit 7.62 terminals |
| Communication Interface | RS485 bus 4bit 5.08 plug-in terminal |
| Size | 108×88×66mm |
| Load capacity | Single Channel 10A |
| Load type | 0~10VDC dimmable electronic ballast |
| Relay Specification | 16A Magnetic latching relay |

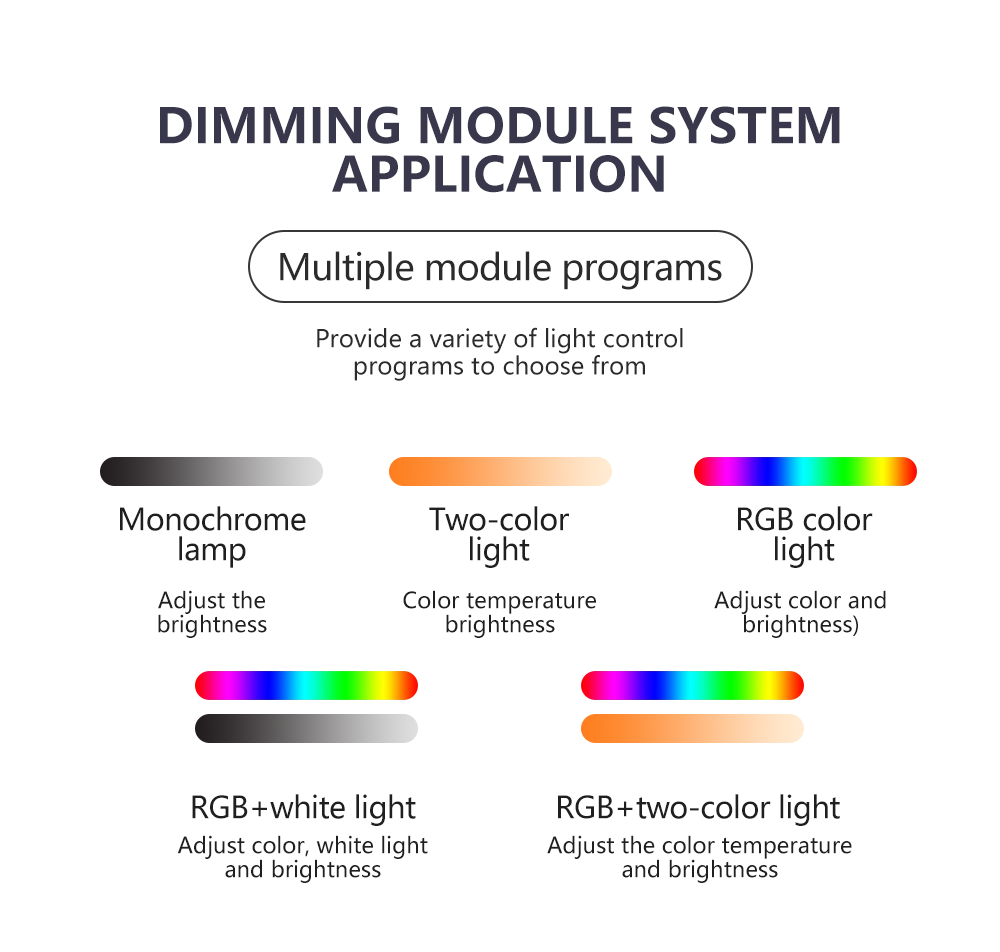

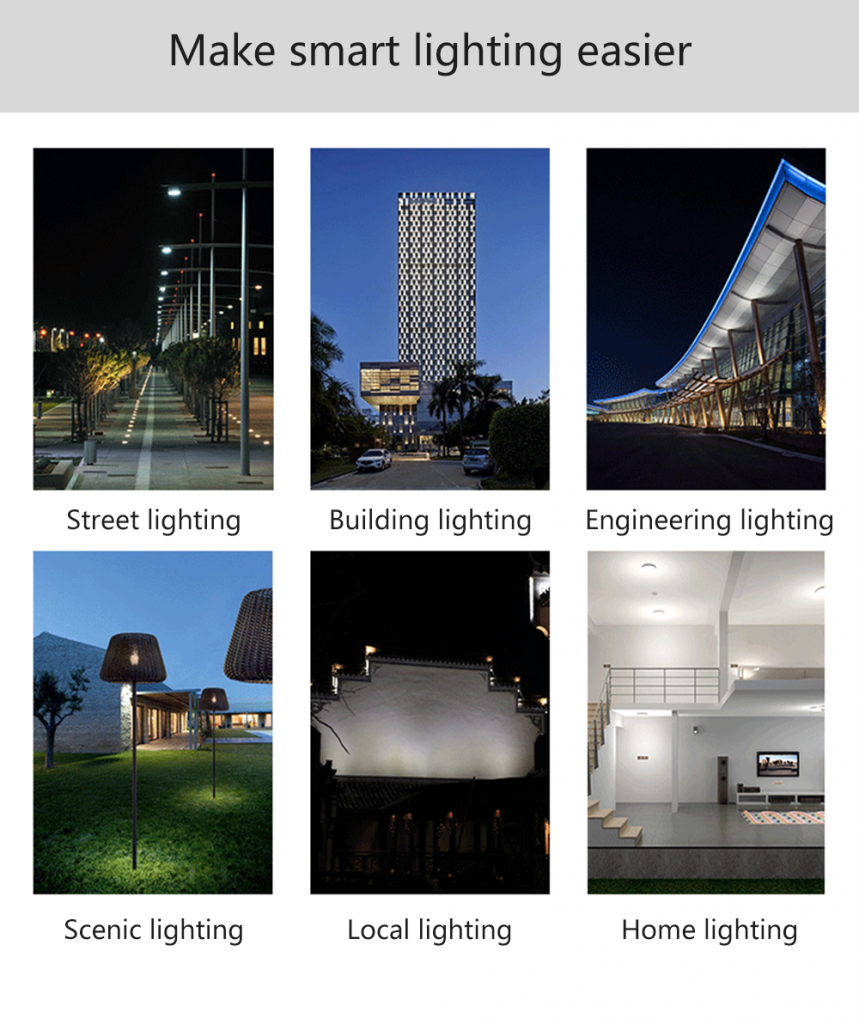

| Ⅲ. Application- 0-10V Dimming ModuleDimming Method: monochrome lamp, dual-color lights, tri-colors lights, RGBW light etc Applications: street lighting, building lighting, engineering lighting, scenic lighting, local lighting, home lighting |
Ⅳ. Available Dimmer Lamps

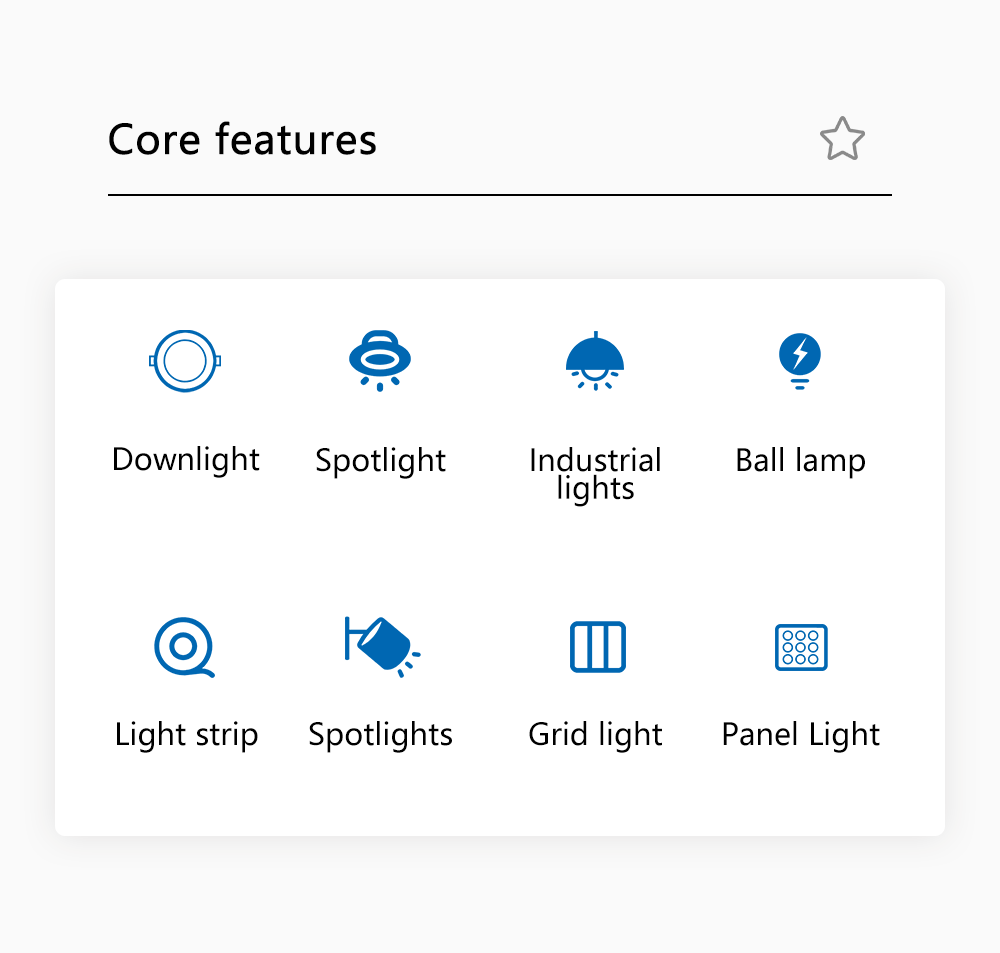

Downlight, Spotlight, Industrial lights, ball lamp, led strip, grid light, panel light

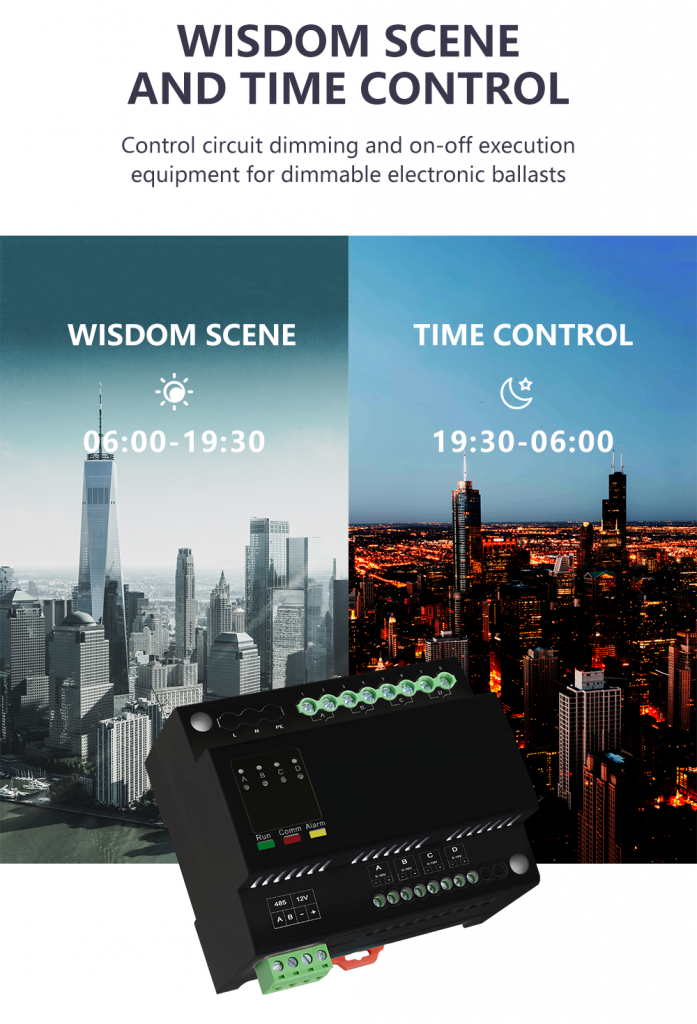

V. Scene and Time Control for RCU Dimming Module

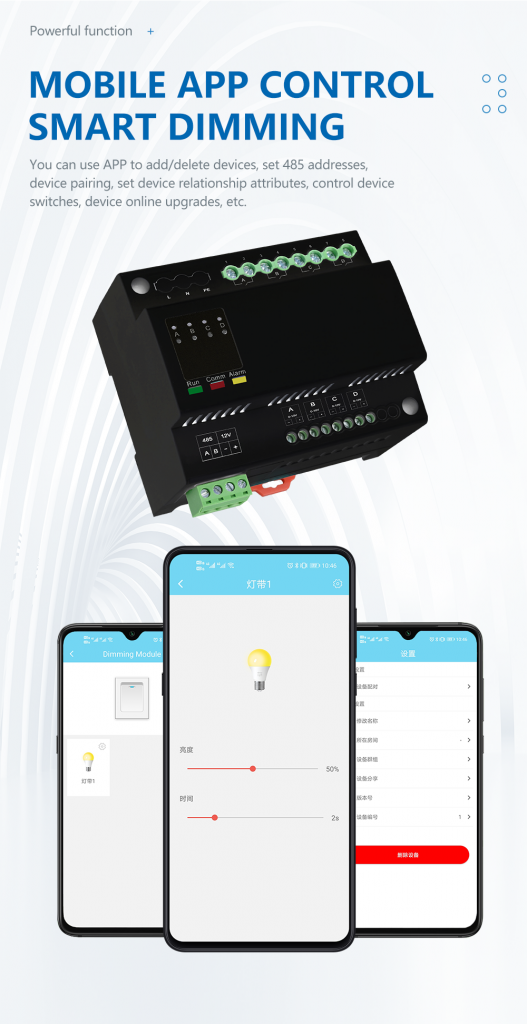

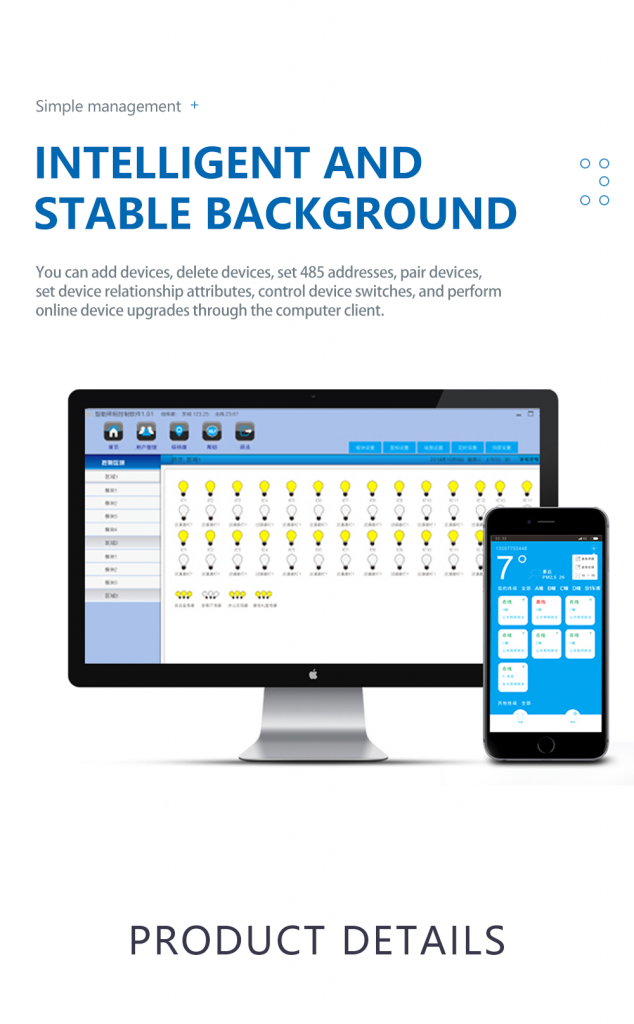

VI. APP and Backend System for Light Control

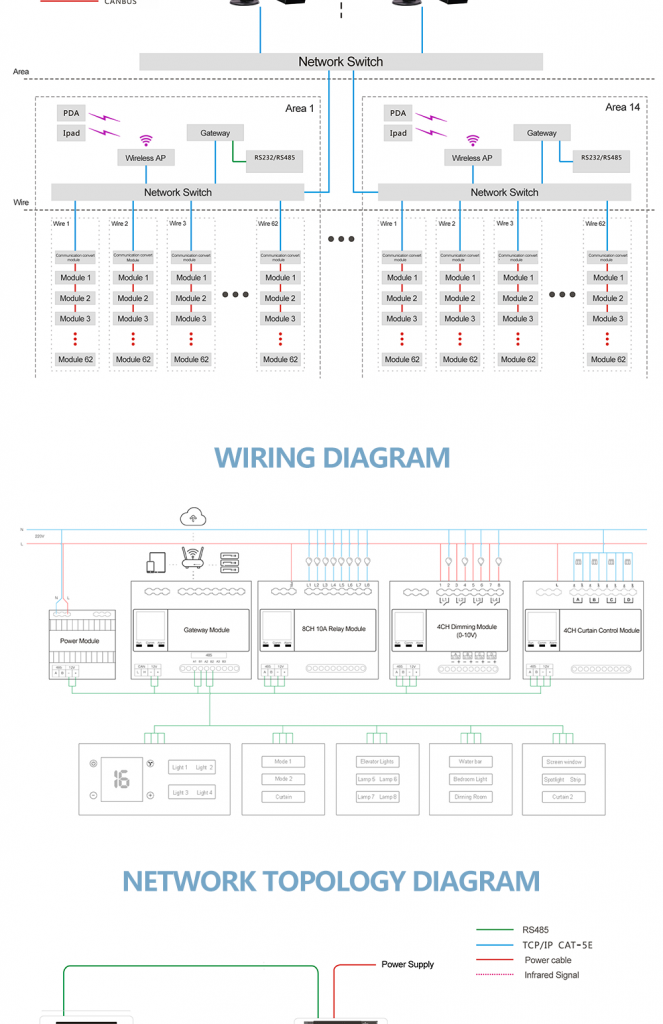

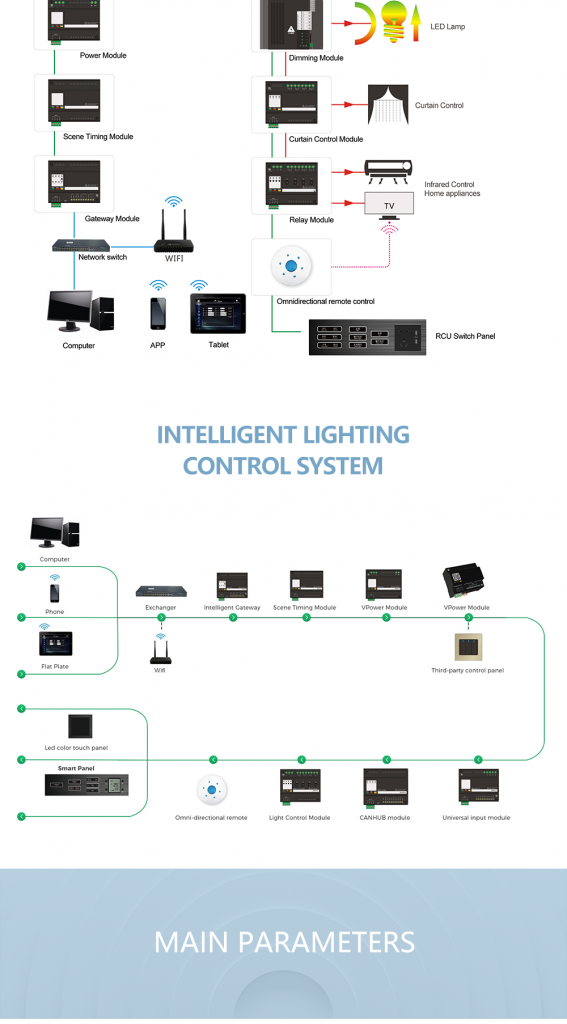

Ⅲ. RCU Dimming Modules Structure
