YB29 Prefabricated Transformer Substation Switchgear YB29—12/0.4
HIGH AND LOW Substation Switchgear Prefabricated Transformer Substation
VOL TAGE PREFABRICATED
YB29—12/0.4prefabricated transformer substation
The YB29-/0.4prefabricated transformer substation has the advantange as
Following:
Factory run of transfomer substation not only shortens the construction period sharply but also reduces production cost ,go deep into the load center to the duffest extent,to improve the quallty of power supply and reduce line loss.Trinlty space.Various styleof appearance,elegant shape,it can be in harmony with surrounding environment.And the new inner stucture,which realizes the uniform of material saving and performance improving.with comfortable operation has the advantages of compact structure,complete funcions,safety and rellability,conventent maintenance.This series prefabricated substation has the advantanges of compact stucture,complete functions,safety and rellability,advantanges of compact structure ,complete function,safety and rellability，convenient maintenance，good appearance,small size.It suitable for the system of living area,commercial building,large building,mineral industrial enterprises and temporary construction site,adopt ring main unit supply or extensible power supply.
Normal working conditions
Environment:perlure-30℃~+40℃
Altitude: ≦1000M
Cutdoor wind speed:35m/s(equal to 700Pa)
Relative humidity:dally avertage shall not exceed 95%and monthly average shall not exceed 90%.
Earthquake intensity:not beyond 3m/s²,in horizontal direction.not beyond 1.5m/s²in vertical direction.
Installation&operation location for installing shall be no line or expiosion danger.no corrosive or dust ,no sharp impact.
If you have any requirement ,please contact with us and negotiate with us
Technical parameters
Item | unit | High-volltag unit | Transfomer | Low-voltage unit |
Rated voltage | KV | 10 | 10/0.4 | 0.4 |
Rated current | A | 630 | 100-2500 | |
Rated frequency | Hz | 50 | 50 | 50 |
Rated capacity | KVA | 100-1250 | ||
Rated short-time withstand current | KA | 20/4S | 30/1S | |
Rated peak withstand current | KA | 50 | 63 | |
Rated short circuit maxing current(peak) | KA | 50 | 15-30 | |
Rated short circuit breaking current | KA | 31.5（Fuse） | ||
Rated breaking current | A | 630 | ||
1min power frequency withstand voltage | KV | Phase-earth and phase-phase 42 Isolated fracture48 | 35/25 | 2.0/2.5 |
Lightning impulse withstand voltage | KV | Phase-earth and phase-phase 75 Isolated fracture85 | 75 | |
Protection degree | lp23 | lp23 | lp23 | |
Noise level | dB | Oil-immersed≤65 Dry lype≤65 | ||
Circult number | ↑ | 1-6 | 2 | 4-30 |
Max capacitor compensation capacity on LV side | Kvar | 300 |

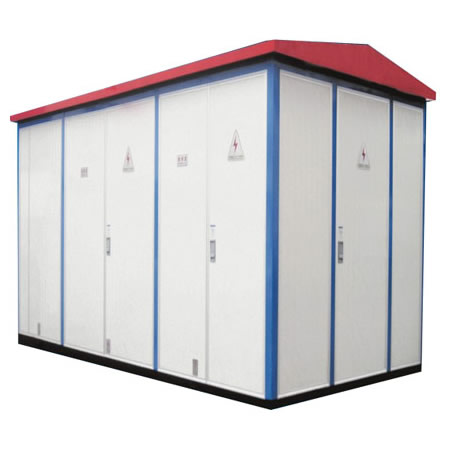

YB29-Prefabricated-Transformer-Substation
