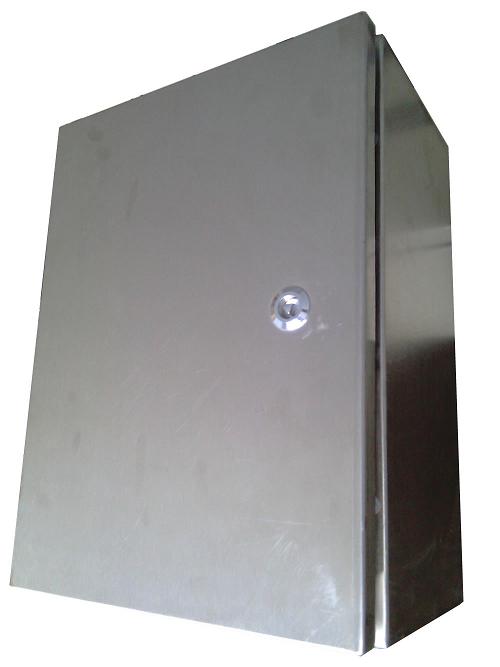

Nema4x Stainless Steel Enclosure distribution box

Item : Nema4 stainless steel Enclosure distribution box

Nema4 metal Enclosure distribution box

Details :
MODEL NO.:           NEMA4 ENCLOSURE
IP DEGREE:            IP66 NEMA4X
CATEGORY:           JUNCTION BOX
MCB POLE:             NO LIMITED
MAIN SWITCH:     NO LIMITED
CERT:                       CE IEC60529 NEMA4X,12
MATERIAL:            SS304,SS316, ss316L
FINISHING            TEXTURED COATING
RAL7032/RAL2004, or Stainless steel Original color
DOOR OPEN DEG   120°

• Application

• Specification

• PDF

• Gallery

• Certificates

• Application

1.Designed to enclosure electrical or electric equipment and protect against harsh,industrial envirenments.
2.For use as instrument enclosure,electric, hydraulic or pneumatic control housings,electrical junction boxes or terminal wiring enclosures.
3.Impressive styling features make the enclosure a suitable addition to any high-tech equipment installation.
4.For high temperature applications,a gasket retainer may be required,please refer to factory.

• Specification

The Model we keep Stock in cs				material:	not ss material
MODEL:	SIZE	HEIGHT	WIDTH	DEEPTH	BODY THICK	DOOR THICK	INSTALL BOARD THICK
HMC	403015	400	300	150	1.2	1.2	2
HMC	403020	400	300	200	1.2	1.2	2
HMC	504020	500	400	200	1.2	1.2	2
HMC	604020	600	400	200	1.5	1.5	2
HMC	705020	700	500	200	1.5	1.5	2

Height	Width	Deepth	Thickness of		Thickness of		Color	Remark
mm	mm	mm	bodyxdoorxmp		bodyxdoorxmp
200	200	150	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
250	200	150	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
250	250	150	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
300	200	150	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
300	200	200	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
300	250	150	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
300	250	200	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
300	300	150	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
300	300	200	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
400	300	150	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
400	300	200	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
400	300	250	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
400	400	150	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
400	400	200	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
400	400	250	1×1×1.5		1.2×1.2×2		Ral7032	CE IP66
500	300	150	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
500	300	200	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
500	300	250	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
500	300	300	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
500	400	150	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
500	400	200	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
500	400	250	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
500	400	300	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
500	500	150	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
500	500	200	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
500	500	250	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
500	500	300	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	400	150	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	400	200	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	400	250	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	400	300	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	500	150	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	500	200	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	500	250	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	500	300	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	600	150	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	600	200	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	600	250	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
600	600	300	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	400	150	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	400	200	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	400	250	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	400	300	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	500	150	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	500	200	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	500	250	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	500	300	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	600	150	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	600	200	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	600	250	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
700	600	300	1.2×1.2×1.5		1.2×1.2×2		Ral7032	CE IP66
800	600	200	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
800	600	250	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
800	600	300	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
800	600	350	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
800	600	400	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
800	800	200	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
800	800	250	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
800	800	300	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
800	800	350	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
800	800	400	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	600	200	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	600	250	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	600	300	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	600	350	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	600	400	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	800	200	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	800	250	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	800	300	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	800	350	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	800	400	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	1000	250	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	1000	300	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	1000	350	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1000	1000	400	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	600	250	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	600	300	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	600	350	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	600	400	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	800	250	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	800	300	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	800	350	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	800	400	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	1000	250	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	1000	300	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	1000	350	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	1000	400	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	1200	250	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	1200	300	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	1200	350	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1200	1200	400	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1400	600	250	1.5×1.5×1.5		1.5×1.5×2		Ral7032	CE IP66
1400	600	300	1.5×1.5×1.5

• PDF

Download (PDF, 436KB)

• Gallery

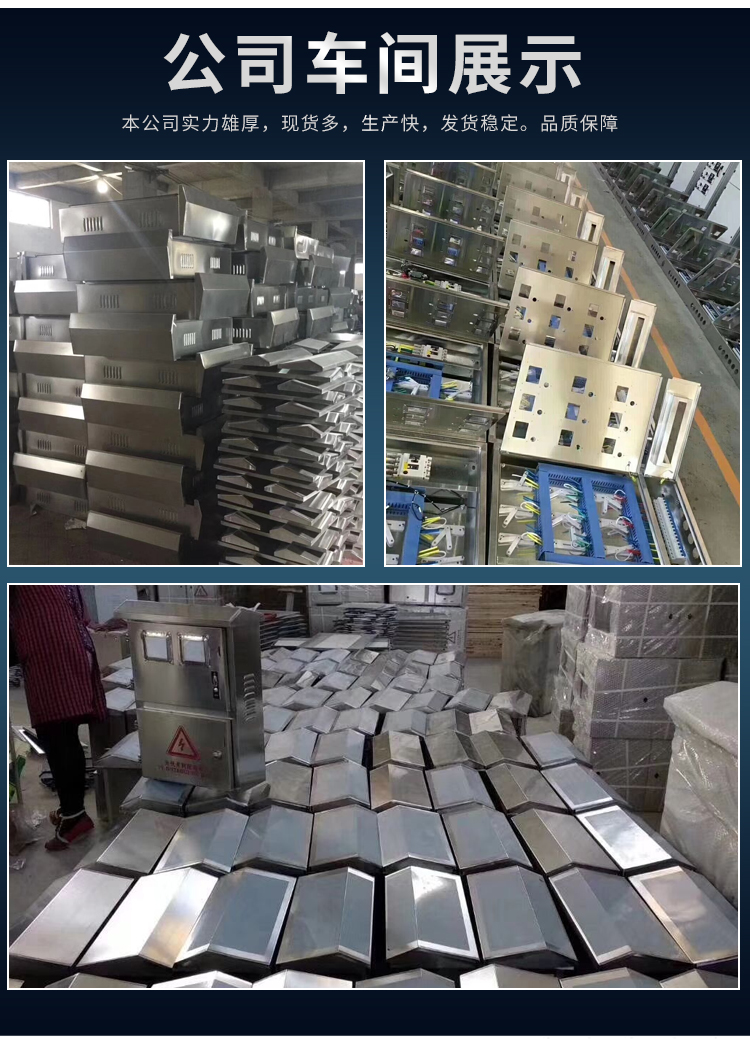

ss enclosure workshop

ss enclosure back side

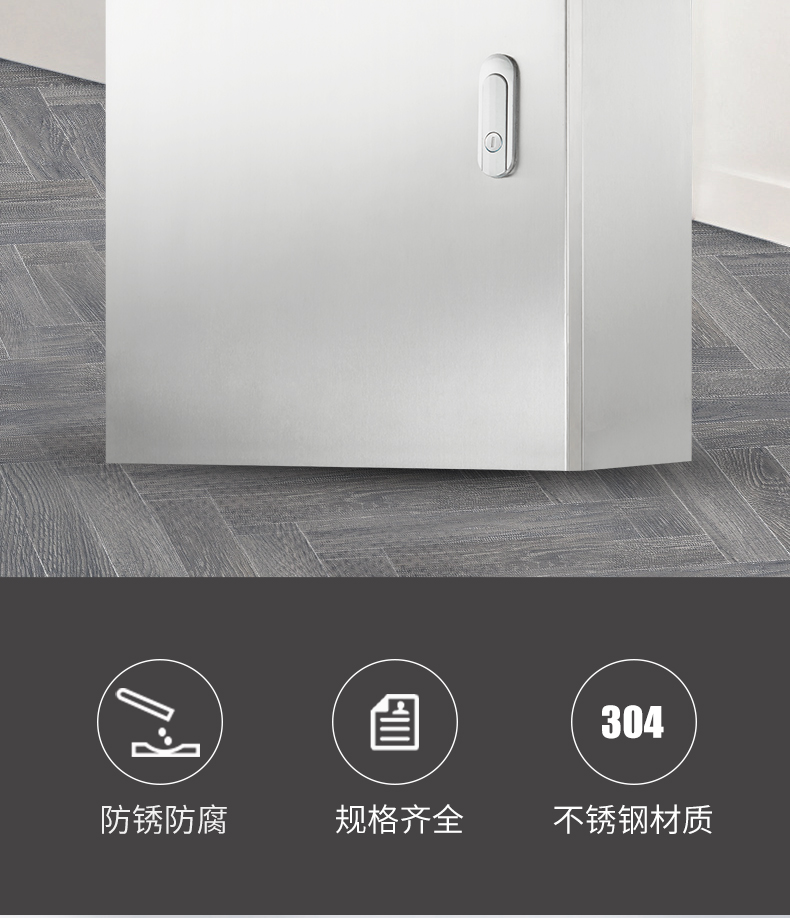

ezitown ss304 waterproof enclosure

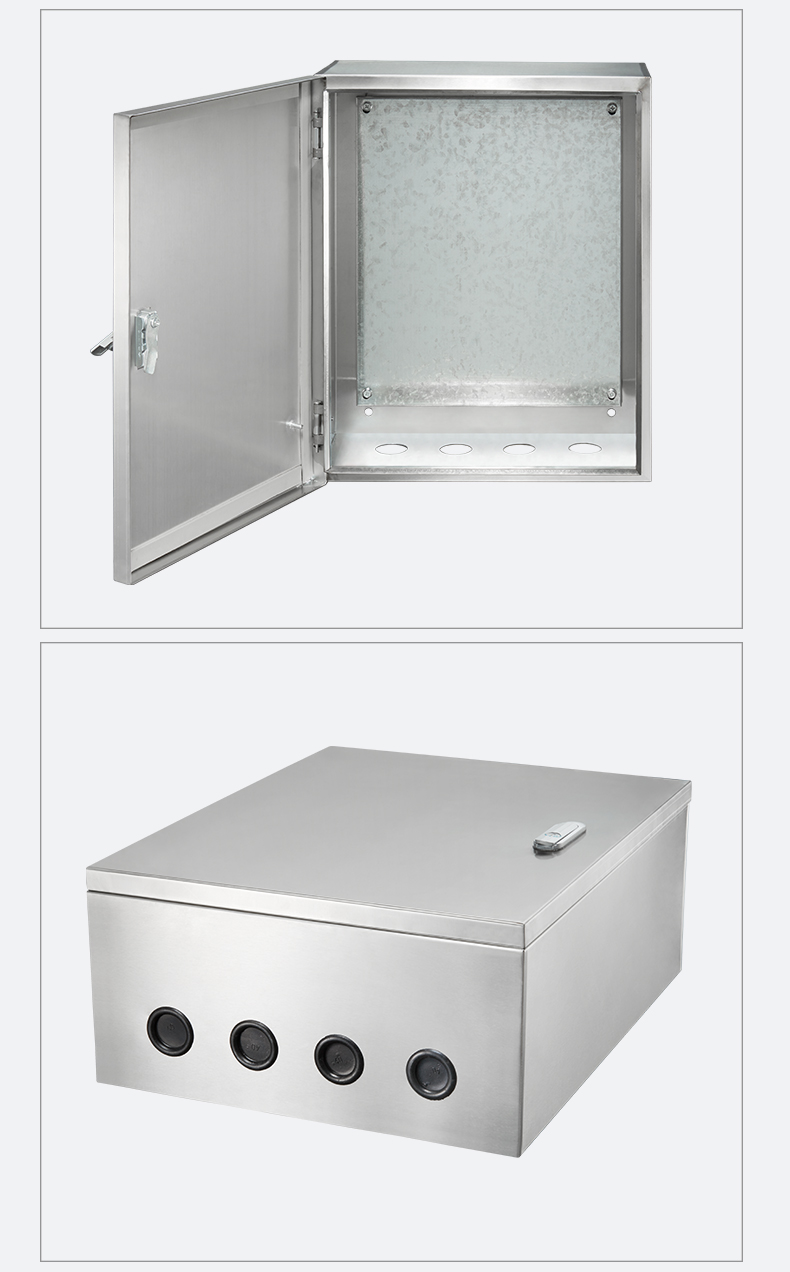

ezitown ss enclosure with outgoing gland holes

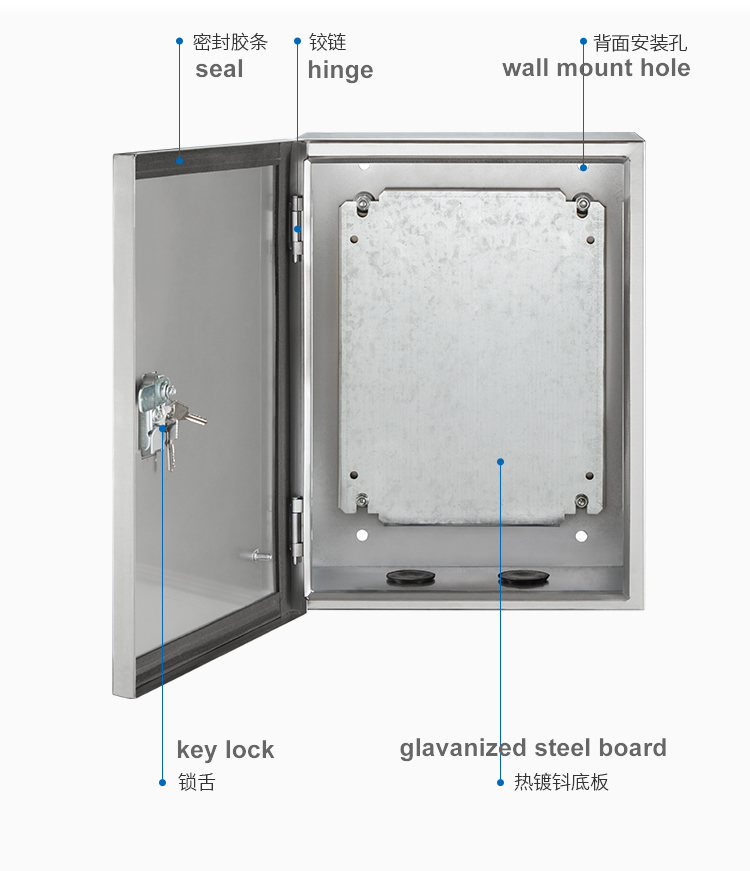

ss enclosure galvanized mounting panel

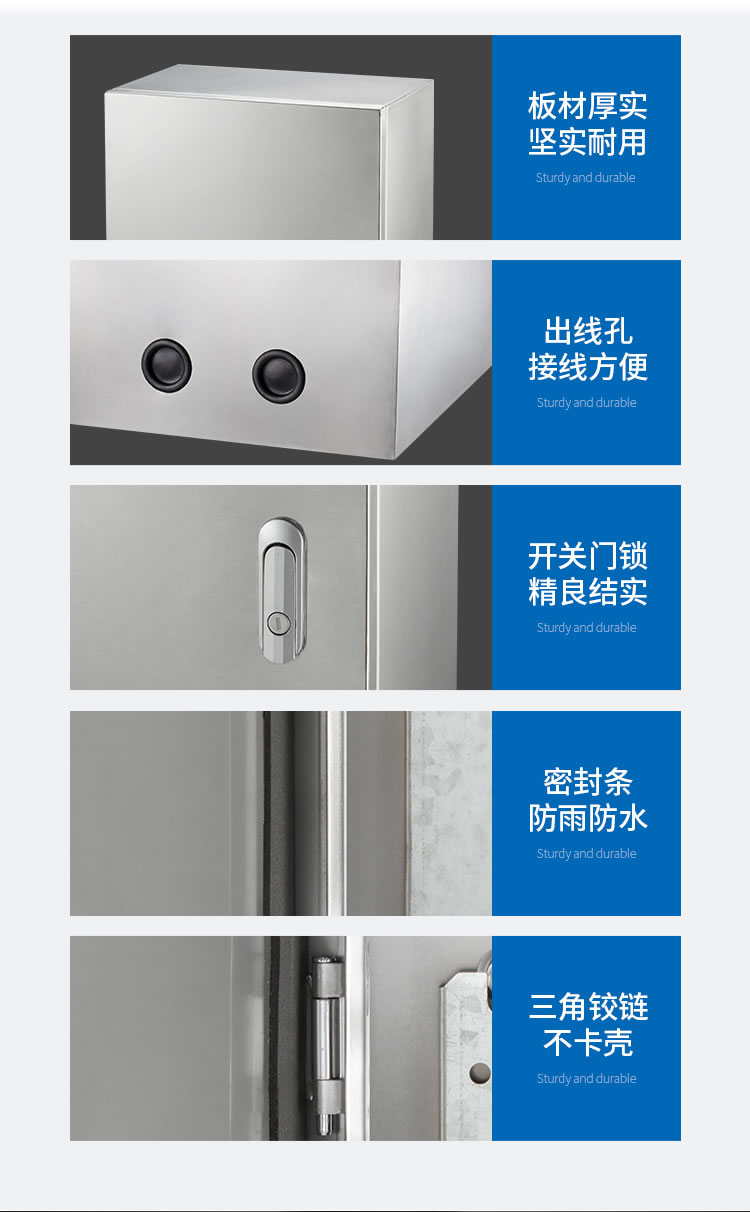

ezitown ss enclosure details

• Certificates

We Obtained CE and IP66 approval . because stainless steel enclosure is the same as cr enclosure, we test crs enclosure instead.

ip66 nema4x metal enclosure

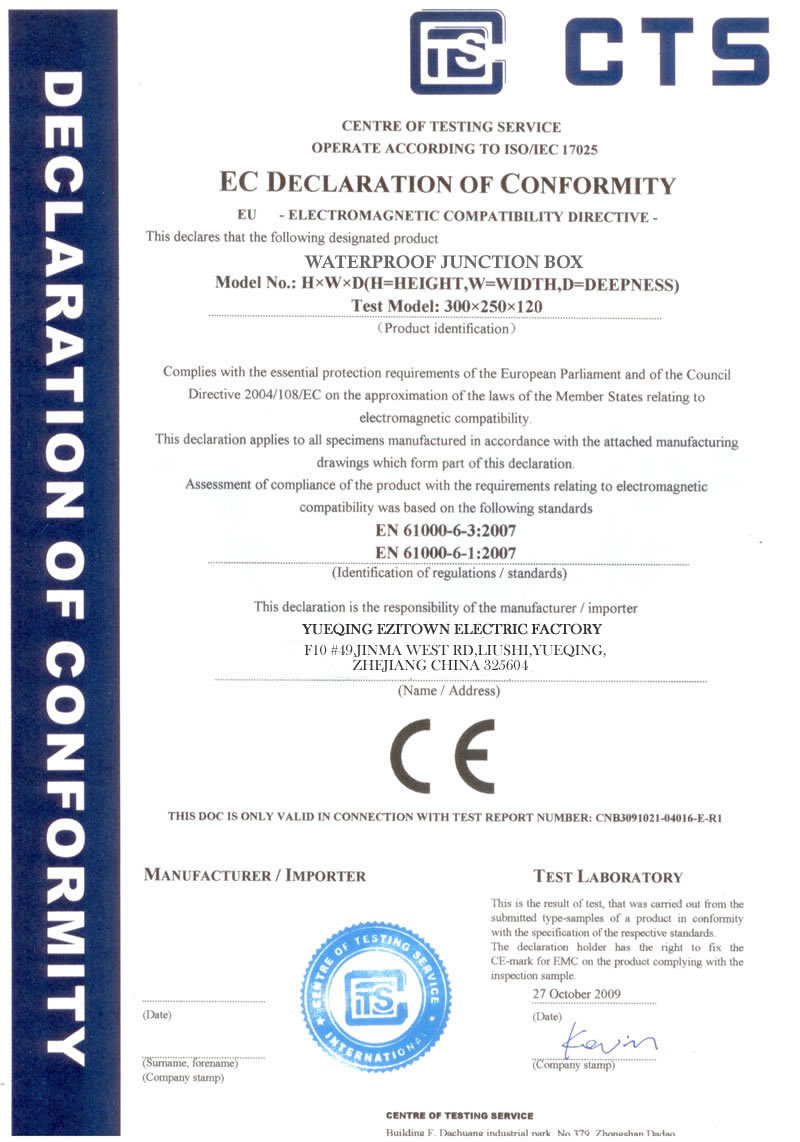

CE of ezitown metal enclosure
