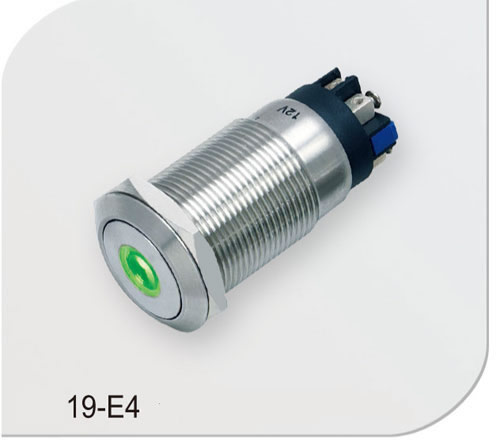

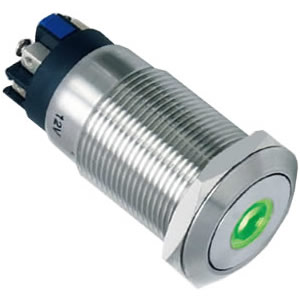

19-E4 19mm metal push button switch
Item : 19-E4

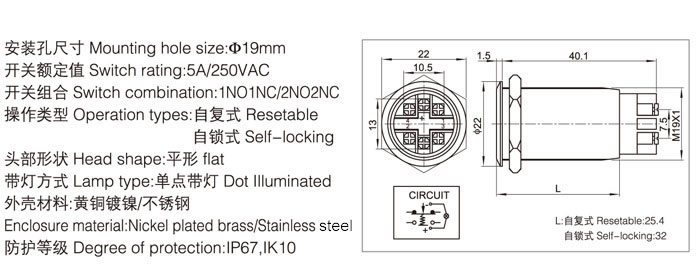

Mounting hole size:19mm
Switch rating:5A/250VAC
Switch combination:1NO1NC/2NO2NC
Operation types:Resetable (Momentary type),Self-locking (Latching type)
Head shape:High flush
Lamp type:Dot llluminated
Enclosure material:Nickel plated brass/Stainless steel
Degree of protection:IP67,IK10
| Specifications | 19-E4 | |
| Tail configuration | Wiring terminal | |
| Switch specifications | 5A/250VAC | |
| Contact resistance | <50mΩ | |
| Insulation resistance | <1000MΩ | |
| Dielectric intensity | 2000VAC | |
| Ambient temperature | -20℃~+55℃ | |
| Mechanical life | 500,000 cycles | |
| Electrical life | 50,000 cycles | |
| Panel thickness | 1~10mm | |
| Nut torque | 5~14Nm | |
| Operation pressure | About 3~5N | |
| Operation stroke | About 2.5mm | |
| Protection level | IP67,IK10 | |
| Material | Contact | Silver alloy |
| Button | Nickel plated brass/stainless steel | |
| Enclosure | Nickel plated brass/stainless steel | |
| Base | PA66 | |
| LED Parameter | LED type | Dot llluminated(LED) |
| Rated voltage | 6V/12V/24V/110V/220V | |
| LED color | Red,Orange,Yellow,Green,Bule,White | |
| LED life | 40000hours | |
