Mechanical Thermostat Change-over contact FZK 011

Mechanical Thermostat

Item : FZK 011

▋ Adjustable temperature

▋ High switching capacity

▋ Small hysteresis

▋ Terminals easily accessible

▋ Clip fixing

▋ Change-over contact

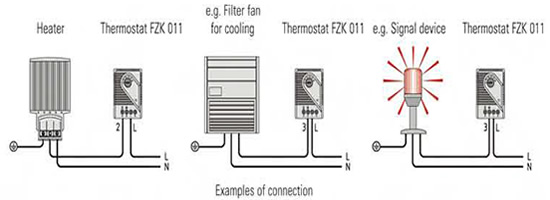

The mechanical thermostat is used for controlling heating and cooling equipment, filter fans or signal devices. The thermostat registers the surrounding air and can switch both inductive and resistive loads via snap-action contact.

Application

Mechanical Thermostat

The mechanical thermostat is used for controlling heating and cooling equipment, filter fans or signal devices. The Mechanical Thermostat registers the surrounding air and can switch both inductive and resistive loads via snap-action contact.

Specification

Technical Data

Switch temperature difference	4K (± 1.5K tolerance)*
Sensor element	thermostatic bimetal
Contact type	change-over snap-action contact
Contact resistance	< 10m
Service life	> 100,000 cycles
Max. Switching capacity, NC	250VAC, 10 (4) A
	120VAC, 10 (4) A
	DC 30W
Max. Switching capacity, NO	250VAC, 5 (2) A
	120VAC, 5 (2) A
	DC 30W
EMC	acc. To EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection	4-pole terminal, clamping torque 0.5Nm max.:
	rigid wire 2.5mm²
	stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN50022
Casing	plastic according to UL94 V-0, light grey

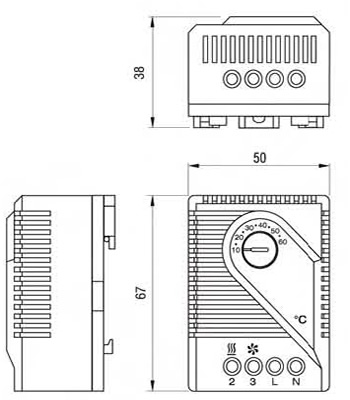

Dimensions	67 x 50 x 38mm
Weight	approx. 0.10kg
Fitting position	variable
Operating / Storage temperature	-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)
Protection type	IP20
Approvals	UL File No. E164102

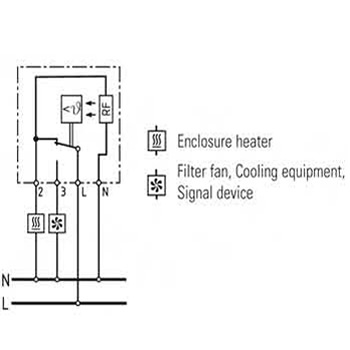

*Connecting terminal “N” (RF heating resistor) causes the thermal feedback to work and so reduces the
switch temperature difference to approx. 0.5K.

Art. No.	Operating voltage	Setting range
01170.0-00	230VAC	+5 to +60°C
01170.0-01	230VAC	+40 to +140°F
01170.0-02	230VAC	-20 to +30°C
01170.9-00	120VAC	+40 to +140°F
01170.9-01	120VAC	+5 to +60°C
