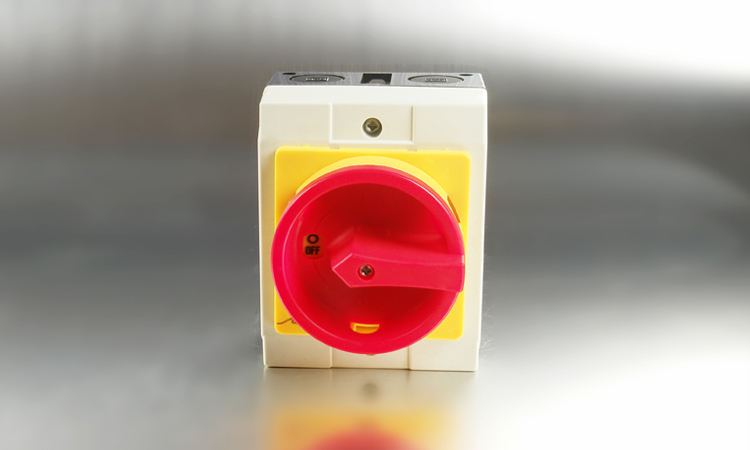

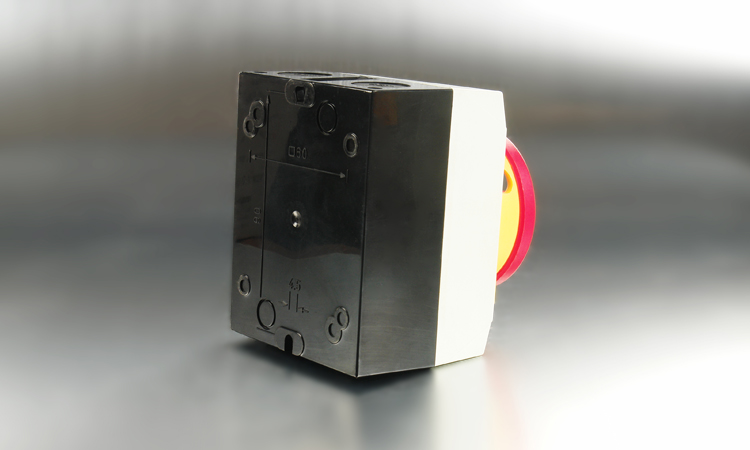

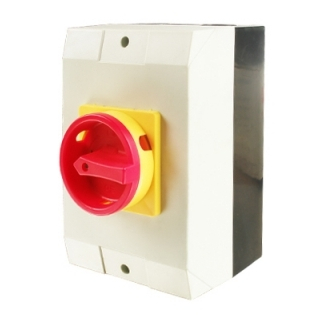

Manual changeover switch for outdoor use GLD12 waterproof enclosure selector

Manual changeover switch for outdoor use GLD12 waterproof enclosure selector

GLD11 is the introduction of foreign advanced technology to develop the most secure and reliable performance, small size, load break switches are suitable for ventilation air conditioning systems and water pumps for industrial equipment switches and used as insulation, safe isolation distribution switch, the equivalent of foreign KG20 -KG100 type load breaker switch.

Normal operating conditions
● ambient air temperature does not exceed + 40 ℃, and its average temperature within 24h not exceed + 35 ℃;
● lower limit of the ambient air temperature does not exceed the -5 ℃;
● installation site altitude does not exceed 2000m;
● maximum temperature is + 40 ℃, the relative humidity of air no more than 50%, at a lower temperature allows a higher relative humidity, for example, up to 90% at 20 ℃. For occasional condensation due to temperature changes special measures.

Features
● Security
Insulation distance switches off contacts large, reaching 13 × 14mm, much higher than the security requirements VDE0113, in many cases, the safety level switch exceeds the world’s various existing electrical circuit breaker.
● Flexible mounting type
Panel switch can be applicable, and can be used stand-mounted, while the base can also be mounted easily and securely with screws or 35mm rail mounting, switching system is the most strong flexibility and adaptability, adding additional contacts and neutral Terminals can be dismantled without having to switch and adapt easily add additional contacts.
● Easy installation
When the built-in screw can be prevented from slipping manual, pneumatic or electric tools will be the best performance, ensure the safety and speed of installation.
