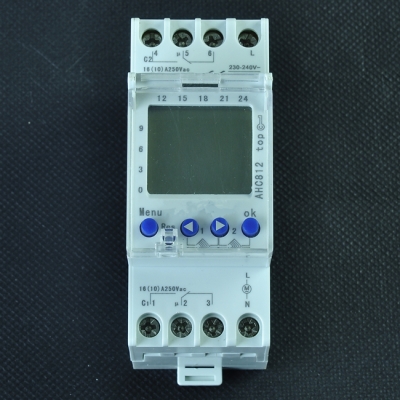

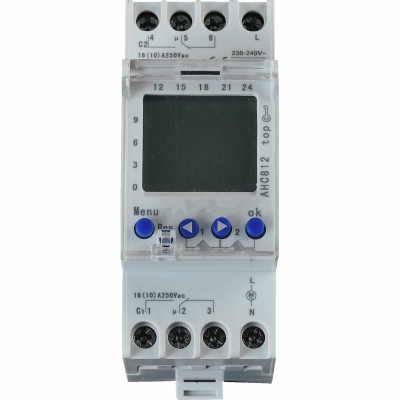

Time Switches AHC812

Function:

• Week program

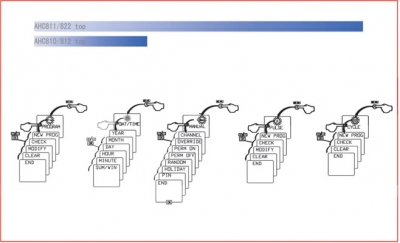

• Operator guidance by an integrated text line on the LCD display
• Programming is shown graphically by a means of a bar chart on the LCD display
• Preset ex-works-time(CET)and automatic summer/winter time changeover
• Summer/winter time changeover can be alternatively switched off or randomly programmed(GB, USA changover norm selectable)
• High number of memory locations
• Guided copying of the switching times to other days of the week(random block formation)
• Sorting of the switching times in memory by the day of the week
• Switching preselction
• Permanent switching·Lithium battery and EEPROM

Design:

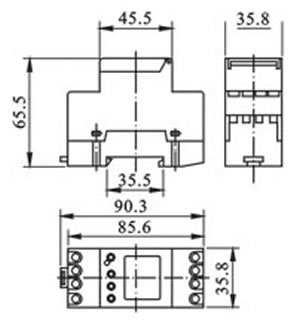

• Standard enclosure 45×35×60(mm)
• Quick fastening facility for 35 mm DIN rail EN 50 022
• Built-on installation with an additional terminal cover which can be fitted with
  a lead able seal
• Switch panel installation complete with installation kit no. 907 0 001

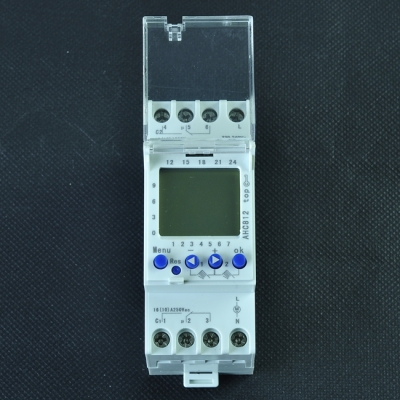

• Captive hinged cover which can be fitted with a lead able seal

Terminal cover for built-on installation, can be fitted with a leaded seal.
