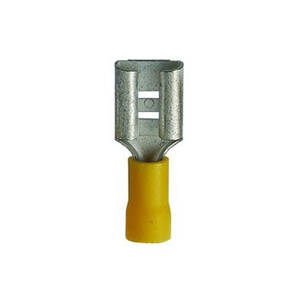

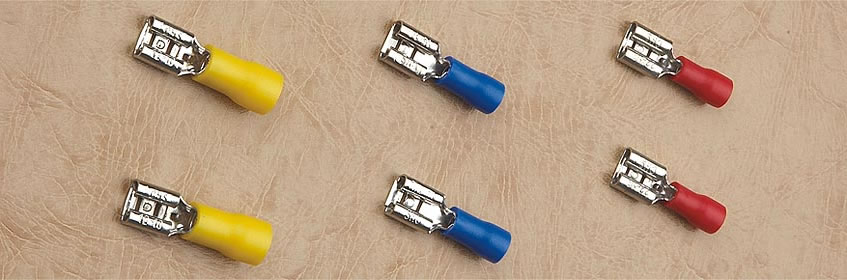

FDD Insulated female disconnects
Item : FDD cable shoes
0.5～1.5mm2(22-16) Imax=10A

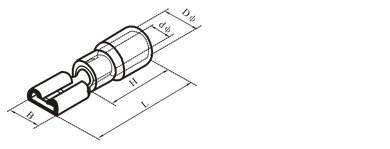

| ITEM.NO. | MEMA TAB(mm) | Thickness of material(mm) | DIMENSION | ||||
| B(mm) | d Ф(mm) | D Ф(mm) | L(mm) | H(mm) | |||
| 1.25-110(5) | 0.5×2.8 | 0.3 | 3.8 | 1.7 | 3.8 | 19 | 10 |
| 1.25-110(8) | 0.8×2.8 | 0.3 | 3.8 | 1.7 | 3.8 | 19 | |
| 1.25-187(5) | 0.5×4.75 | 0.35 | 5.6 | 1.7 | 3.8 | 19 | |
| 1.25-187(8) | 0.8×4.75 | 0.35 | 5.6 | 1.7 | 3.8 | 19 | |
| 1.25-205 | 0.5×5.2 | 0.35 | 6.5 | 1.7 | 3.8 | 20 | |
| 1.25-250 | 0.8×6.35 | 0.4 | 7.4 | 1.7 | 3.8 | 21 | |
1.5～2.5mm2(16-14) Imax=15A
| ITEM.NO. | MEMA TAB(mm) | Thickness of material(mm) | DIMENSION | ||||
| B(mm) | d Ф(mm) | D Ф(mm) | L(mm) | H(mm) | |||
| 2-110(5) | 0.5×2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19 | 10 |
| 2-110(8) | 0.8×2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19 | |
| 2-187(5) | 0.5×4.75 | 0.35 | 5.6 | 2.3 | 4.3 | 19 | |
| 2-187(8) | 0.8×4.75 | 0.35 | 5.6 | 2.3 | 4.3 | 19 | |
| 2-205 | 0.5×5.2 | 0.35 | 6.5 | 2.3 | 4.3 | 20 | |
| 2-250 | 0.8×6.35 | 0.4 | 7.4 | 2.3 | 4.3 | 21 | |
| 2-312 | 0.8×8.0 | 0.4 | 9 | 2.3 | 4.3 | 23 | |
4～6mm2(12-10) Imax=24A
| ITEM.NO. | MEMA TAB(mm) | Thickness of material(mm) | DIMENSION | ||||
| B(mm) | d Ф(mm) | D Ф(mm) | L(mm) | H(mm) | |||
| 5.5-250 | 0.5×6.35 | 0.4 | 7.4 | 3.4 | 5.7 | 25 | 14 |
| 5.5-375 | 1.2×9.4 | 0.5 | 10.9 | 3.4 | 5.7 | 29.6 | |
