E series Tube Insulated cord end terminals

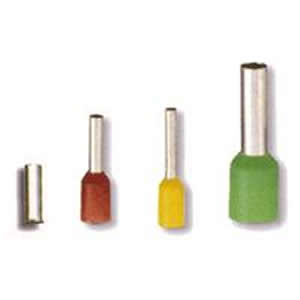

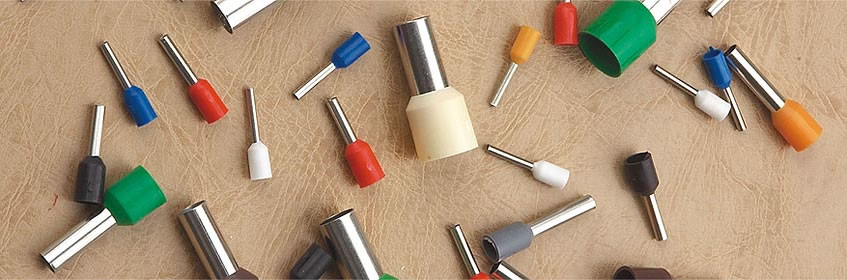

Insulated cord end terminals

Item : E cable shoes

Details :pre-insulate wire terminal, wire connector,cable shoes,wire shoes,ferrule,cable ferrules

Application:help multi core wire connection to brass terminal or electrical applicant
Usage:put the multi core wire into tube,then use the crimping tools to crimp, insert this cable shoes to brass terminal or electrical applicant
Material:Copper / PVC
Fireproof: yes
Cable range:0.5 mm ²– 50mm²

Application

Item : E cable shoes

Details :pre-insulate wire terminal, wire connector,cable shoes,wire shoes,ferrule,cable ferrules

Application:help multi core wire connection to brass terminal or electrical applicant

Usage:put the multi core wire into tube,then use the crimping tools to crimp, insert this cable shoes to brass terminal or electrical applicant

Material:Copper / PVC

Fireproof: yes

Cable range:0.5 mm 2 – 50mm2

Specification

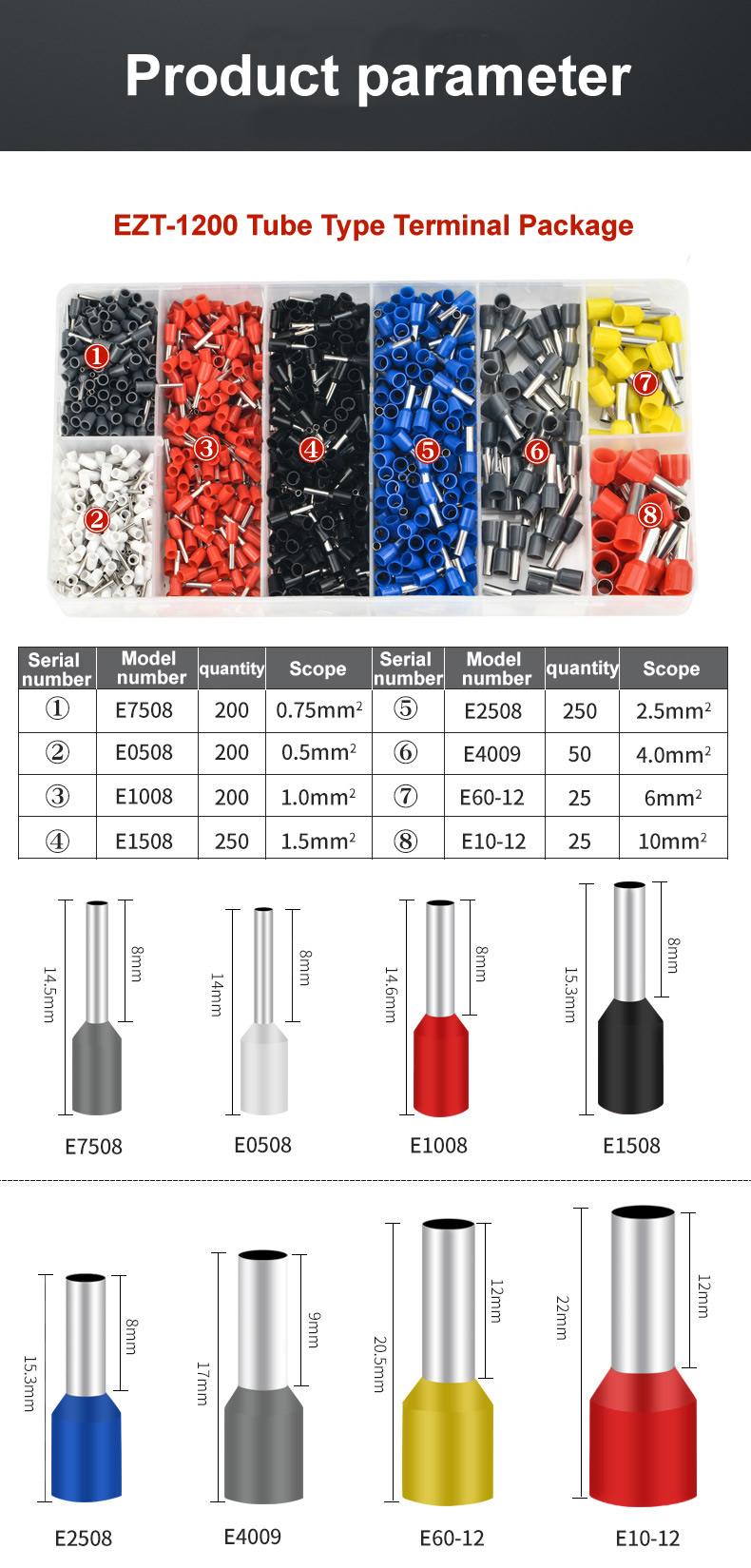

ITEM.NO.	DIMENSION						CLNLE SQ		INSULATION COLOR
	F(mm)	L(mm)	W(mm)	B(mm)	D(mm)	C(mm)	A.W.G	mm²
E0506	6	12	2.6	6	1.3	1	#22	0.5	Oranage
E0508	8	14
E0510	10	16							White
E0512	12	18
E7506	6	12.4	2.8	6.4	1.5	1.2	#20	0.75	White
E7508	8	14.6
E7510	10	16.4							blue
E7512	12	18.4
E7518	18	24.4
E1006	6	12.4	3	6.4	1.7	1.4	#18	1	Yellow
E1008	8	14.6
E1010	10	16.4							red
E1012	12	18.4
E1508	8	14.6	3.5	6.4	2	1.7	#16	1.5	Red
E1510	10	16.4
E1518	18	24.4							black
E2508	8	15.2	4	7	2.6	2.3	#14	2.5	Blue
E2512	12	19
E2518	18	25							grey

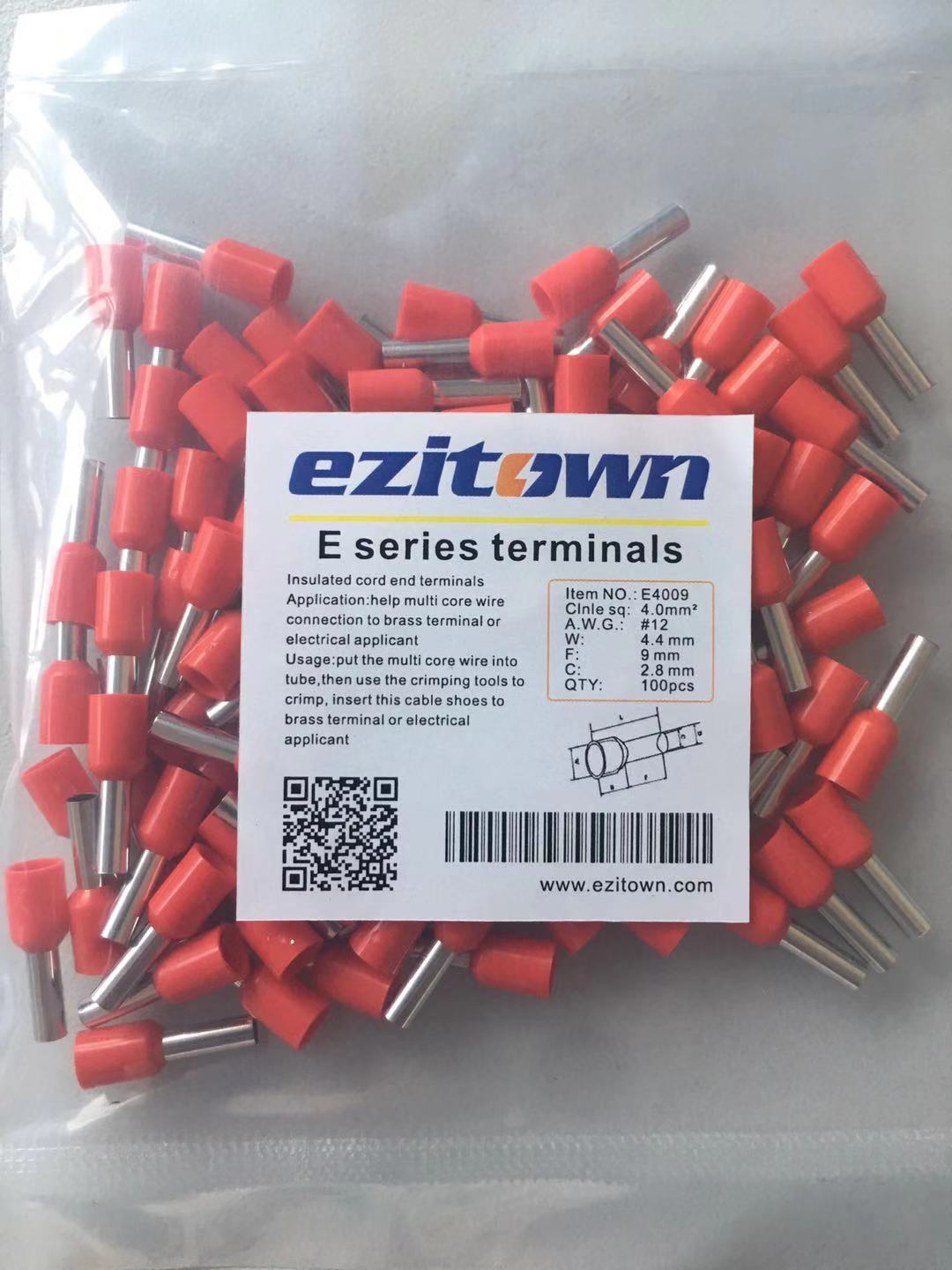

E4009	9	16.5	4.4	7.5	3.2	2.8	#12	4	Grey
E4012	12	19.5
E4018	18	25.5							Oranage
E6012	12	20	6.3	8	3.9	3.5	#10	6	Black

E6018	18	26							green
E10-12	12	21.5	7.6	9.5	4.9	4.5	#7	10	Milky white

E10-18	18	27.5							brown green
E16-12	12	22.2	8.8	10.2	6.2	5.8	#5	16	Green

E16-18	18	28.2							Milkty white
E25-16	16	29	11.2	13	7.9	7.5	#4	25	brown green

E25-22	22	35							black
E35-16	16	30	12.7	14	8.7	8.3	#2	35	Greyish brown
E35-25	25	39
E50-20	20	36	15.3	16	10.9	10.3	#1	50	Olive
E50-25	25	41
