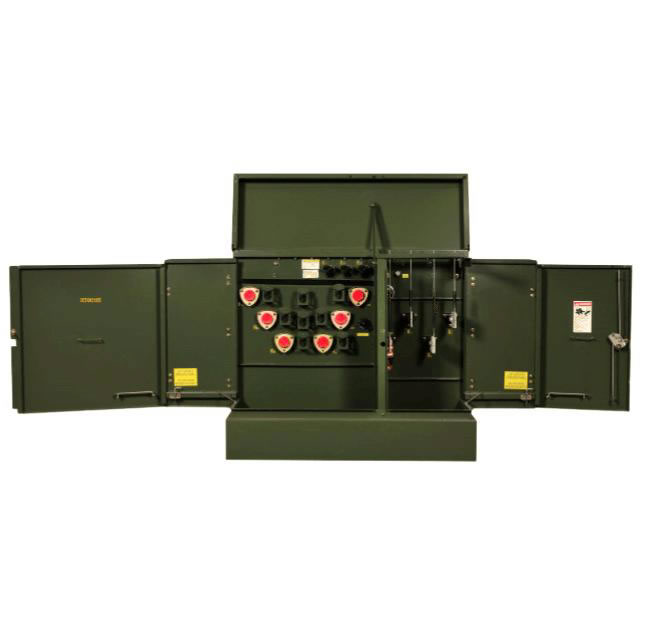

Three Phase Americ Style Pad Mounting Power Transformer
The transformers described herein are designed for the application conditions normally encountered on
electric power distribution systems. As such, they are suitable for use under the “usual service conditions”
described in IEEE Standard C57. 12.00 general requirements for liquid-immersed distribution, power
and regulating transformers.
Type Three Phase 50 or 60 Hz, 65℃Rise
Fluid Type Mineral oil meet IEC std
Tank All bracing is interal removable cover
Bushings Externally clamped with stainless steel studs and plated hardware
Coil Configuration 2-winding or 4-winding or 3-winding (Low-High-Low), 3-winding (Low-Low-High)
Capacity 45-3000kVA
HV Taps:2-2-1/2% above and blow normal ,or
4-2-1/2% below normal
Primary Voltage 2400-19920V
Secondary Voltage 208Y/120V to 14400V
++++Service condition
a) Both indoor or outdoor
b)Air temperature:
Maximum temperature: +40℃; Minimum temperature:-25℃
c) Humidity:
Monthly average humidity 95%; Daily average humidity 90% .
d) Altitude above sea level:
Maximum installation altitude: 2000m.
e) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
Fluid Type Mineral oil meet IEC std
Tank All bracing is interal removable cover
Bushings Externally clamped with stainless steel studs and plated hardware
Coil Configuration 2-winding or 4-winding or 3-winding (Low-High-Low), 3-winding (Low-Low-High)
Capacity 45-3000kVA
HV Taps:2-2-1/2% above and blow normal ,or
4-2-1/2% below normal
Primary Voltage 2400-19920V
Secondary Voltage 208Y/120V to 14400V
++++Service condition
a) Both indoor or outdoor
b)Air temperature:
Maximum temperature: +40℃; Minimum temperature:-25℃
c) Humidity:
Monthly average humidity 95%; Daily average humidity 90% .
d) Altitude above sea level:
Maximum installation altitude: 2000m.
e) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

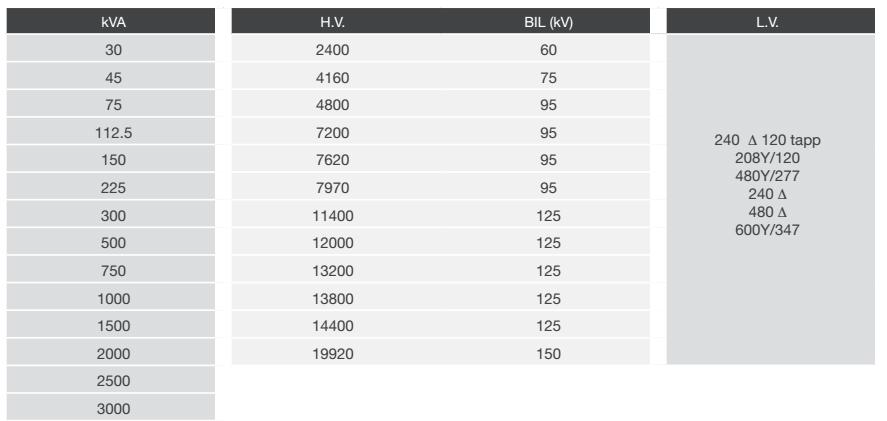

ezitown pad mounting transformer kva voltage chart

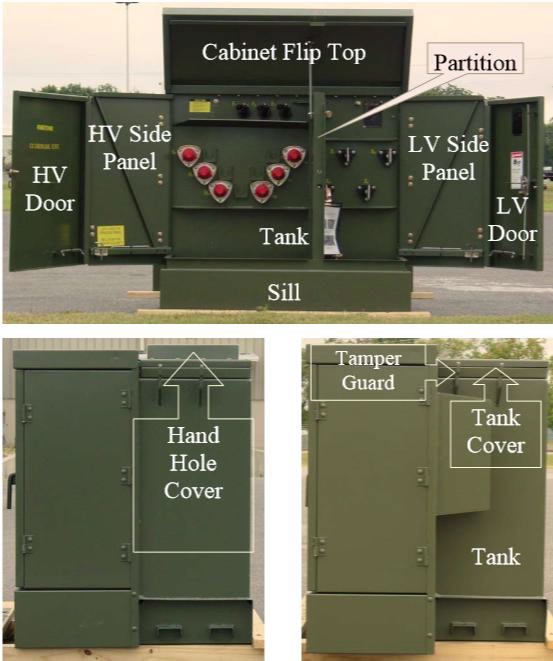

pad mounting transformer construction

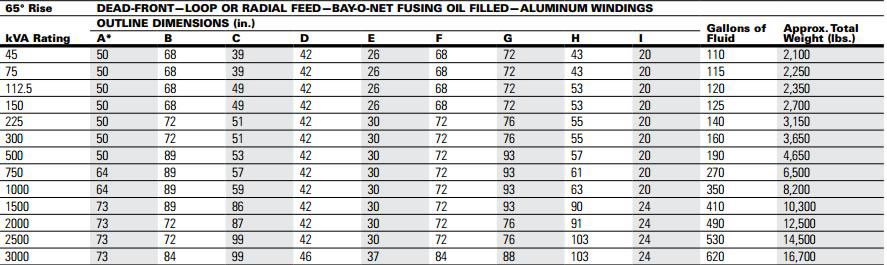

pad mounting transformer drawing
-

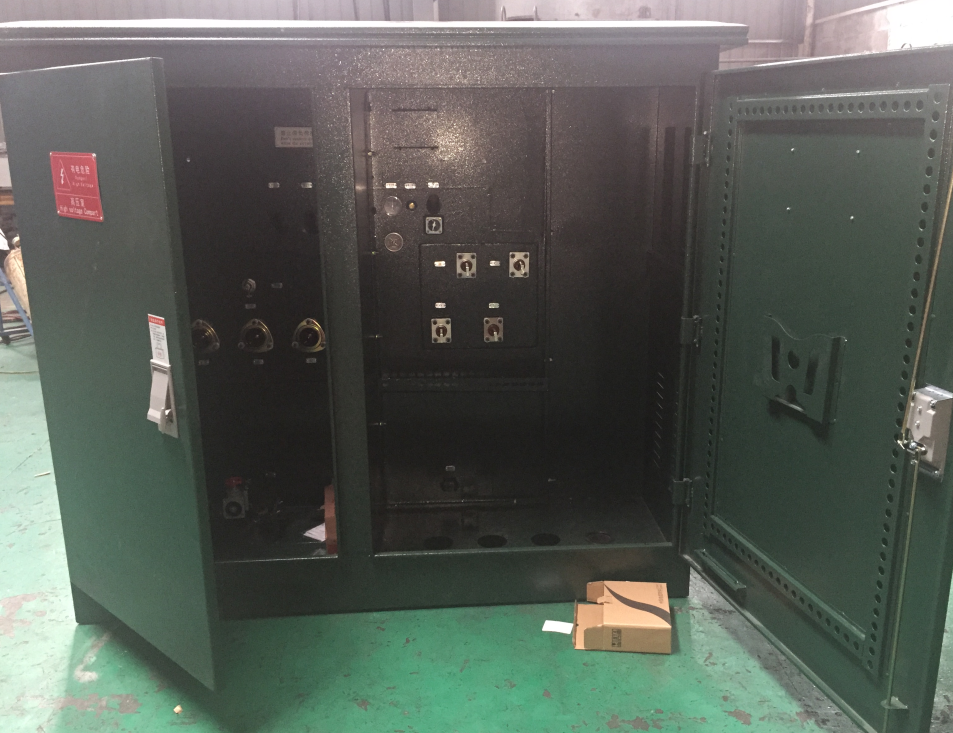

- door of pad mounting
-

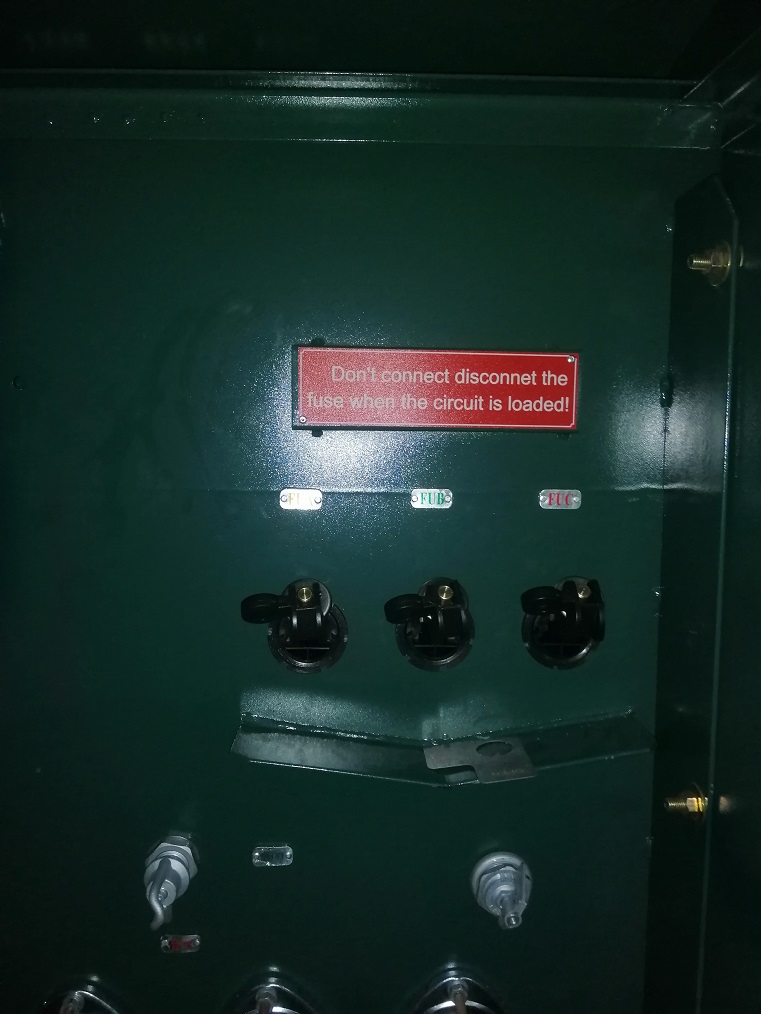

- inside of transformer
-

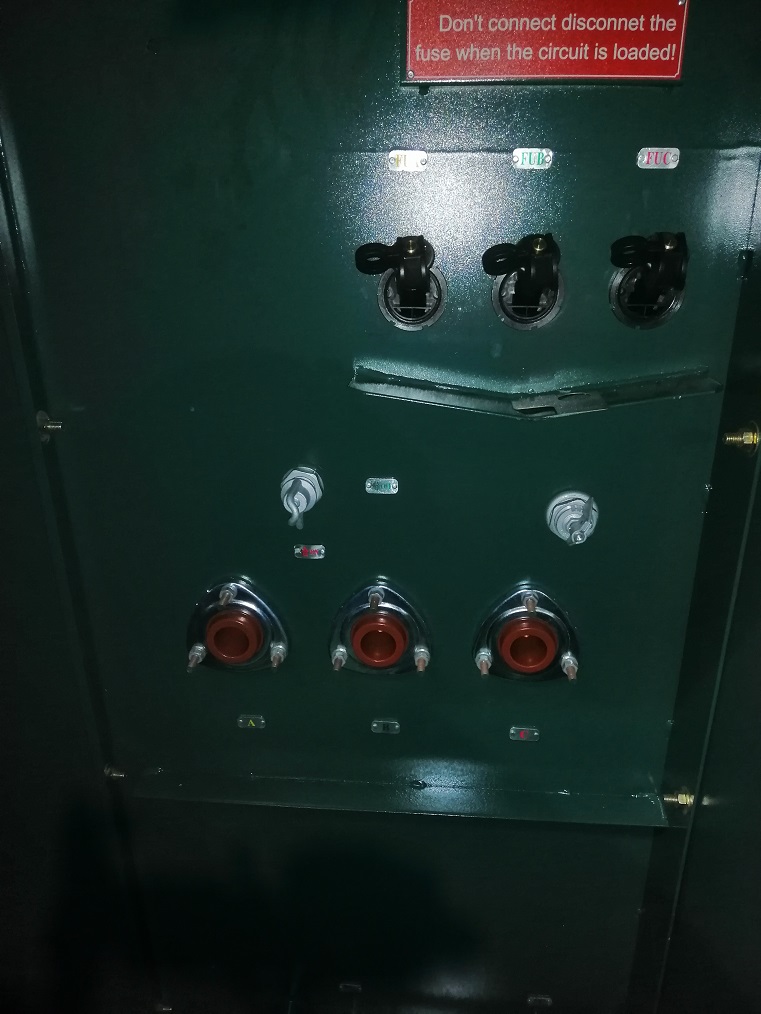

- pad transformer three phase 630kva
-
- power transformers
-

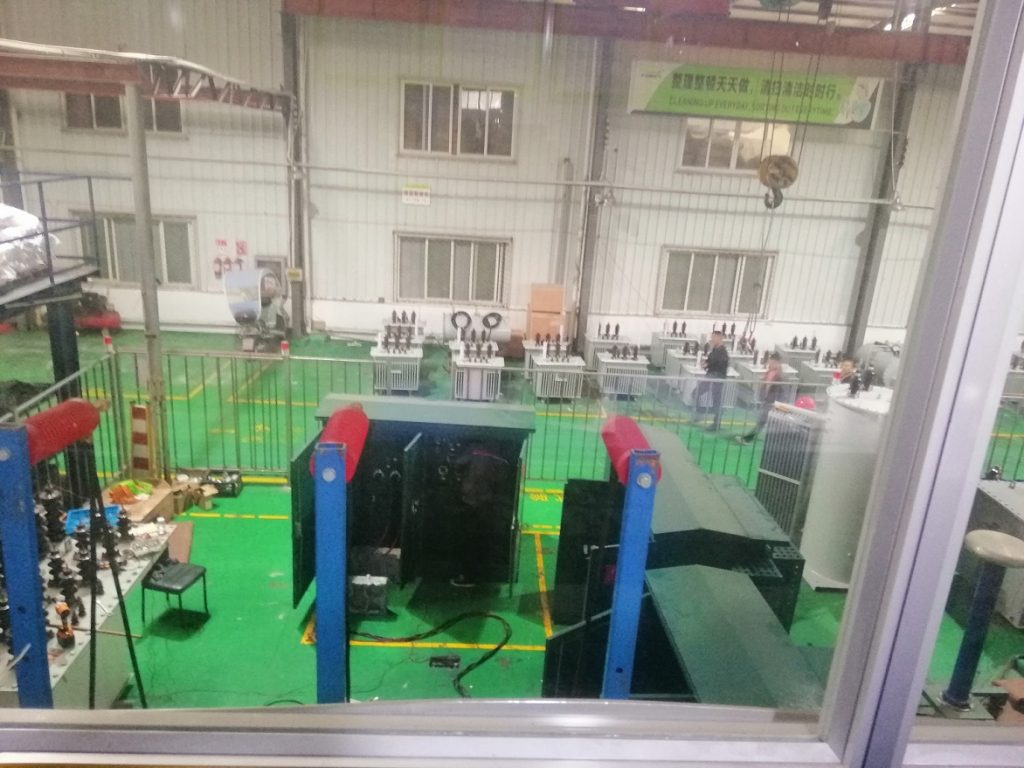

- testing of pad mounting transformer
-

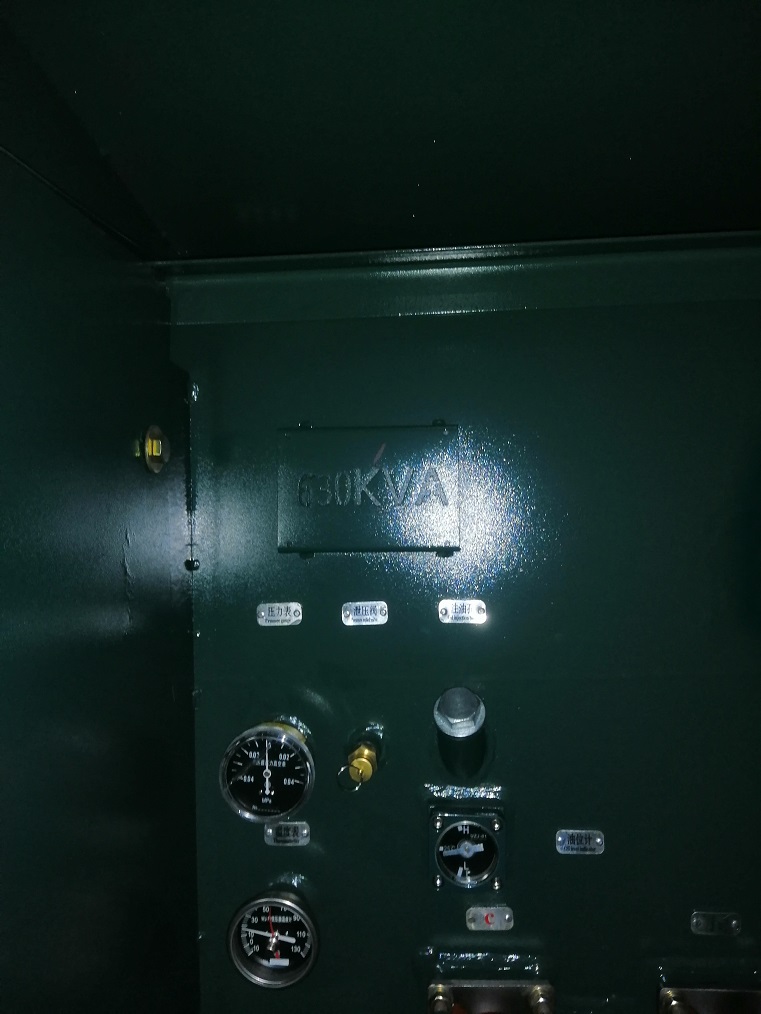

- tpn usa type transformer
-

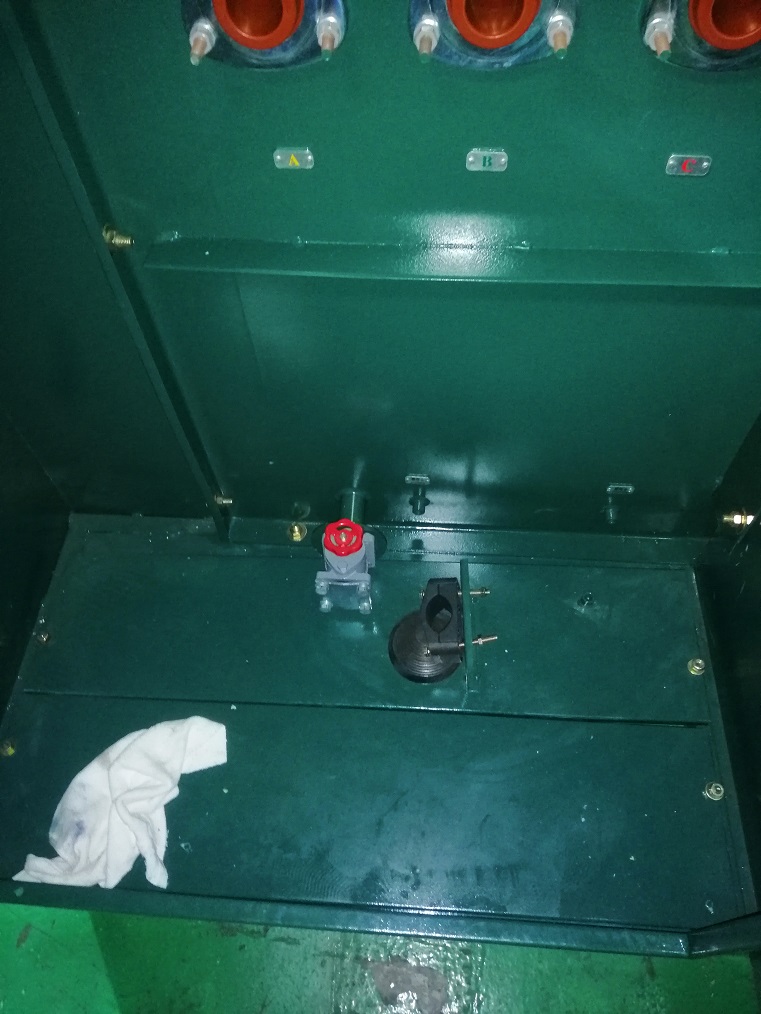

- transformer for america
