Item : HST530

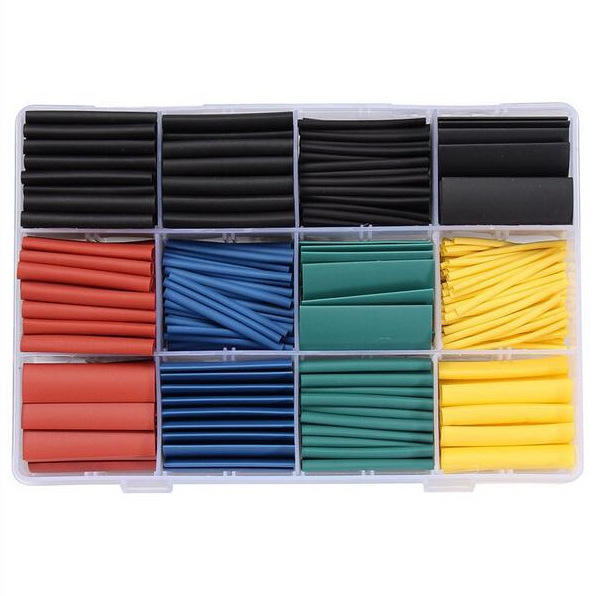

Ezitown 530pcs 2:1 Ratio Heat shrink Tube Value Pack
Heat shrink tubing is a special polyolefin heat-shrinkable tubing material, also called EVA material.
Performance: with high shrinkage, soft flame retardant, insulation corrosion function. Widely used in a variety of wire harnesses, solder joints, inductor insulation, metal pipes, rods rust, corrosion and so on. Voltage 600V.
Polymer materials with temperature from low to high experienced glassy – high-elastic state, glassy state performance close to the plastic, high-elastic state performance close to the rubber.
Heat-shrinkable tube materials used at room temperature, glassy state into a high elastic state after heating.Heat shrink tube Value pack
Use: production of the heat-shrinkable tube is heated to a high elastic state, the applied load to make it expand, to keep expanding in the case of rapid cooling, making it into the glassy state, this state is fixed to live. When using a heated, it changes back to the high elastic state, but this time there is no load, it is necessary to retraction.Heat shrink tube Value pack
530pcs heat shrink tubing insulation shrinkable tube assortment electronic polyolefin ration 2:1 wrap wire cable sleeve tubes kit
All kinstecks product comes with 18 months base warranty and friendly customer service.
Features:
530PCS heat shrink tube
2:1 heat shrink ratio
Multiple colors and multiple sizes
Included with plastic box
Specifications:
Material: environmental polyolefin
Shrinkage ratio: 2:1 ( will maximum shrink to 1/2 of its supplied diameter )
Color: 5 colors
Minimum shrinkage temp: +70°C
Full shrinkage temp: +110°C maximum
Recommended shrink temperature: 100°C
Used for solder joint protection, goup of lines marking, resistance electric capacity reason protection etc
What’s In the Box:
(Quantity + Supplied internal diameter + Single length + Color)
80pcs x 1.5 x 45mmYellow
80pcs x 2.0 x 45mmBlue
80pcs x 2.0 x 45mmBlack
60pcs x 3.0 x 45mmGreen
50pcs x 4.0 x 45mmRed
50pcs x 4.0 x 45mmBlack
30pcs x 5.0 x 45mmBlack
20pcs x 6.0 x 45mmYellow
20pcs x 8.0 x 45mmRed
20pcs x 10.0 x 45mmGreen
20pcs x 10.0 x 45mmBlue
20pcs x 10.0 x 45mmBlack

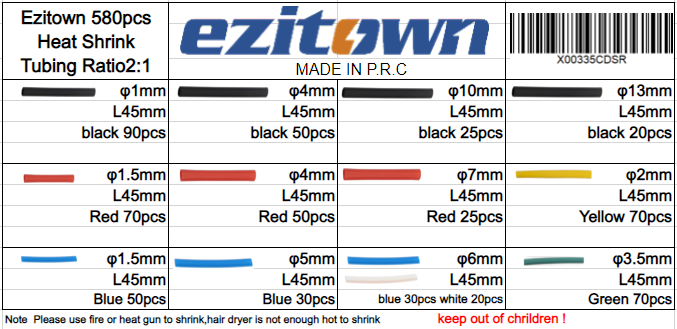

heat shrink tube 580pcs list

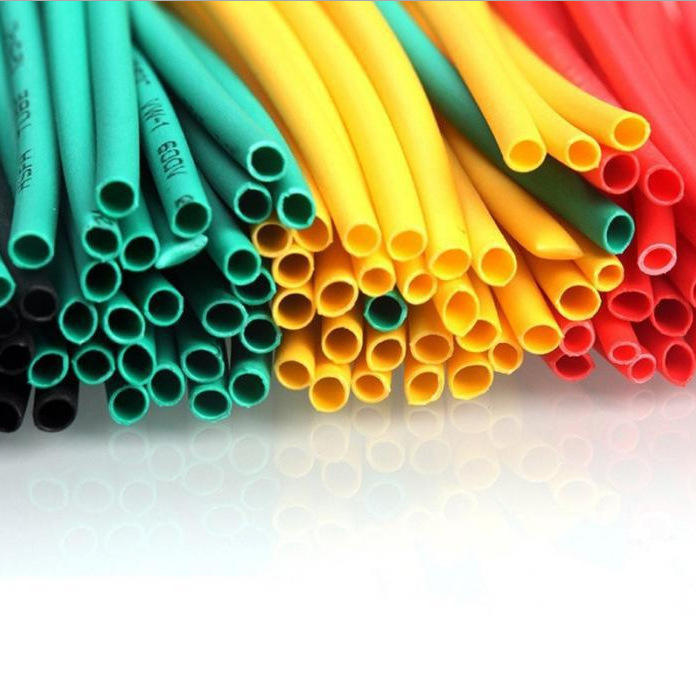

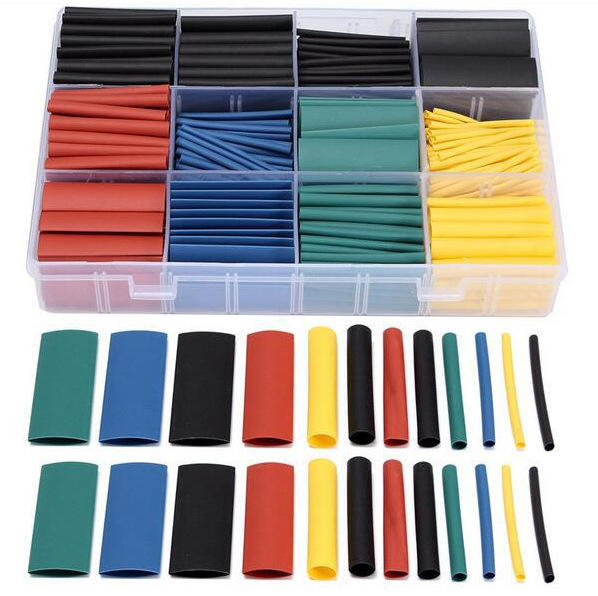

heat shrink tube value pack 530pcs

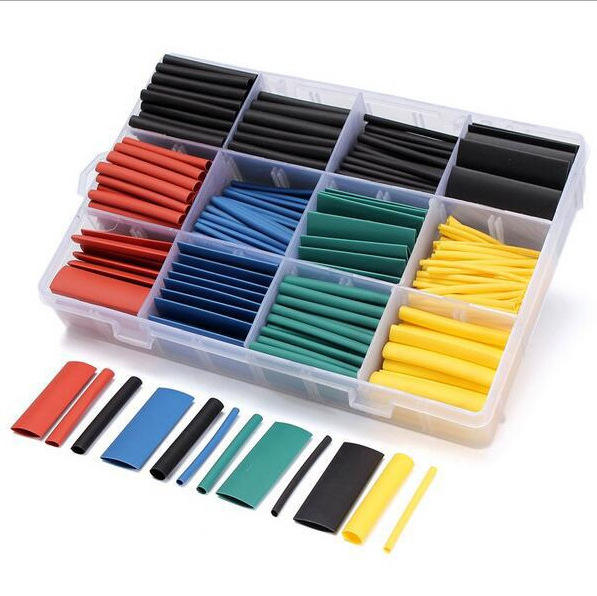

heat shrink tube value pack assortment 530pcs

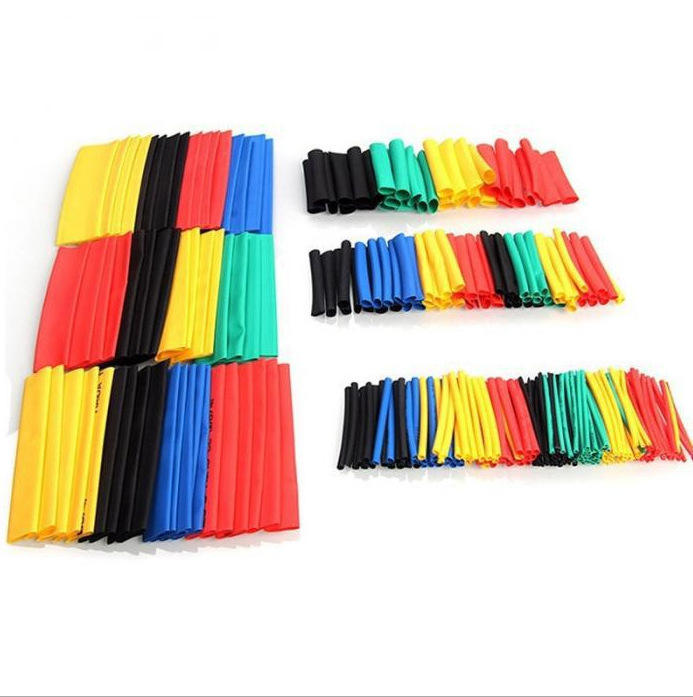

heat shrink tube value pack 2ratio1 530pcs
heat shrink tube value pack 530pcs

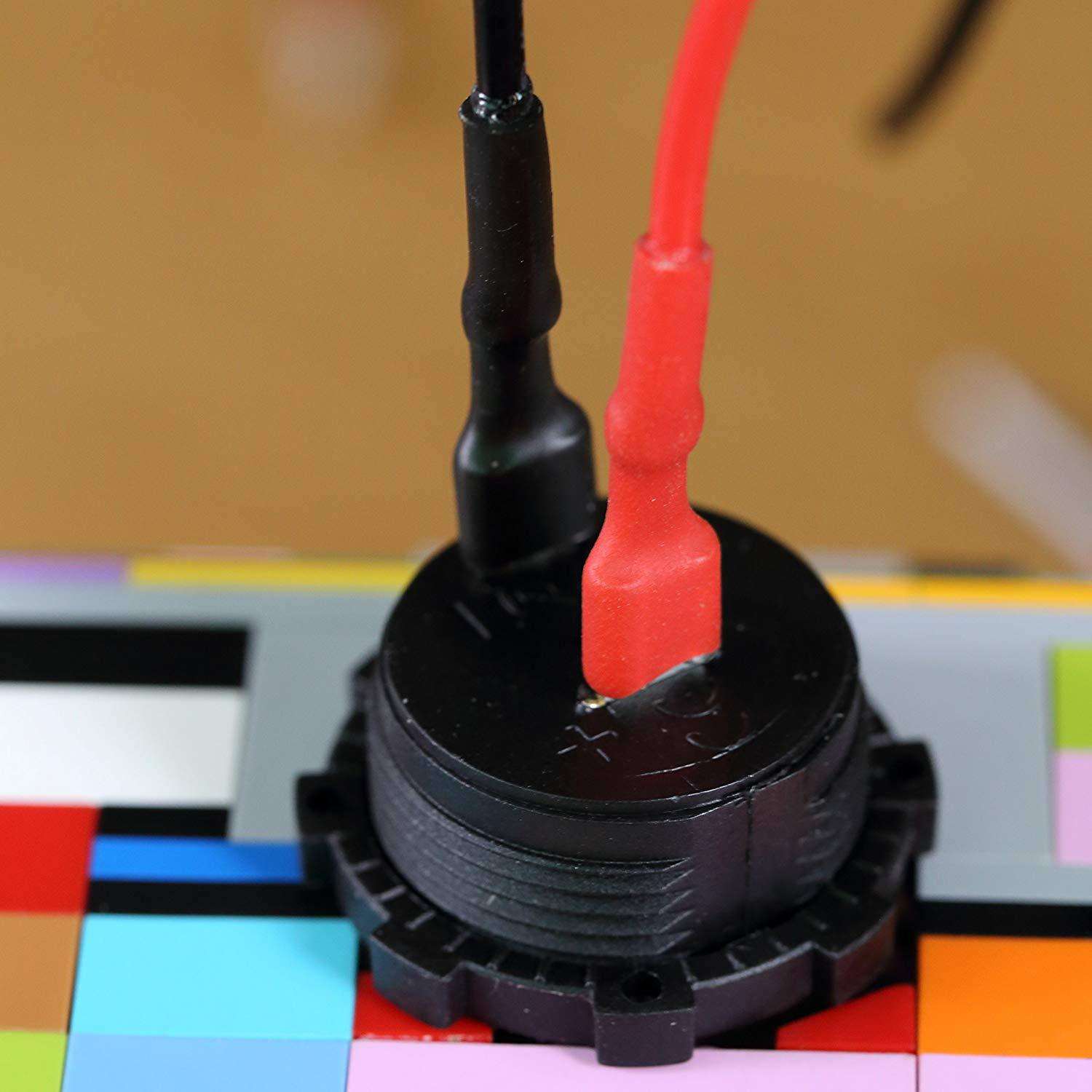

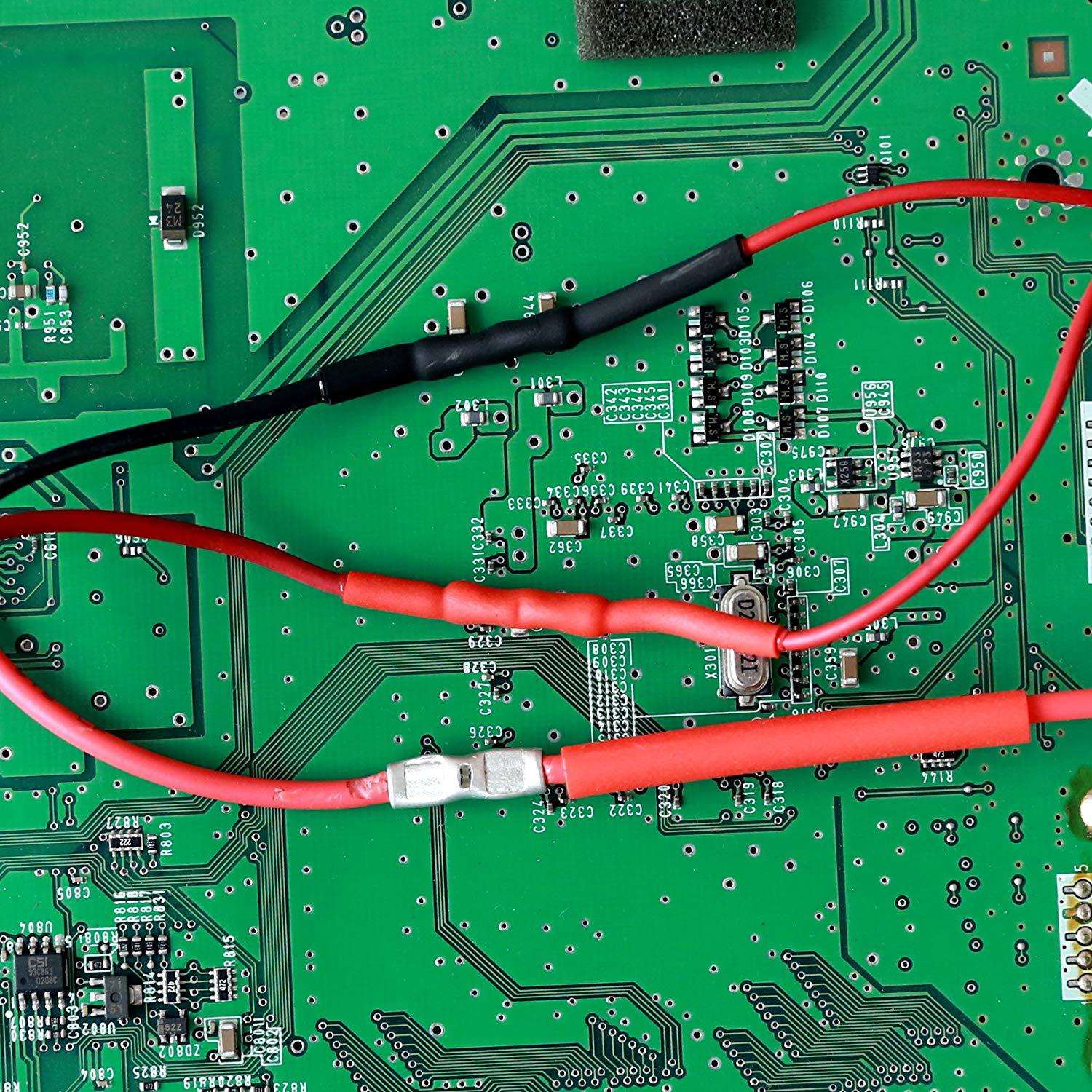

3 to 1 glued heat shrink tube

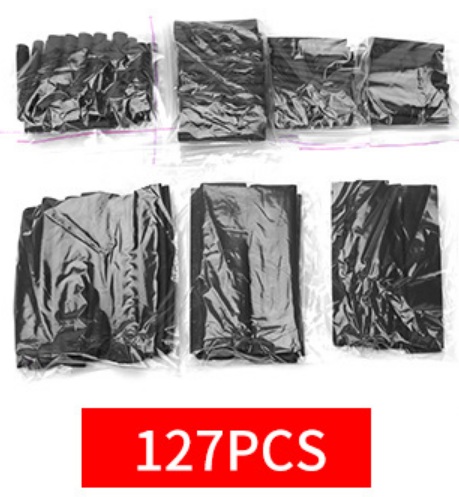

127PCS heat shrink tube value pack
127pcs heat shrink tube ktis
Specification Color PCS Length cm
2.0MM BLACK 30 40
2.5MM BLACK 25 40
3.5MM black 20 40
5.0MM BLACK 20 40
7.0MM BLACK 16 80
10MM BLACK 8 80
13MM BLACK 8 85

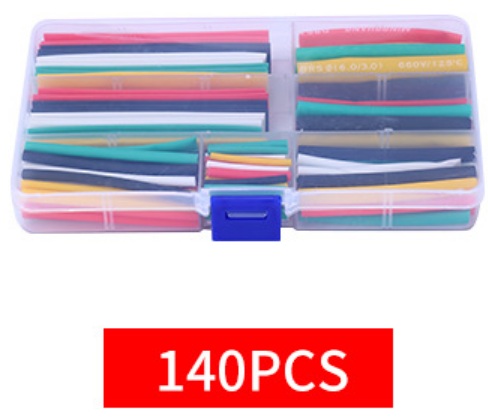

140pcs
Specification Color/PCS Length cm
2MM black/white/yellow/green/red 10 pieces each 30
3MM black/white/yellow/green/red each 5 pieces 65
4MM black/white/yellow/green/red each 3 pieces 65
5MM black/white/yellow/green/red 2 pcs. 65
6MM black/white/yellow/green/red 2 pcs. 65
8MM black/white/yellow/green/red 3 pieces each 90
10MM black/white/yellow/green/red 3 pieces each 90

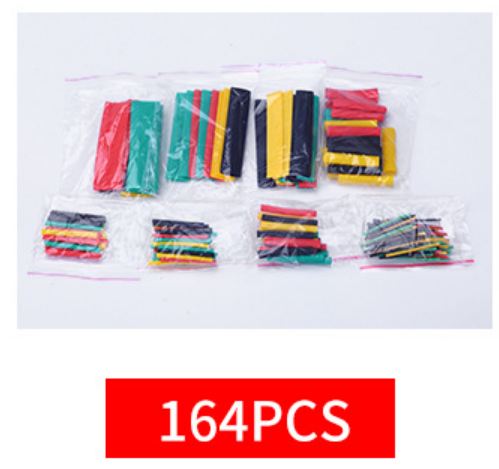

164pcs
Specification Color PCS Length cm
1.0MM yellow, black, red and green, 15 pieces each 60 40
2.0MM yellow, black, red and green, 8 pieces each 32 40
3.0MM yellow, black, red and green, 4 pieces each 16 40
4.0MM yellow, black, red and green, 4 pieces each 16 40
6.0MM yellow, black, red and green, 4 pieces each 16 40
8.0MM yellow, black, red and green, 3 pieces each 12 80
10.0MM yellow, black, red and green, 2 pieces each, 8 80
14.0MM yellow, black, red and green, 2 pieces each, 8 80

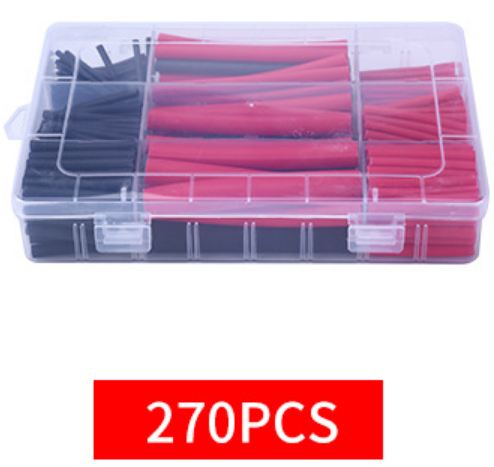

270PCS
Specification Color/PCS Length
1.6MM red x35 black x35 45
2.4MM red x40 black x40 45
3.2MM red x40 black x40 45
4.8MM red x10 black x10 90
6.4MM red x6 black x6 90
9.5MM red x4 black x4 90
280PCS
Specification Color/PCS Length
2.4MM BLACK 65 45
3.2MM BLACK 70 45
4.8MM BLACK 60 45
6.4MM BLACK 20 45
6.4MM white 30 45
7.9MM WHITE 18 45
7.9MM WHITE 17 45
9.5MM BLACK 10 45
12.7MM BLACK 10 45

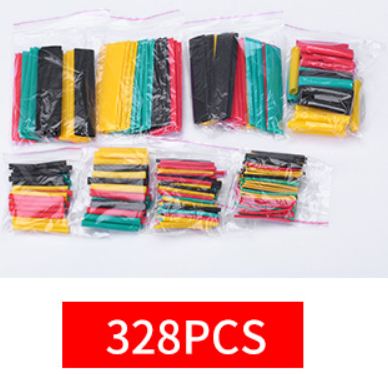

328pcs
Specification Color PCS Length cm
1.0MM yellow, black, red and green, 30 pieces each 120 40
2.0MM yellow, black, red and green, 15 pieces each 60 40
3.0MM yellow, black, red and green, 8 pieces each 32 40
4.0MM yellow, black, red and green, 8 pieces each 32 40
6.0MM yellow, black, red and green, 8 pieces each 32 40
8.0MM yellow, black, red and green, 5 pieces each 20 80
10.0MM yellow, black, red and green, 4 pieces each, 16 80
14.0MM yellow, black, red and green, 4 pieces each, 16 80

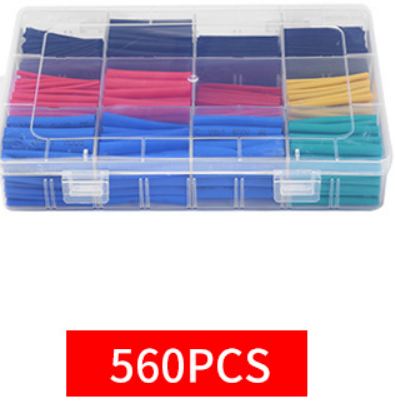

560pcs
560pcs heat shrink tube ktis
Specification color PCS length
1.0MM black 90 45
1.5MM red 70 45
2.0MM yellow 70 45
2.5MM blue 50 45
3.5MM green 50 45
4.0MM red 50 45
4.0MM black 50 45
5.0MM blue 30 45
6.0MM blue 30 45
7.0MM red 25 45
10.0MM black 25 45
13.0MM black 20 45

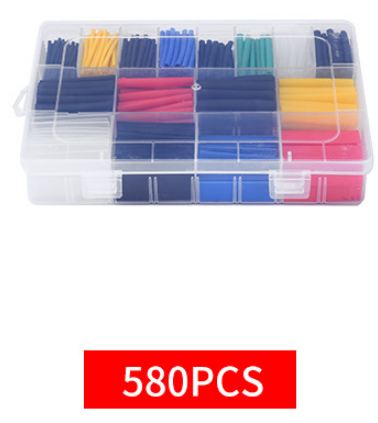

580PCS
Specification Color PCS Length cm
1.0MM BLACK 80 38
1.5MM black 80 38
2.0MM BLUE 50 38
2.0MM BLACK 50 38
2.5MM black 30 38
3.0MM GREEN 30 38
3.0MM TRANSPARENT 30 38
3.5MM black 30 38
4.0MM BLACK 40 45
4.0MM RED 30 45
5.0MM BLACK 30 45
6.0MM YELLOW 20 45
8.0MM RED 20 45
10.0MM BLUE 20 45
10.0MM BLACK 20 45
10.0MM TRANSPARENT 20 45

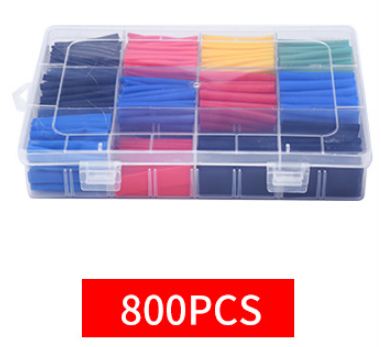

800pcs
800pcs heat shrink tube ktis
Specification Color PCS Length (cm)
1.0MM BLACK 200 45
1.5MM RED 150 45
2.0MM YELLOW 125 45
2.5MM green 70 45
3.0MM BLACK 50 45
3.5MM blue 40 45
4.0MM RED 40 45
5.0MM BLUE 30 45
6.0MM BLUE 20 45
7.0MM RED 25 45
10.0MM BLACK 25 45
13.0MM BLACK 25 45
