Ezitown produce kinds Stainless steel switch anti vandal switch metal switch, vandal resistant switch, ss push button switch, brass switch,push button switch .Switches are very common in our daily lives. Now I will introduce how to connect switches. I hope the following introduction can help you.
How to wire the anti vandal switch,metal switch, push button switch,electric switch,anti vandal switch,vandal resistant switch
- The switch terminal is generally marked with “L”, “L1”, “L2”. When the L terminal enters the line, one end of L1 and L2 is connected to L, after pressing the switch, the other end of L1 and L2 is connected to L.
- Use diagonal pliers to peel the wire first, and be careful not to leave too long a thread to avoid touching it.
- Use the L of the left switch as the live wire input, and connect the L1 and L2 of the two switches to the corresponding wiring, and then connect the right switch L to one end of the lighting lamp, and the other end of the lighting lamp to the neutral line.
There are several ways to connect the dual control switch
- After connecting the wires, be sure to wrap the ends of the lights on both sides with insulating tape to prevent leakage;
- The last remaining live wire and neutral wire are connected to the plug to complete the wiring steps;
How to wire the switch
Note: In actual operation, be sure to turn off the power before repair or installation;
The above is the method of switch wiring. Switches are very commonly used in our daily life. I hope the above introduction can be helpful to everyone.

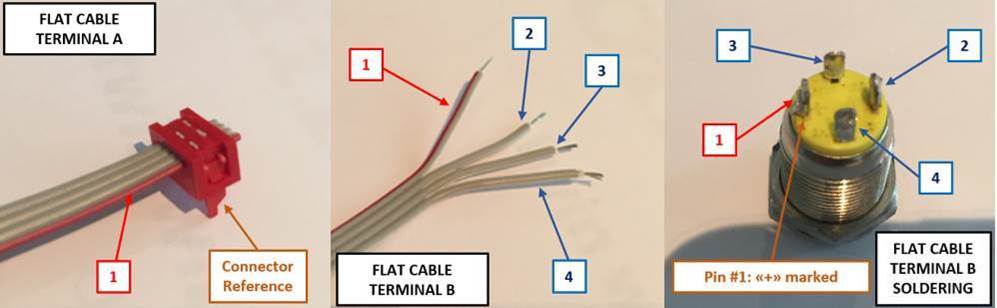

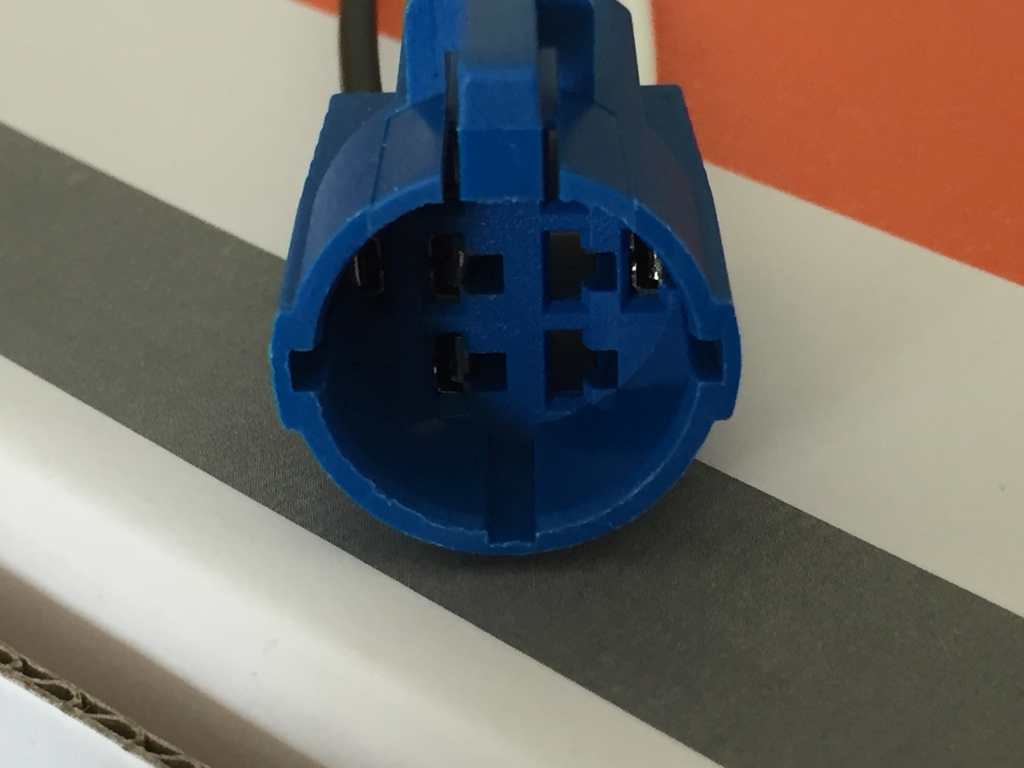

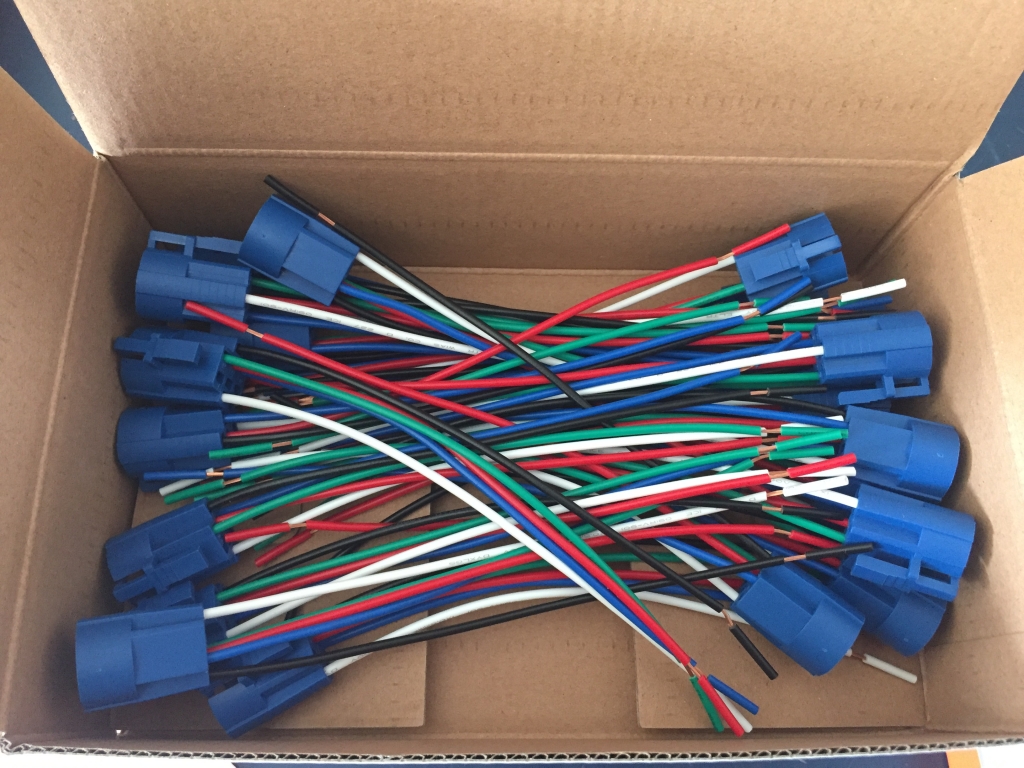

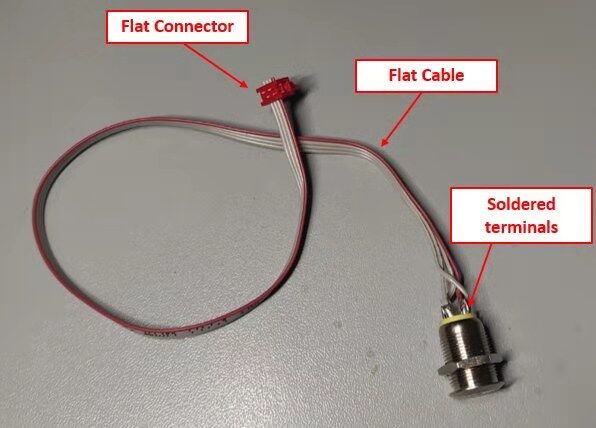

we supply wiring service with very fast job and low cost , just show requirement. we also develop fast connector quick connector for switch
