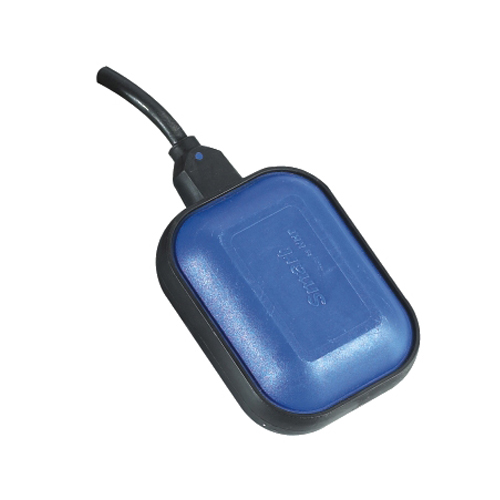

Performance And Characteristics

Simple construction, reliable performance

The product can output stable and reliable switch control signal of “making”, “breaking” without any fault action, so its reliability is very high and antinter-ference is strong.

Sturdy and durable, need not maintain

The product can be used for a long time after it is installed. Almost no maintenance and repairing problem would occur during its operation period.

Easy installation method, convenient adjustment method

The liquid level control scope can be adjusted at will with the locating piece moving up and down. Only one screw is needed to secure the signal cable to finish the installation.

Wide application scope, strong generality

The product applies to branch water, sewage acid-base solution of less than medium concentration, oils and situations requiring no pollution (for example food and drinks industry), diesel oil gasification kitchen range, and automatic fuel feeding.

Simple circuit. economical and practical

Operation voltage is 200V, and current can be up to 10A, The applied circuit of the product is simple, so application cost is very low.

Instructions for installation

May be used for direct level contor1. In accordance with product electrical specifications. In the case of approved products, the ground wire will always be included and the ground wire sheath will always be yellow/green. In this case, these two remaining wires are supplied for “high closure” or, specific request, “low closure”.

Installation of counterweight

Use wires:                                              Use wires:

“Black” and “Blue”                               “Black” and “Blue”

with these contacts the regulator     with these contacts the regulator

Closes when down                               Closes when up

Opens when. up                                   Opens when down.

The wire that is not used must be

correctly insulated

Performance and characteristics

1. Insert the cable in the counterweight. From the conical part and rotate it. Thus causing the plastic ring inserted in the opening to become detached (if necessary this operation can be facilitated with the use of a screwdriver). The ring should then be positioned in the point where it is desired to block the counterweight.

2. Force the counterweight on the ring by rotating it, using slight pressure.

The counterweight is furnished only on request.
Avoid joints in the level regulator cable. never immerge possible cable joints in the water.
