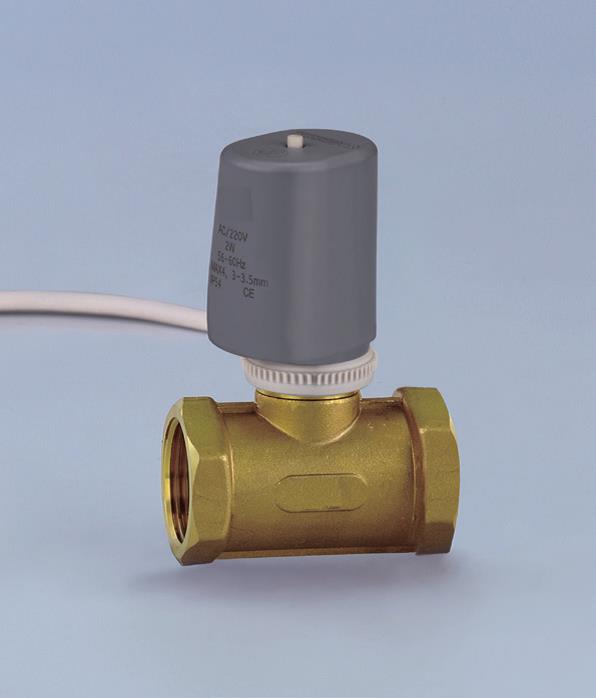

Ezitown X1001 Electric stop valve

Application

1.A valve is a device used to control the direction, pressure, and flow of fluid in a fluid system.
2.A valve is a device that allows the medium (liquid, gas, powder) in the piping and equipment to flow or stop and can control its flow.
3.Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media.

Specification

Features of Ezitown X1001 Electric stop valve:

The X1001 electric two-way stop valve is used to control the terminal water circuit of the central air-conditioning and heating system. The thermostat controls the opening and closing of the electric two-way valve to realize the automatic control of the room temperature.

The power of the electric actuator is small, the product is energy-saving, and the life is long
Good waterproof and dustproof function and airtightness
Easy to disassemble and assemble the actuator
Close strict
Large water flow, no blockage
Technical parameters:
Power supply: 220VAC 50Hz
Power: 4W
Thrust: 110N
Stroke: 3-3.5mm
Travel time: 3-5min
Lead length: 800mm
Working medium: water, fluid temperature: 5~95℃
Material: Flame-retardant PC
