Ezitown S807WX+WiFi Internet APP Smart Thermostat
Thermostat refers to a series of automatic control components that produce certain special effects and produce turn-on or turn-off actions according to the physical deformation inside the switch according to the temperature change of the working environment. It is also called temperature control switch and temperature protector. , Temperature controller, referred to as thermostat. Or the temperature is transmitted to the temperature controller through the temperature protector, and the temperature controller issues a switch command to control the operation of the equipment to achieve the desired temperature and energy saving effect.
Features of Ezitown S882 Mechanical room temperature controller:
Mechanical thermostat controller, suitable for water floor heating, electric floor heating, central air-conditioning and other temperature control systems, through the temperature sensing element inside the mechanical thermostat, and then control the actuator to automatically execute the opening and closing of the electric valve and fan air volume, so as to reach the room The desired temperature.
Model and technical parameters:
Model: S882
Power supply voltage: 220V/AC 50/60HZ
Temperature range: 10°C-30°C
Temperature accuracy ±1°C
Life: not less than 20,000 times
Material: tough flame-retardant PC
Temperature sensing element: precision metal unipolar inflatable bellows
Dimensions: 86×86×30(mm)
Installation hole distance: 60mm

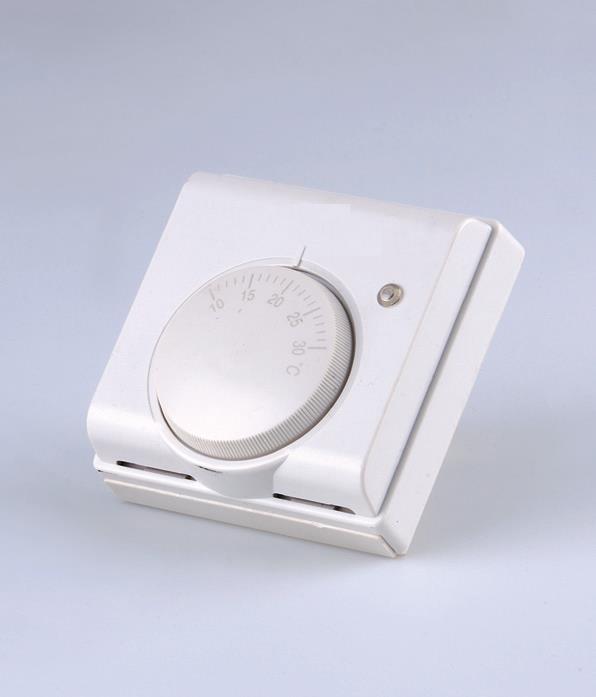

S882 Mechanical room temperature controller
