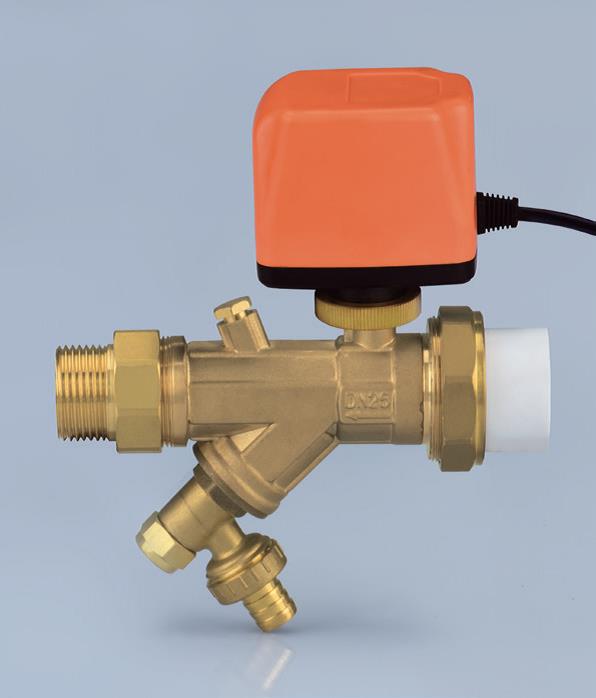

Ezitown H907 Double live connection filter electric ball valve

Application

1.A valve is a device used to control the direction, pressure, and flow of fluid in a fluid system.
2.A valve is a device that allows the medium (liquid, gas, powder) in the piping and equipment to flow or stop and can control its flow.
3.Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media.

Specification

Features of Ezitown H907 Double live connection filter electric ball valve:

H907 combines the filter and valve for online sewage discharge, which saves installation space and prevents multiple connection points, making installation quick and convenient. The indoor controller automatically controls the opening and closing of the electric ball valve to reach the temperature set in the room.

The power-on time is extremely short, the motor power is small, the product is energy-saving, the motor Longer life
Good waterproof and dustproof function and airtightness
Easy to disassemble and install the actuator
Close strict
The valve switch is very flexible
Straight water flow, large flow, no slag blocking
Technical parameters:
Power supply: 220VAC 50Hz
Power: 4W
Torque: 2.5N-m
Nominal pressure: 1.6Mpa
Travel time: 15~18S
Working medium: water, fluid temperature: 5~95℃
