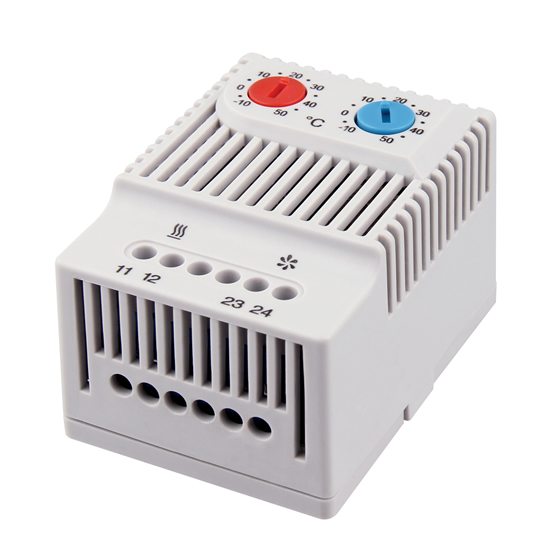

Dual thermostat
Item : ZR 011
▋ NO and NC in one casing
▋ Separate adjustable temperatures
▋ High switching capacity
▋ Terminals easily accessible

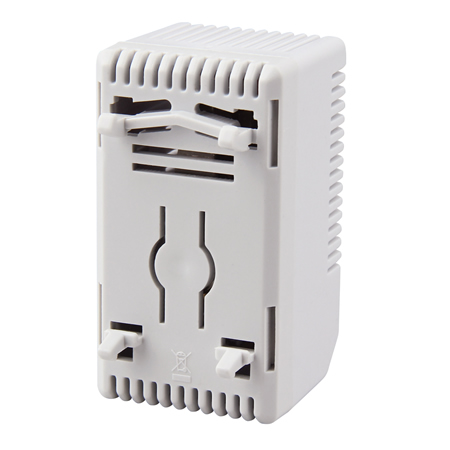

▋ Clip fixing

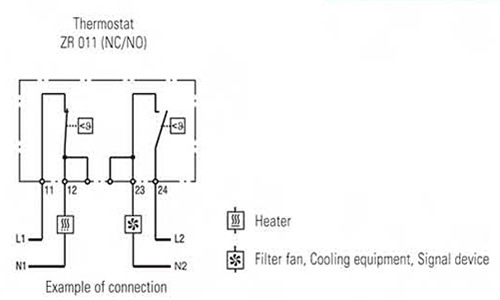

Two Dual thermostat in one casing:
Dual thermostat (contact breaker, normally closed) for regulating heaters.
Dual thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.
Two thermostats in one casing:
Dual thermostat (contact breaker, normally closed) for regulating heaters.
Dual thermostat(contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when Dual thermostat limit has been exceeded.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.
| Switch temperature difference | 7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Contact resistance | < 10m |
| Service life | > 100,000 cycles |
| Max. Switching capacity | 250VAC, 10 (2) A |
| 120VAC, 15 (2) A | |
| DC 30W | |
| EMC | acc. To EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
| Connection | 4-pole terminal, clamping torque 0.5Nm max.: |
| rigid wire 2.5mm² | |
| stranded wire (with wire end ferrule) 1.5mm² | |
| Mounting | clip for 35mm DIN rail, EN50022 |
| Casing | plastic according to UL94 V-0, light grey |

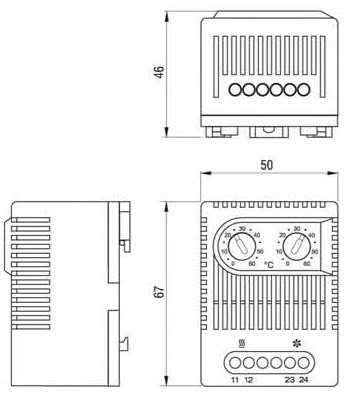

| Dimensions | 67 x 50 x 46mm |
| Weight | approx. 90g |
| Fitting position | variable |
| Operating / Storage temperature | -45 to +80°C (-49 to +176°F) |
| Protection type | IP20 |
| Approvals | UL File No. E164102 |
| |||||||||||||||||||||||||||||||||||
| *For regulating heat exchangers and fans (e.g. LE 019) and as an alarm contact for monitoring the interior temperature of electronic enclosures. | |||||||||||||||||||||||||||||||||||
