fan heater

Item : CR 130

▋ Compact design
▋ Double insulated
▋ Integrated thermostat or hygrostat
▋ Optional clip or screw fixing

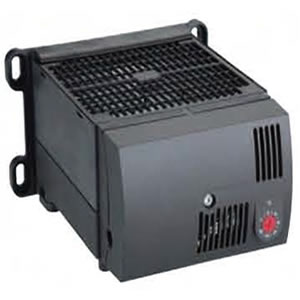

The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric / electronic components. The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control. The CR 130 was designed as a stationary unit for wall fixing. For fixing on the bottom of the enclosure the fan heater CR 030 is recommended.

fan heater

The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric / electronic components. The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control. The CR 130 was designed as a stationary unit for wall fixing. For fixing on the bottom of the enclosure the fan heater CR 030 is recommended.

Heating elementhigh performance cartridge
Temperature safety cut-outto protect against overheating in case of fan failure.
automatic reset
Heater bodyextruded aluminium profile
Axial fan, ball bearingairflow 160m3|/h, free flow
service life 50,000h at 25℃ (77°F)

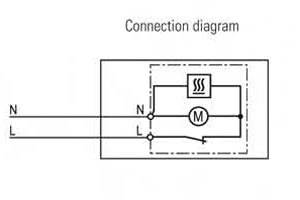

Connection2-pole max. 2.5mm2, clamping screw with strain relief.
torque 0.8Nm max.
Casingplastic according to UL94 V-0, black
Mountingclip for 35mm DIN rail, EN 50022 or screw fixing (M6)
Fitting positionhorizontal

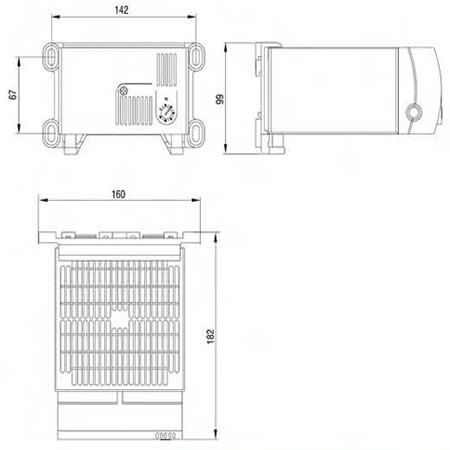

Dimensions182×160×99mm
Weightapprox. 1.45kg
Operating* / Storage temperature-45 to +70℃ (-49 to +158°F)
Protection type / Protection classIP20 / Ⅱ(double insulated)
Noteother heating capacities from 200W up available on request
*Operating temperature of heater with integrated hygrostat: 0 to +60℃ (+32 to +140°F)
Art. No.ModelOperating voltageHeating capacitySetting range
13051.0-00Fan Heater with thermostat230VAC, 50/60Hz950W0 to +60℃
13051.0-02Fan Heater with hygrostat230VAC, 50/60Hz950W65% RH, factory-set
13059.9-00Fan Heater with thermostat120VAC, 50/60Hz950W+32 to +140°F
*according to UL499 in combination with UL508A
