Item : C25-10L
C shape aluminium Din rail
C shape din rail , c shape rail for mcb, din rail for terminal block, din rail for modular electric,aluminium din rail for circuit breaker,25mm width din rail
Material: Aluminium
Thickness:1.1 mm is standard in stock, 1.2mm or 0.9mm can be made customize
Finishing: aluminium original surface
Width: 25mm
Height: 10mm
Length:1 meter , 2meter , or customize length

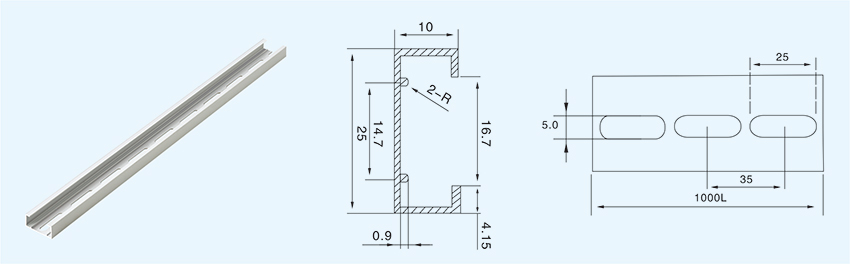

C shape aluminum din rail 10x25mmx0.9mm or 1.1mm thickness
| Model No. | Item | Dimensions mm | Length meters | |||
| W | H | T | Hole size mm | |||
| C25-10L | C25-10L | 25 | 10 | 0.9/1.1 | 5.2*25 | 1m ,2m |
Product Model: C25-10L(1.1mm)
- Material:aluminium
- Product Size: 25mm (W) * 10mm (High) * 1.1mm (Thickness) * 1 m / 2 m (Length)
- Hole size: Φ4.8*25(Standard hole pattern)
- Remark: When the batch, can be customized according to customer special holes, special length of the rail.

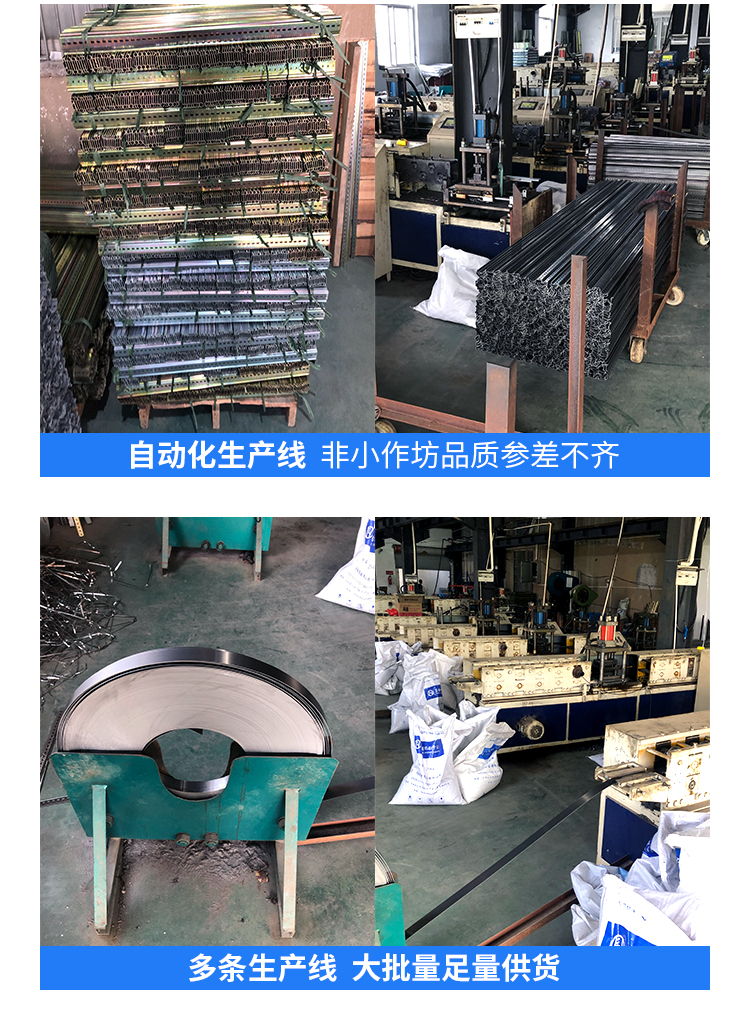

Steel din rail workshop

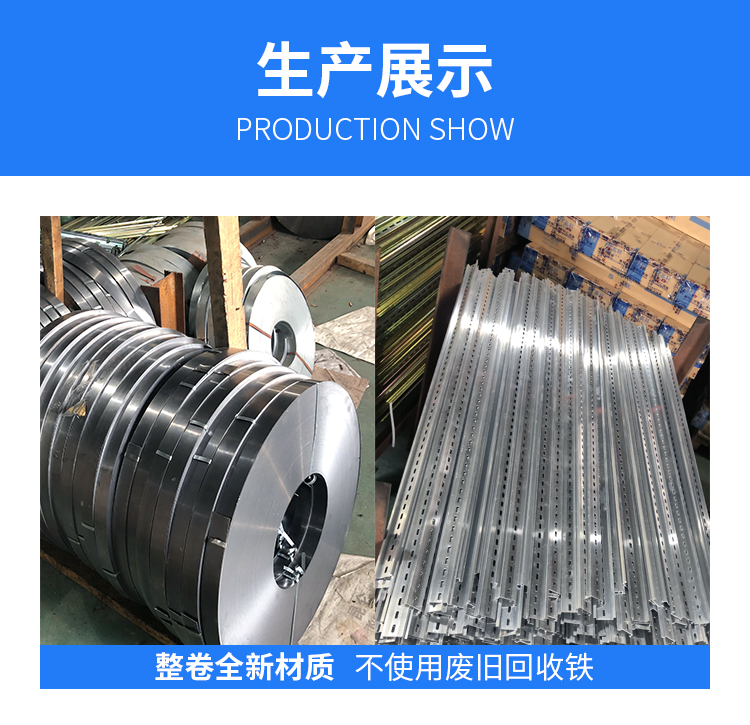

Steel din rail material

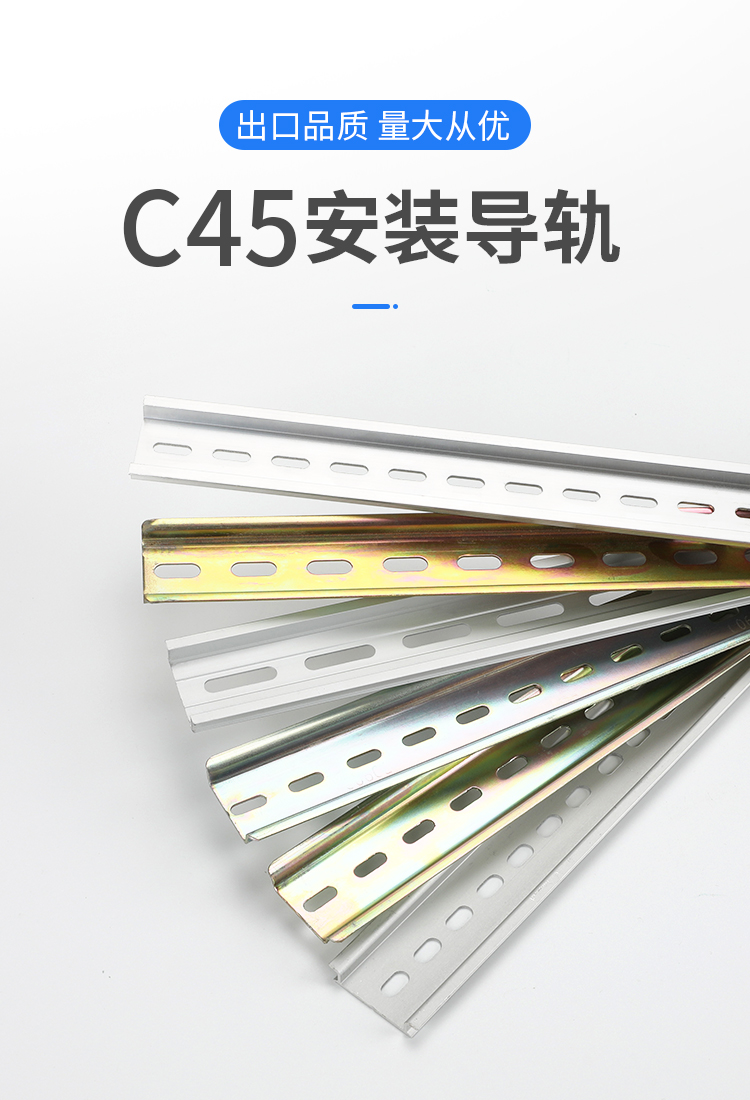

coating color of din rail
