AHC8 AHC8A Time Switches
Item : AHC8 AHC8A
Details :
Time Switches, time relay,timer relay,timing switch,weekly timer,
electric timer,din rail mounting timer,timer relay switch,automatically off switch
Ezitown ,manufacturer of electric and electrical products. such as distributin box, circuit breaker ,wiring accessories, etc .
europe and america are our mainly market. Almost of our worker with more than 10 years experience in electric manufacturing.All of these will take care of your order.

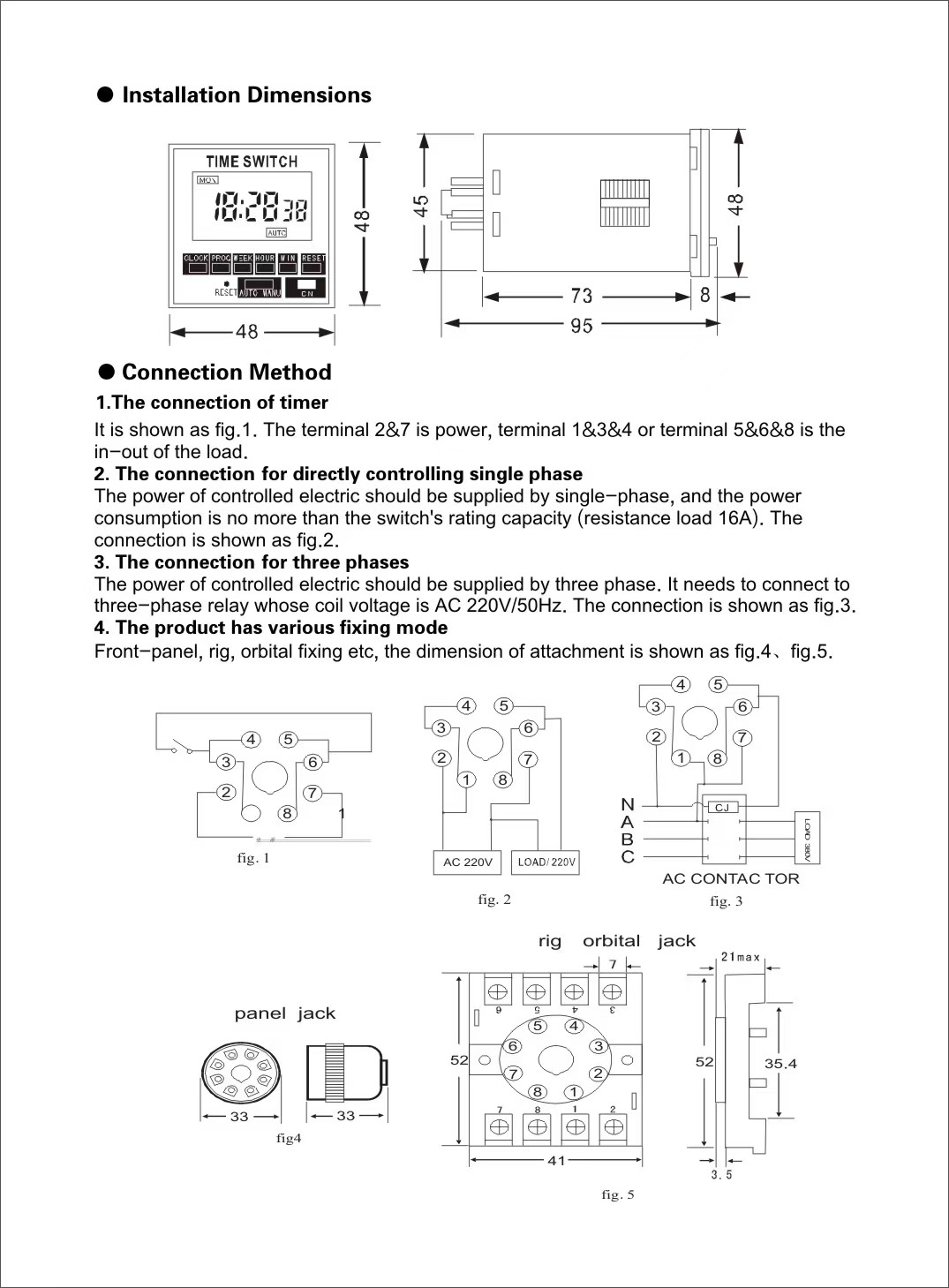

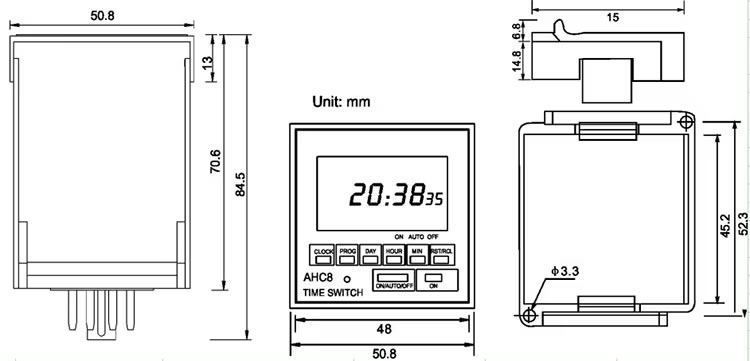

AHC8 TIMER SWITCH DIMENSION
AHC8 ELECTRIC DIAGRAM

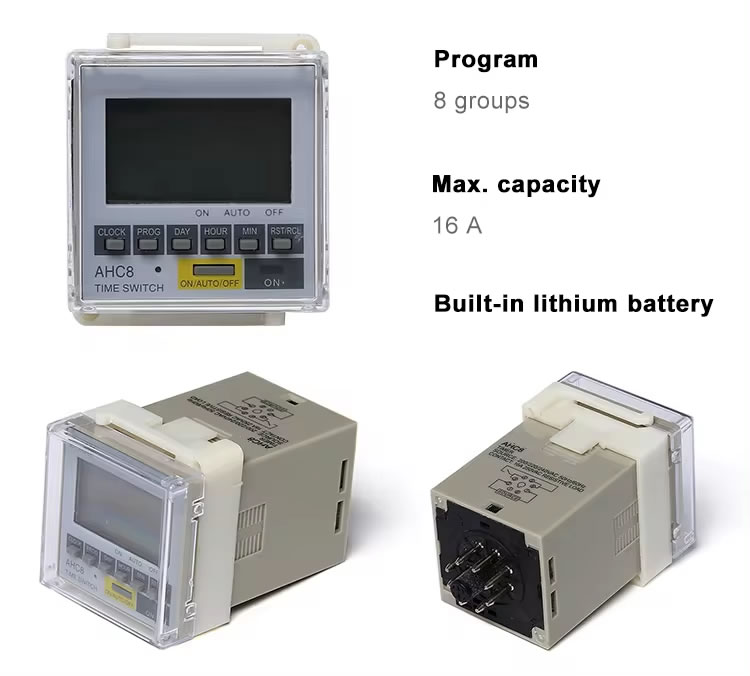

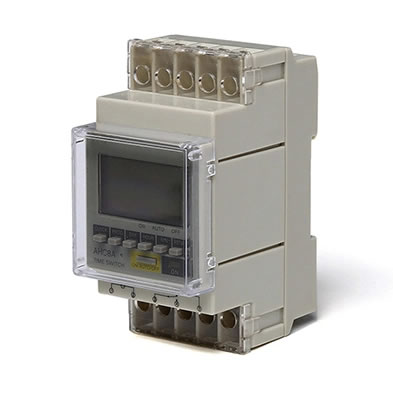

ezitown front face timer switch AHC8A

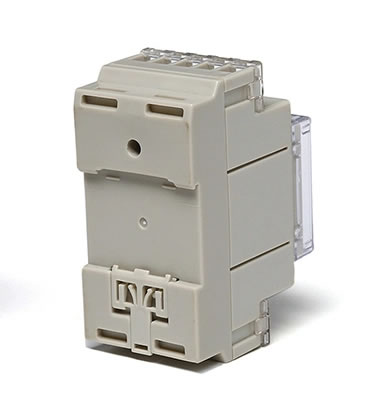

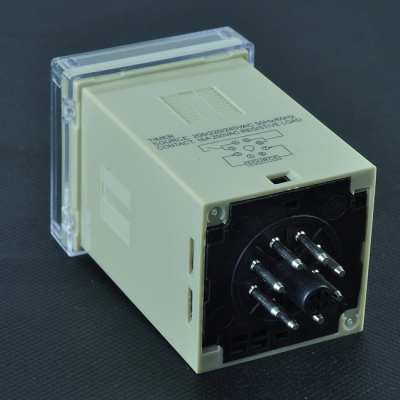

ezitown timer switch AHC8A backside

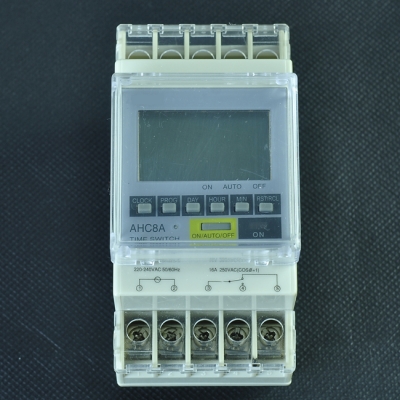

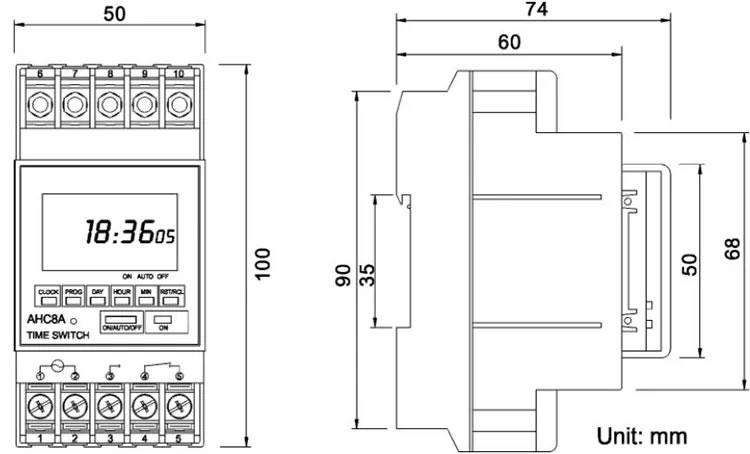

timer switch AHC8A
Item : AHC8 AHC8A
Timer switch, time relay,timer relay,timing switch,weekly timer,
electric timer,din rail mounting timer,timer relay switch,automatically off switch
AHC8:
| CLASSIFICATION | WEEKLY PROGRAMMABLE | |
| MODEL | AHC8 | |
| DIMENSIONS(mm) | 48×48×95 | |
| FULL TIMING RANGE | Per week or per day cycle | |
| RATED VOLTAGE | AC 220V 50/60HZ 85﹪～110﹪ | |
| CONTACT CACPAITY | 12A AC 250V | |
| CONTACT FORM | INO | |
| ACCURACY | ≤2S/DAY(℃) | |
| EXPECTANCY DISPLAY | LCD | |
| MOUNTING HOLES | 45×45mm | |
| MOUNTING FORM | Front-panel, DIN RAIL | |
| LIFE | ELECTRICAL | ≥105 times |
| MECHANICAL | ≥105 times | |
| OPERATING MODE | ﹣20℃～﹢50℃ | |
| PROGRAMMABLE | 9 time/week or day | |
| WORK MODE | 15 DAY | |
| CLASSIFICATION | WEEKLY PROGRAMMABLE | |
AHC8A
| MODEL | AHC8A | |
| DIMENSIONS(mm) | 50×100×66 | |
| FULL TIMING RANGE | Per week or per day cycle | |
| RATED VOLTAGE | AC 220V 50/60HZ 85﹪～110﹪ | |
| CONTACT CACPAITY | 12A AC 250V | |
| CONTACT FORM | INO,INC/INO | |
| ACCURACY | ≤2S/DAY(℃) | |
| EXPECTANCY DISPLAY | LCD | |
| MOUNTING HOLES | …… | |
| MOUNTING FORM | Front-panel, DIN RAIL | |
| LIFE | ELECTRICAL | ≥105 times |
| MECHANICAL | ≥105 times | |
| OPERATING MODE | ﹣20℃～﹢50℃ | |
| PROGRAMMABLE | 9 time/week or day | |
| WORK MODE | 15 DAY | |
AHC8 and AHC8A are the same function, just different wire connection way.
