Item : XGN
Details :
HIGH VOLTAGE
SWITCHGEAR AND
CONTROL EQUIPMENT

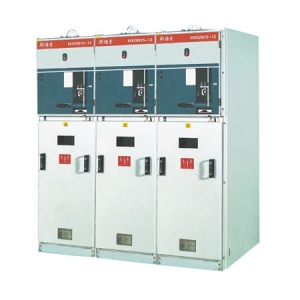

XGN15-12 type AC metal enclosed ring net switchgear cabinet
referred to as “switching equipment”) for the rated voltage of 12KV, rated
current 630A and below the ring or the radiation power type power supply
system , particularly suitable for install into prefabricated substation as the
electrical can adopted the SFL-12/24 type from ABB, also can used the
FLN36-12D type SF6 load switch . The operation mode have manual and
Electric two type .The product complies with:GB3906-2006, IEC298 standards.
The body by the deposition of aluminum zinc steel plate forming by modulus
assembled . The Protection degree was up to IP3X, and have reliable interlock
and anti- maloperation function . This products have the small size , light
weight ,easy to operate power light, interlocking reliable, maintenance-free,
etc.characteristics.
Normal working conditions
Environment temperature: ﹣15℃～﹢40℃
Altitude: 1000M
Relative humidity: daily average shall not exceed 95%, and
monthly average shall not exceed 90%.
Earthquake intensity : ≤8 degree
Installation & operation :location for installing shall be no fire
or explosion danger, no corrosive gas or dust ,no sharp impact.
If you have any requirement, please contact with us and
negative with us.
Item | Unit | Data |
Rated voltage | kV | 3.6,7.2,12 |
Rated frequency | Hz | 50 |
Circuit breaker rated current | A | 630,1250,1600,2000,2500 |
Switchgear rated currents | kA | 630,1250,1600,2000,2500 |
Rated peak withstand current | kA | 40,50,63,80,100,125 |
Rated short-circuit breaking current | kA | 16,20,25,31.5,40 |
Rated short-circuit making current | kA | 40,50,63,80,100,125 |
Power frequency withstand voltage(1min) | kA | 42 |
Lighting impulse withstand voltage | kA | 75 |
Protection degree | Switchgear enclosure IP4X, inter-chamber(door opened) for IP2X | |

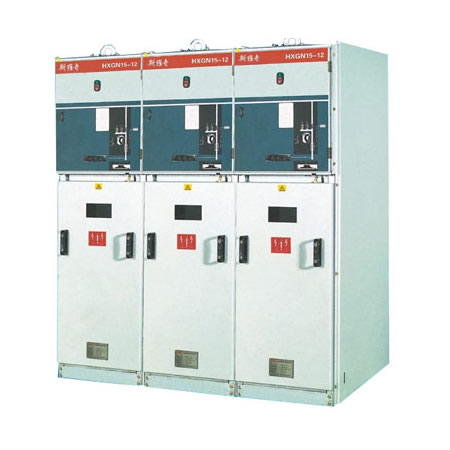

XGN15-12-type-AC-metal-enclosed-ring-
