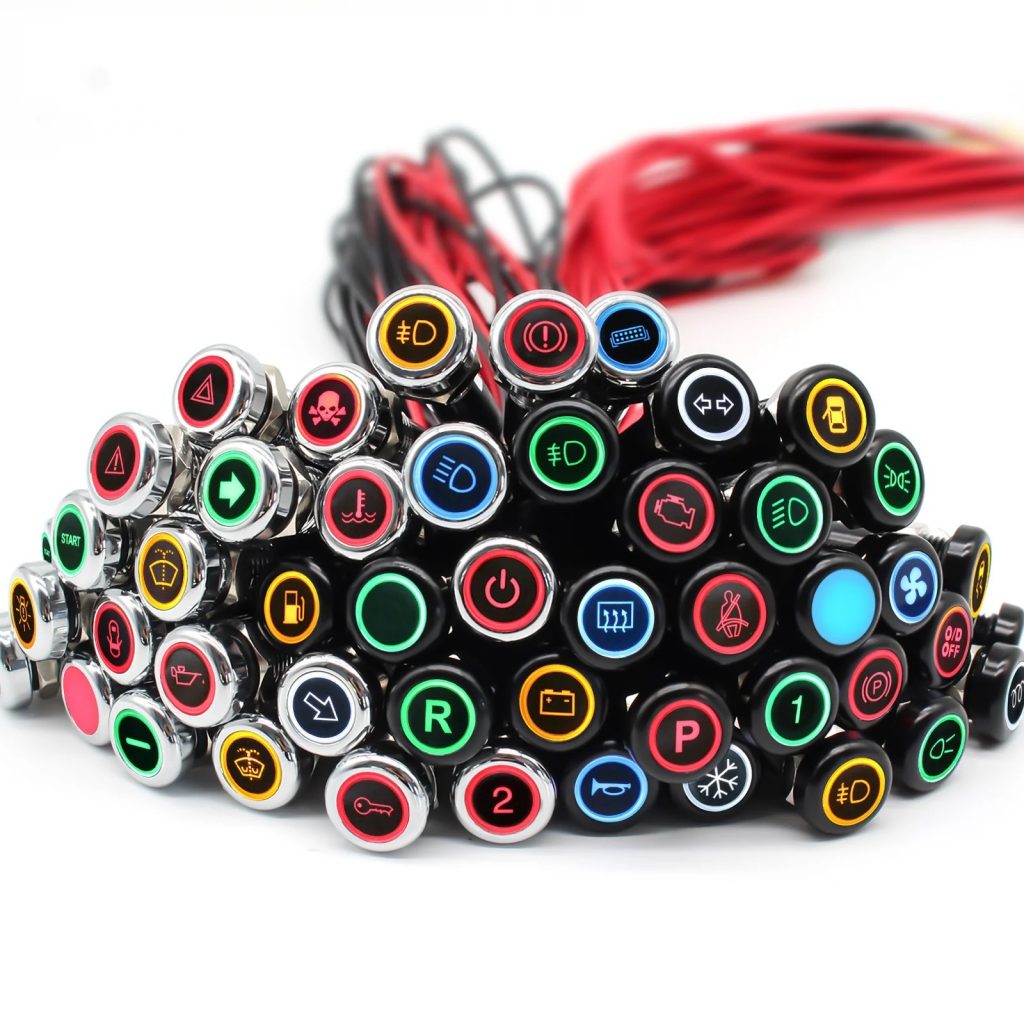

8mm logo indicator lamp
8mm logo indicator lamp

8mm Customize symbol LED

stainless steel casing

SS indicator 12v DC 2A

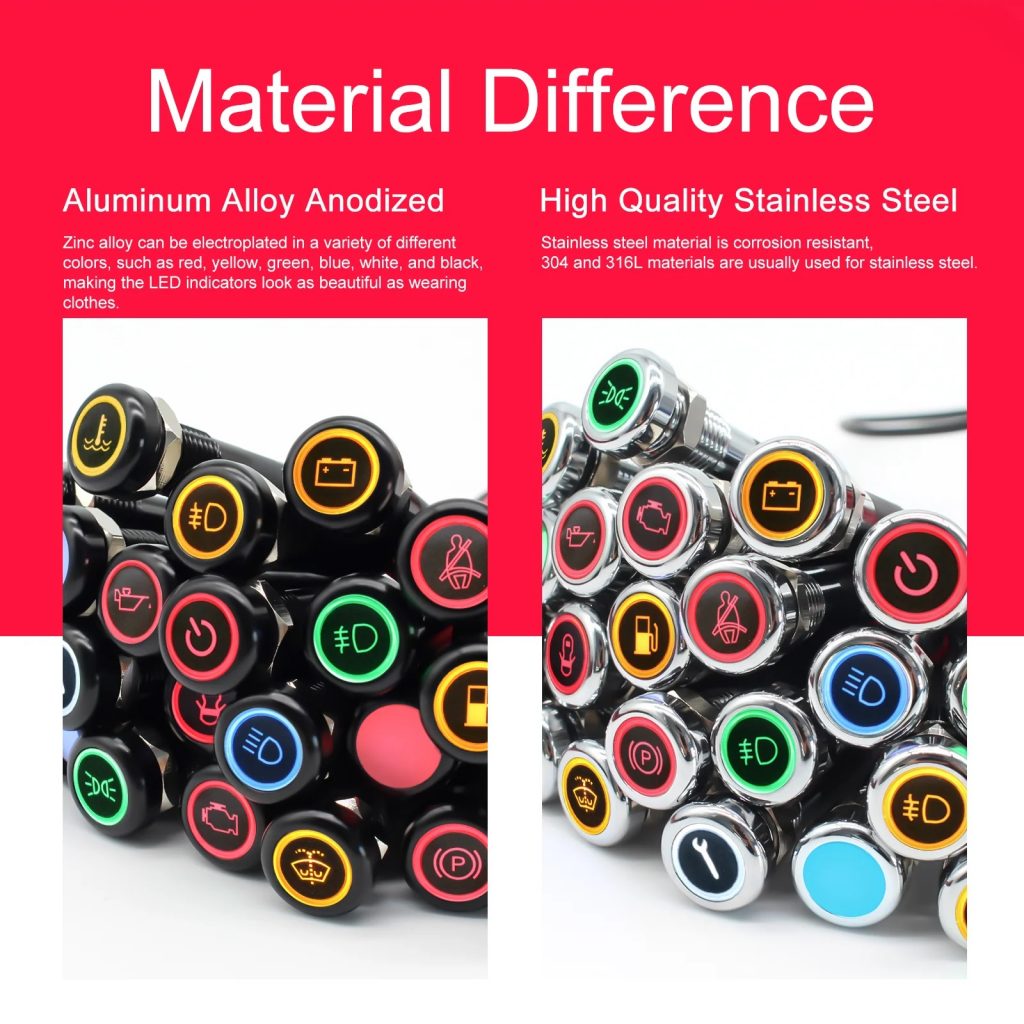

Material: a case – stainless steel 304    button – PC

Protection Degree:iP65

Color: ss original, black coating, or other customized the color

MOQ: 10 pcs each symbol. customize coating color need 100pcs

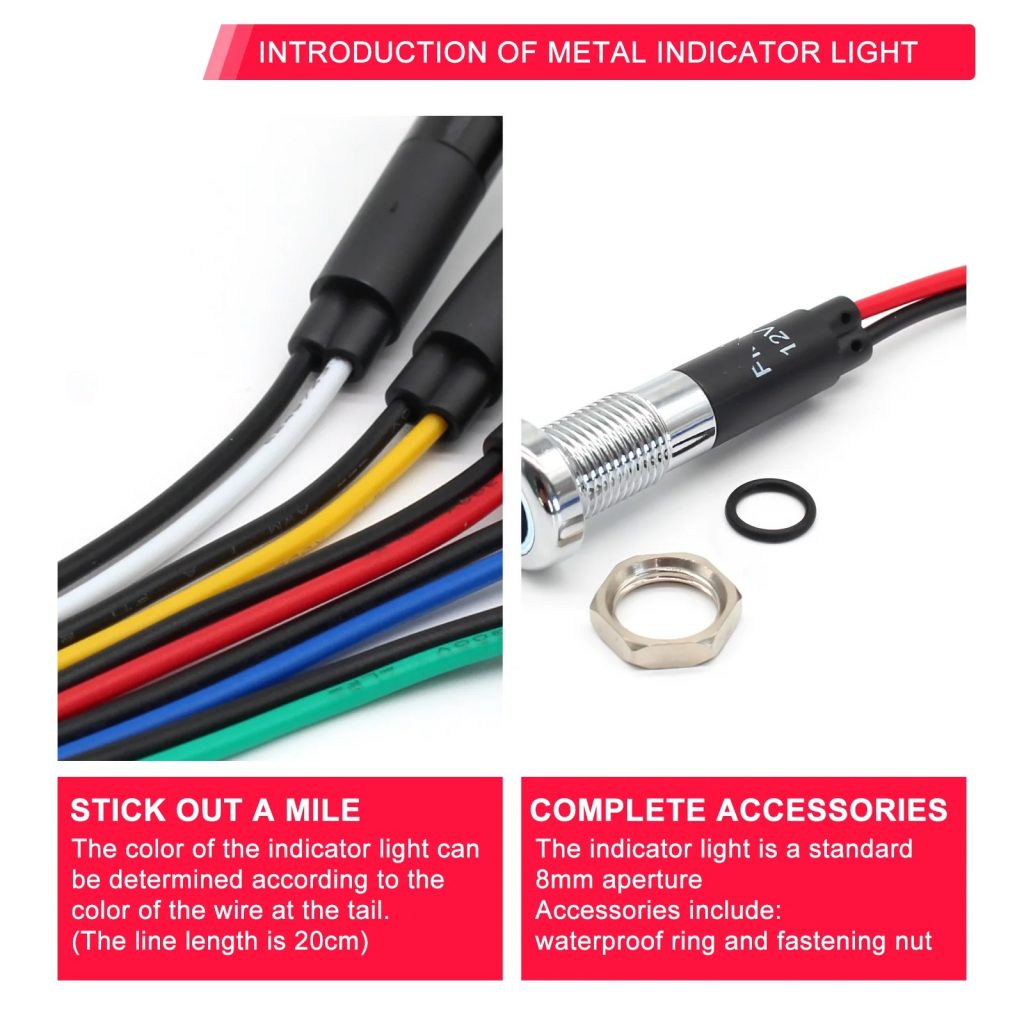

wire length: 20cm, or customize 8mm Customize symbol LED indicator

Product Item1M-8FW-C
Panel Mount Diameter8mm
Contact WayWith wire
Install Wayscrew terminal
Lamp TypeLED
Rated voltageAC/DC,3V、6V、12V、24V、220V、380V
Lamp Colorred yellow blue green white
Product DesignFlat head
Shell Materialbrass plated nickel/stainless steel
Base MaterialPA66 nylon
Terminal Materialbrass
ApplicationsCoffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc
Component namematerial
lensPC plastic
Metal bodyH59 brass or 204 stainless steel
wahserT10 Cold Rolled Steel
rubber ringSIL silica gel
nutH59 nickel plated brass
housingPA66 nylon
Light sourceLED
ResistorMetal film
CablePTFE AWG22 0.3mm²
plug-inC2680 RoHS brass
itemsparameter
Rated voltage3V-780V DC or AC
rated current20mA
rated power0.2W
Insulation and voltage resistance1800V
working life100000h
electrical life100000
cold-resistant-40℃
heat-resisting80℃

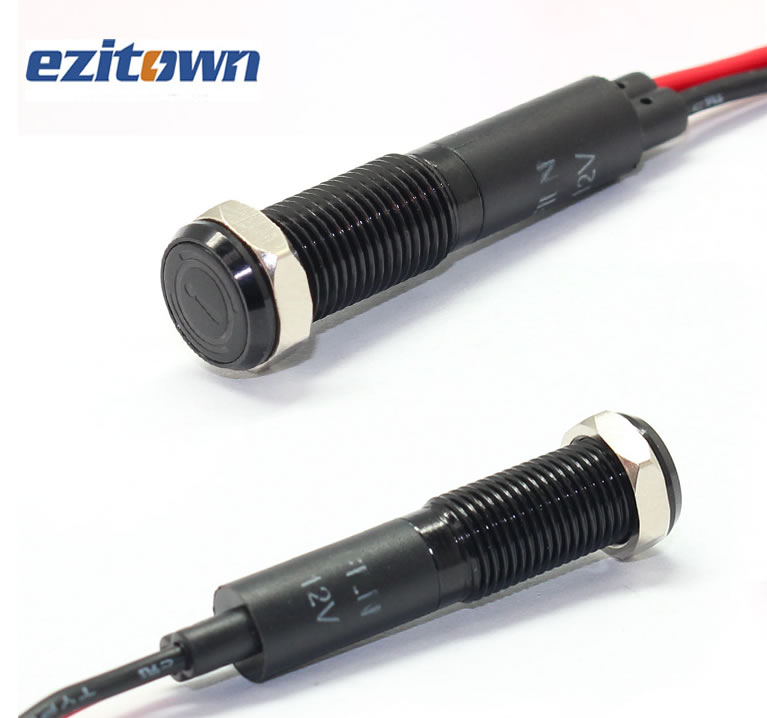

ezitown 8mm push button switch black case 12v

ezitown 8mm   black case 12v

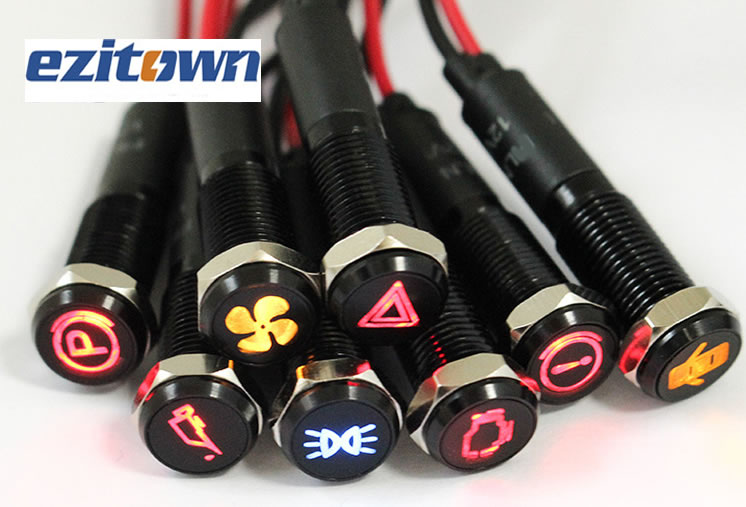

ezitown 8mm push button switch black case

ezitown 8mm   black case





ezitown 8mm push button switch customize symbol

ezitown 8mm   customize symbol



ezitown 8mm push button switch customize symbols

ezitown 8mm  customize symbols

8mm Customize symbol LED indicator  12v DC 2A
