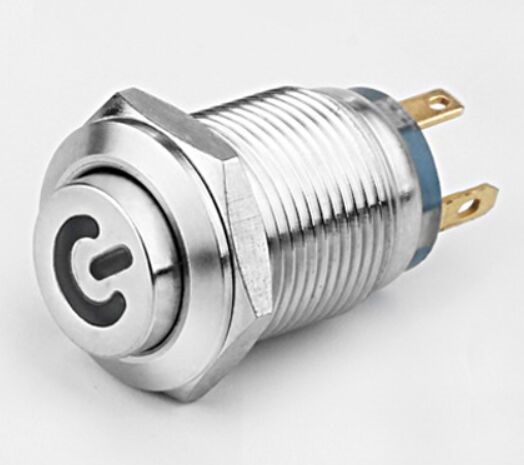

12-D8 12mm 3A Power illuminated Latching Self lock 1NO1NC High IP68 push button
Item : 12-D8
Item : 12-D8
Details : ROHS compliant
3 years Quality Guarantee
Usage:Bank,food factory,slaughter,bakery,washing factory,chemistry factory,mine mill and so on.
Ezitown produce own brand metal switch, and also agent of eao switch
pushbutton switch,metal switch,anti vandal switch,vandal resistant switch

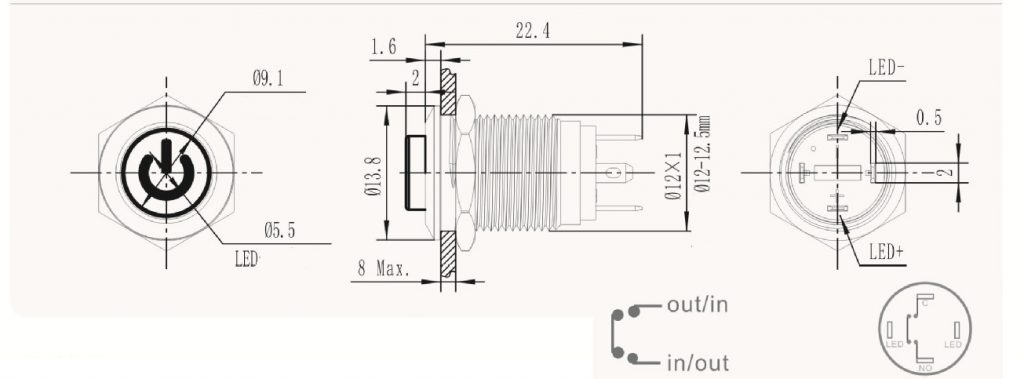

The screw thread we have M12X1 and M12X0.75 in option. please mention in order , default thread is M12x1.0mm
| Specifications | 12-D8 | |
| Tail configuration | Connection terminal(2.0*0.5) | |
| Switch specifications | 3A/3V/12V/24V/36V DC | |
| Contact resistance | <50mΩ | |
| Insulation resistance | <1000MΩ | |
| Dielectric intensity | 2000VAC | |
| Ambient temperature | -20℃~+55℃ | |
| Mechanical life | 500,000 cycles | |
| Electrical life | 50,000 cycles | |
| Panel thickness | 1~6mm | |
| Nut torque | 5~14Nm | |
| Operation pressure | About 5N | |
| Operation stroke | About 2.0mm | |
| Protection level | IP68,IK08 | |
| Material | Contact | Silver alloy |
| Button | Nickel plated brass/stainless steel | |
| Enclosure | Nickel plated brass/stainless steel | |
| Base | PA66 | |
| LED Parameter | LED type | Ring/Dot/Power llluminated(LED) |
| Rated voltage | 3V/6V/12V/24V/110V/220V | |
| LED color | Red,Orange,Yellow,Green,Bule,White | |
| LED life | 40000hours | |
